BAE 1066DL module for 500 series

$2,195.00

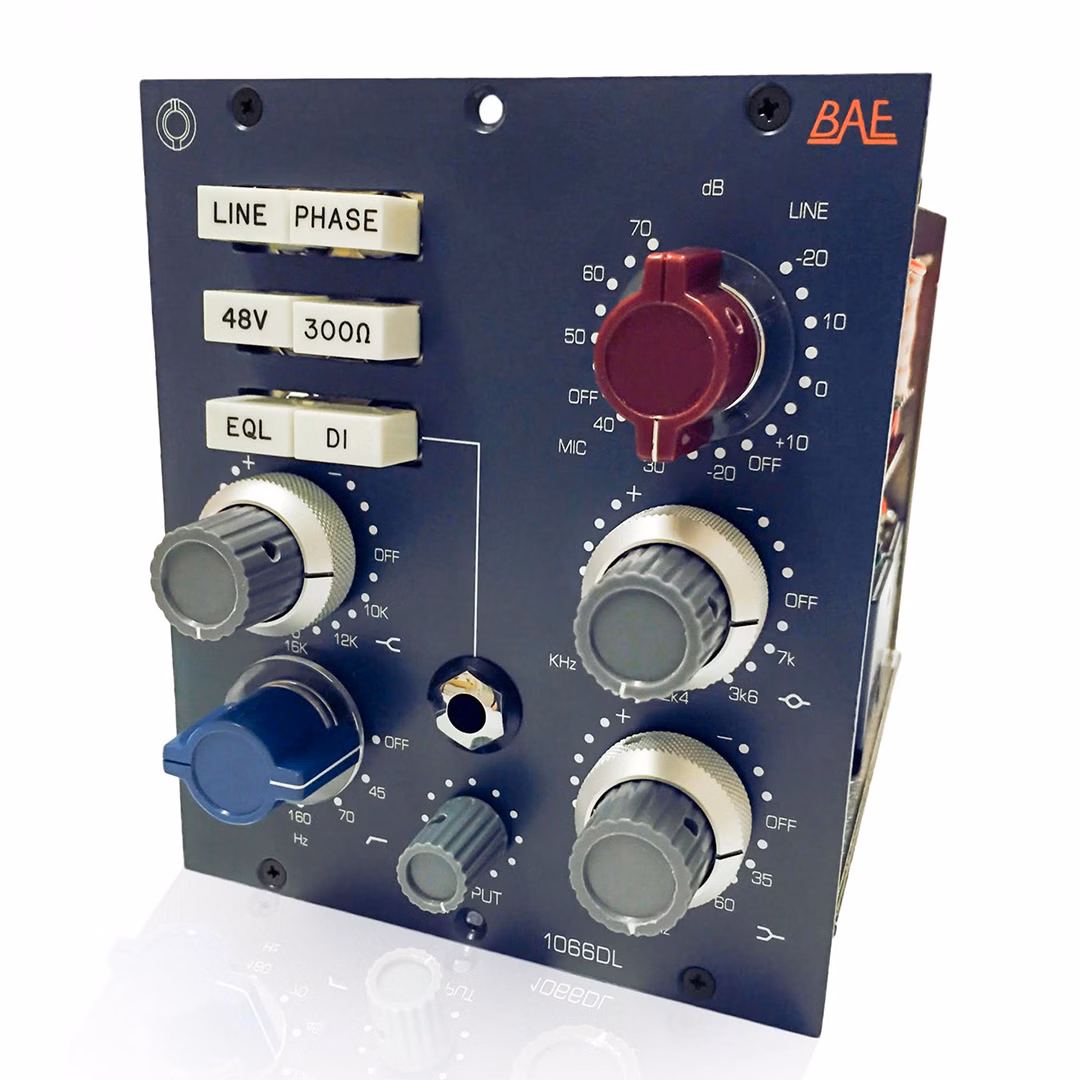

BAE 1066DL 500 Series Module

The new 1066DL is based on the classic 1066, which features the same mic-line pre-amplification stage as the 1073, but features different frequency selections in its EQ for a whole new sonic palette. The available frequencies on the 1066 are especially well suited to guitar applications because of its unique midrange.

The 1066DL is completely hand-wired using Carnhill (St. Ives) transformers and has the same mic-line pre-amp as the 1073, with the exception that the 1066DL adds a few different frequencies to your pallet.

This unit is popular among guitarists for having a unique mid-range. The original 1066 only had a 10k shelving but this unit offers additional frequencies: 10k Hz, 12k Hz, 16k Hz, 20k Hz and 24k Hz.

  • High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz.
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.
  • Mid Range: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.
  • EQ Button: Switches the equaliser on or off
  • Phase Button: 180°
  • Frequency Response: 10Hz to -3dB at 55kHz
  • 3 Band Equaliser
    • HF: +/-16dB fixed frequency shelving at 10kHz, 12kHz, 16kHz, 20kHz and 24kHz
    • LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
    • MF: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
  • High Pass Filter: 45Hz, 70Hz, 160Hz & 360Hz
  • Mic Input Impedance: ≈1200/300 ohms
  • Line Input Impedance: 10k ohms
  • DI Input Impedance: ≈150k ohms
  • Output Impedance: 65 ohms
  • Common Mode Rejection Ratio: 100dB min @ 60Hz
  • Maximum Output Level: +27.4 dBu @ 600Ω
  • Power Requirements: 115/230 VAC, 28W
  • Gain dB: 0 to 80 dB
  • Equivalent Input Noise: -110 dBu; Unweighted 300kHz Bandwidth
  • Weight: 6 LBS / 2.72 KG
  • Dimensions in Inches: 45 mm W x 8.75 inches H x 10.5 inches D
