ADAM Audio T7V

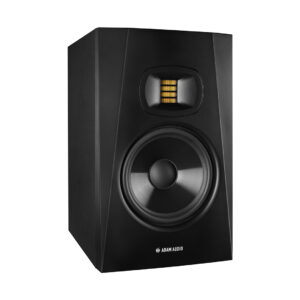

The T7V is a two-way studio monitor designed for vertical use in a nearfield application.

The T7V features a 7” woofer that provides bass extension down to 39 Hz, while the U-ART tweeter’s diaphragm offers pristine and extended high-frequency response up to 25 kHz – virtually unheard of in monitors in this price range. The U-ART tweeter is fitted to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series studio monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot, freeing you from being glued to a rigid mix position while working.

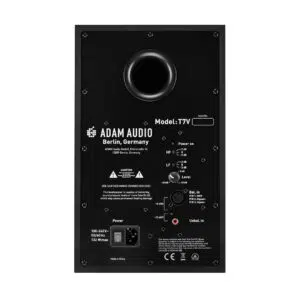

On the rear side of the T7V’s beveled cabinet, a rear-firing bass reflex port joins a sturdy metal backplate that houses the analog input connections. The U-ART tweeter is powered by a 20 W Class-D amp, while a 50 W Class-D amp drives the woofer. These powerhouses yield an impressive maximum of 110 dB SPL per pair.

The wide frequency response, high dynamic range, excellent transient response, wide sweet spot, and small footprint make the T7V perfectly suited for use in small control rooms for music production, video post-production, and broadcast production – an ideal fit for modest budgets that many facilities need to work with.

The ADAM Audio T10S subwoofer is the perfect match to complement the T7V, extending the monitoring capabilities in the bottom end.

Key Features

• U-ART 1.9” Accelerated Ribbon Tweeter with HPS Waveguide
• Polypropylene 7” woofer and rear-firing bass-reflex port
• Total RMS Amp. Power: 70 W
• Frequency Response: 39 Hz – 25 kHz (-6 dB)
• Max. SPL Per Pair at 1 m: ≥110 dB
