AEA Snaqbox V2 Two-Channel 500 Series Chassis

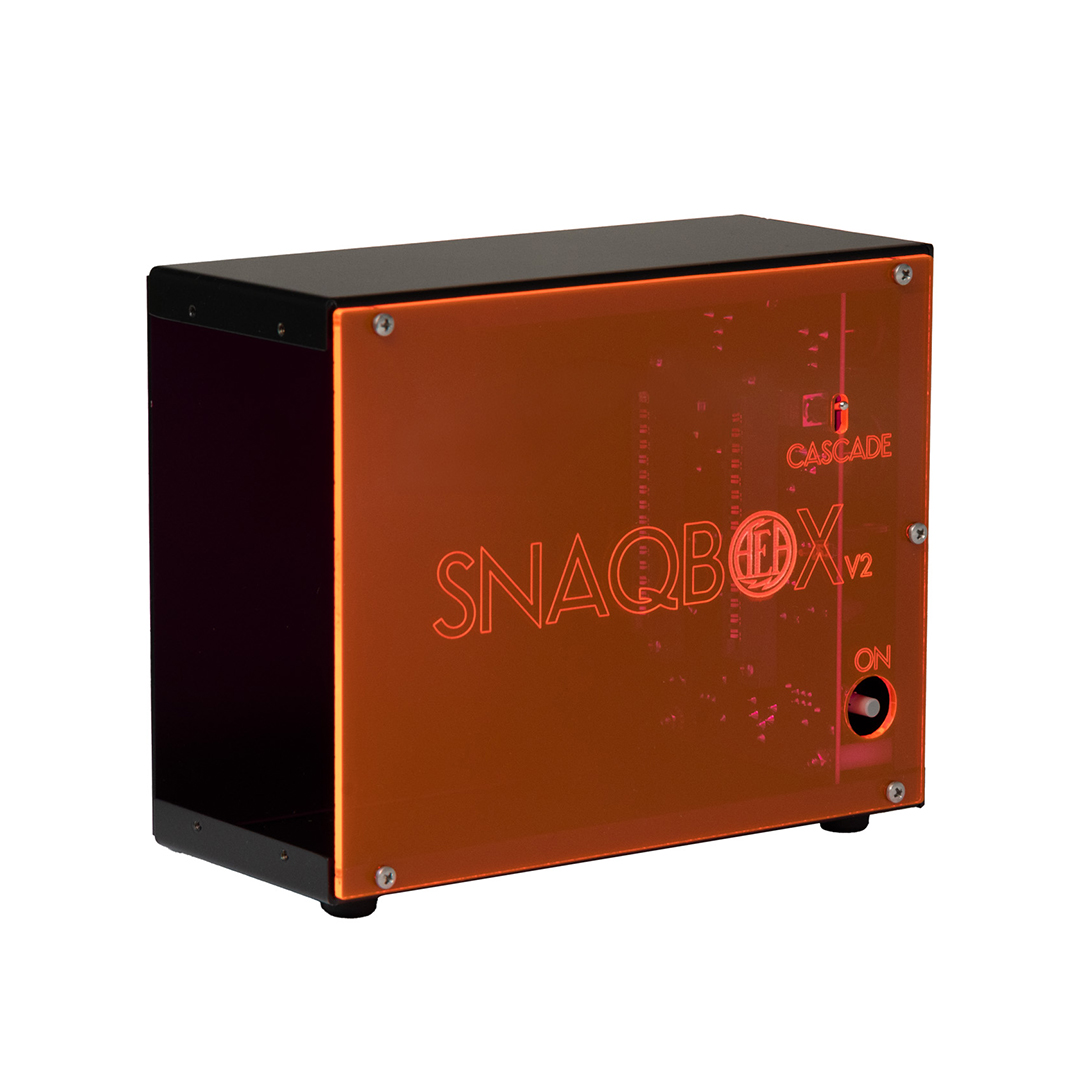

The AEA Snaqbox V2 is a transparent, two-channel 500-series chassis updated for 2026 with increased power delivery of up to 500mA per unit, ensuring compatibility with the vast majority of 500-series modules on the market. The steel chassis is housed in a signature acrylic sideplate—available in clear or fluorescent orange—with durable rubber bumpers on the bottom and Neutrik XLR connectors throughout. Power is supplied via an external switching power supply to keep switching noise isolated from the audio signal path. A Cascade switch internally routes the audio output of Channel 1 to the input of Channel 2 for serial processing on a single source, while still maintaining the Channel 1 output—providing simultaneous dry and processed outputs. V2 units feature “V2” laser etching on the acrylic sideplate.

Key Features

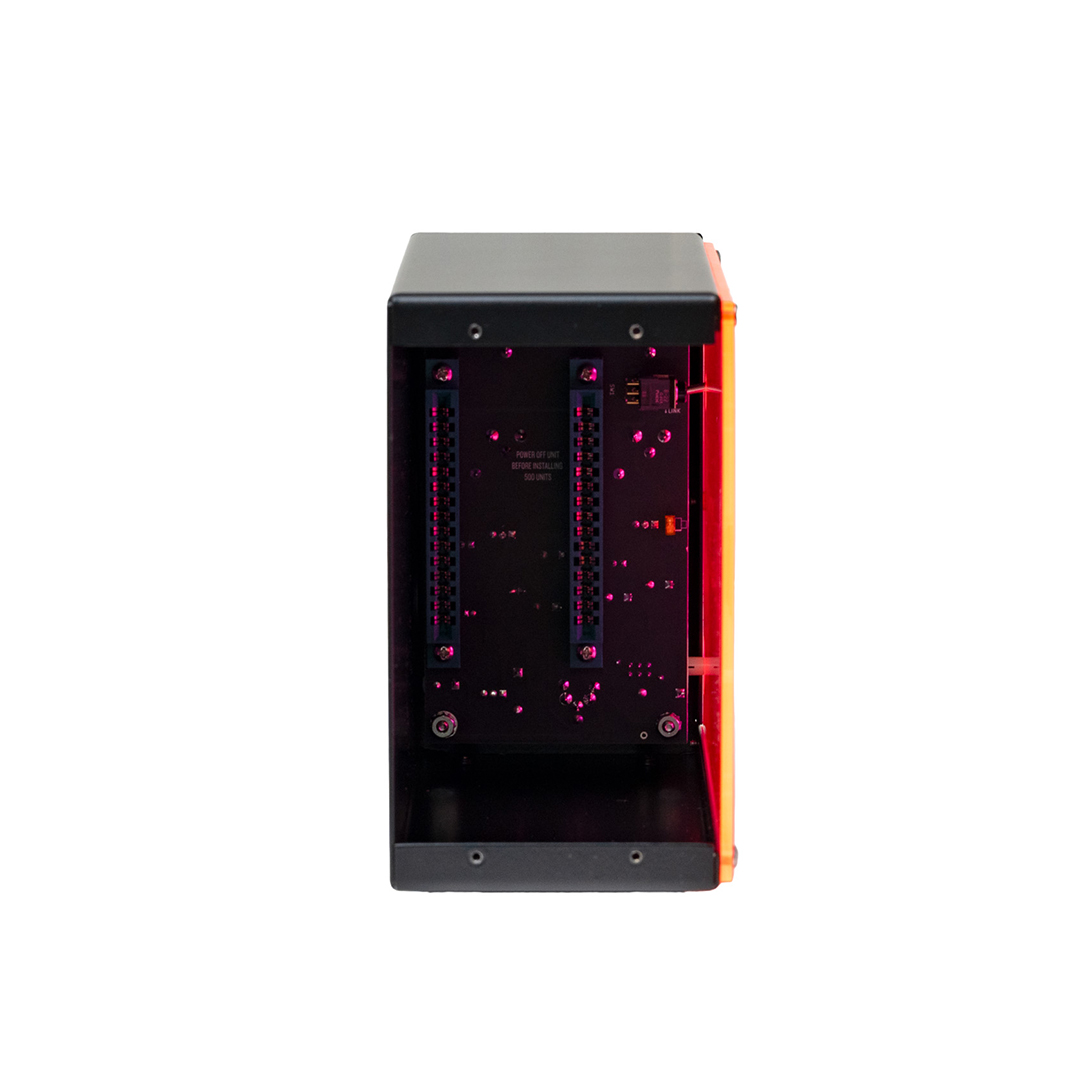

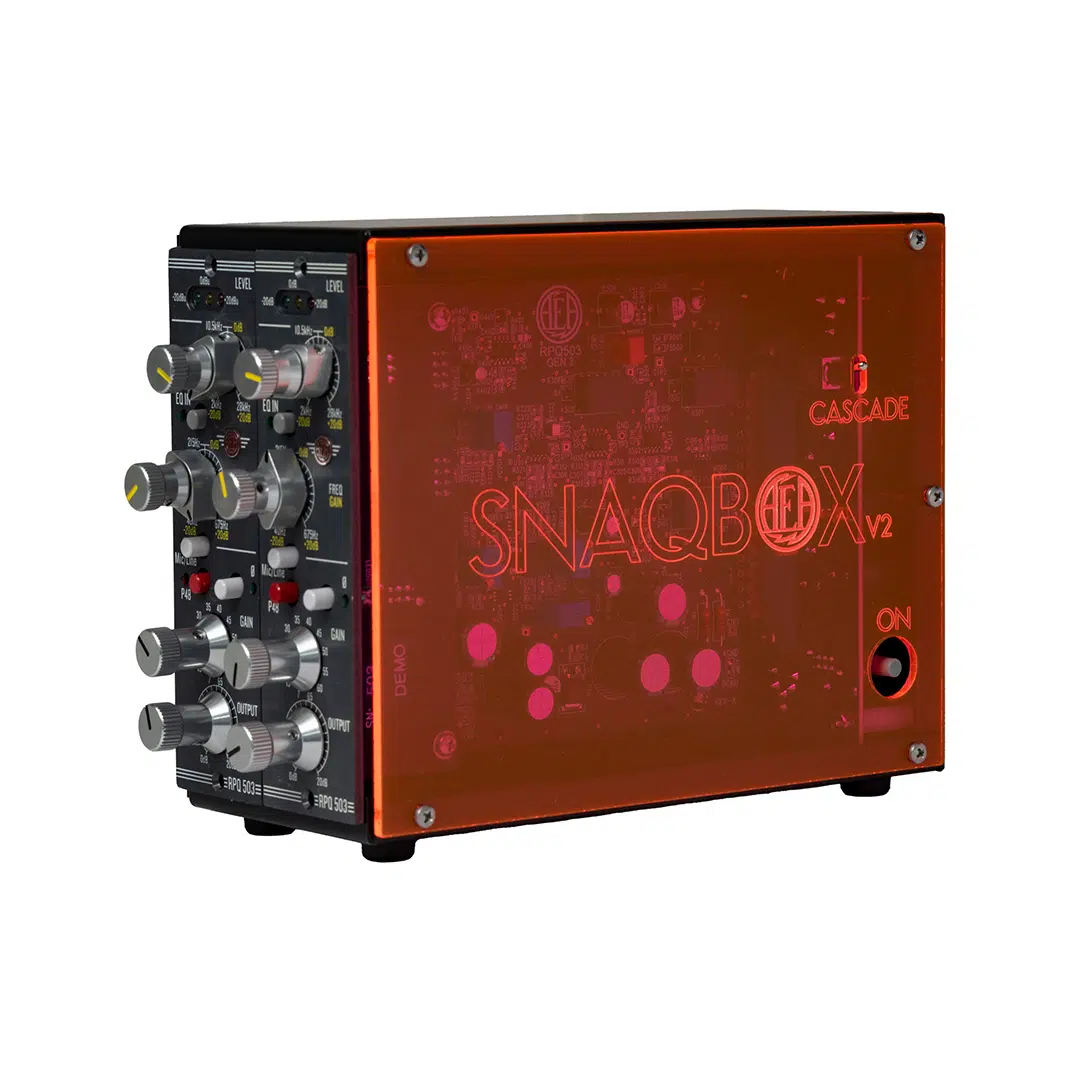

• Two-channel 500-series chassis — accepts two standard 500-series modules; V2 supports up to 500mA per unit for broad module compatibility

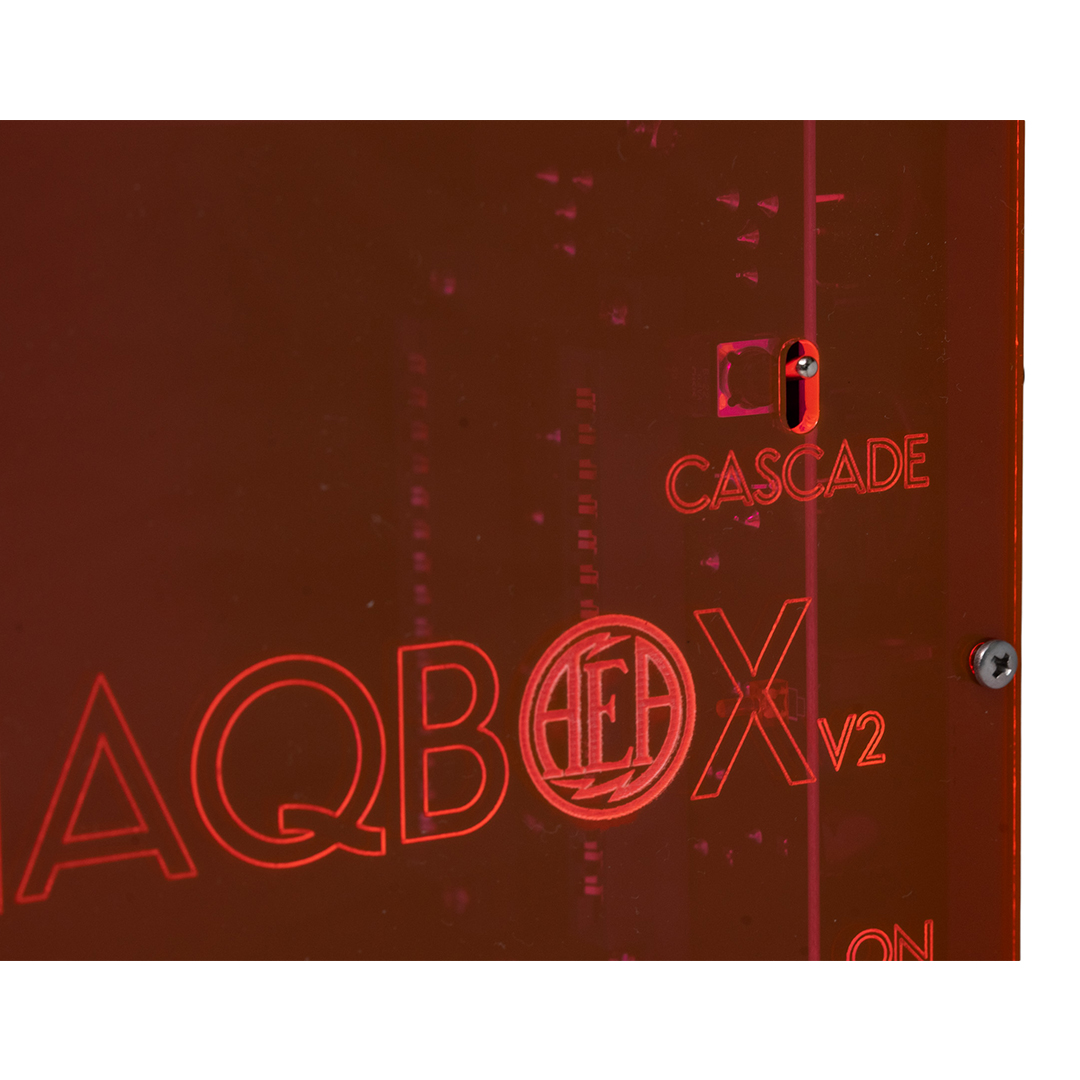

• Cascade switch — internally routes Channel 1 output to Channel 2 input for serial processing on a mono signal; Channel 1 output remains active for simultaneous dry and wet outputs
• External switching power supply — keeps switching noise away from the chassis and audio signal path
• Neutrik XLR I/O — all XLR connectors are Neutrik brand

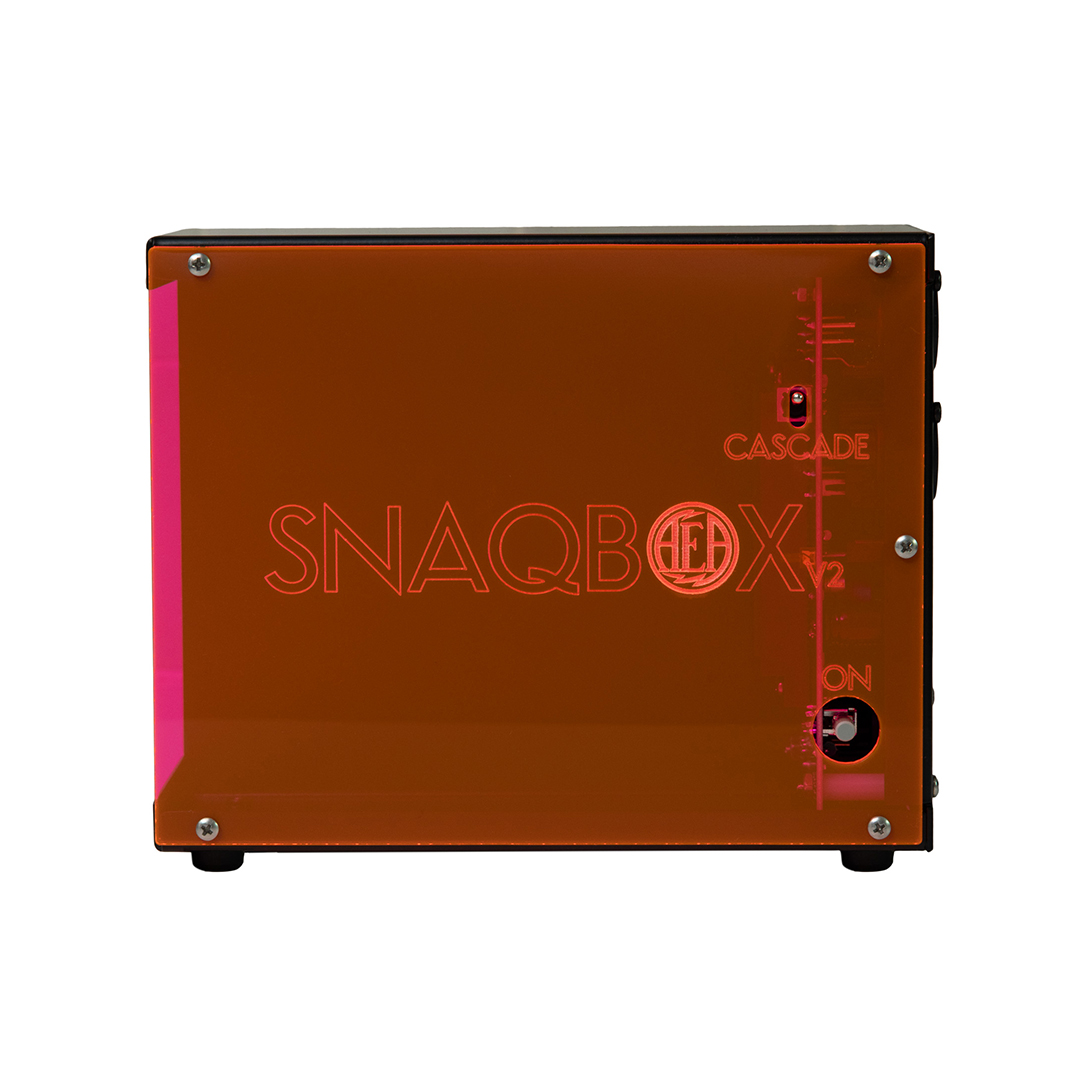

• Acrylic sideplate — available in clear or fluorescent orange; V2 units feature laser-etched “V2” identification
• Steel chassis with rubber bumpers — durable construction with non-slip rubber feet on the bottom
• Includes five 1/4 in. flathead 4-40 screws — for securing modules
• Made in the USA

Specifications

• Channels: 2 (500-series)
• Power (per unit): ±16V, 500mA max
• Phantom Power (per slot): +48V, 13mA

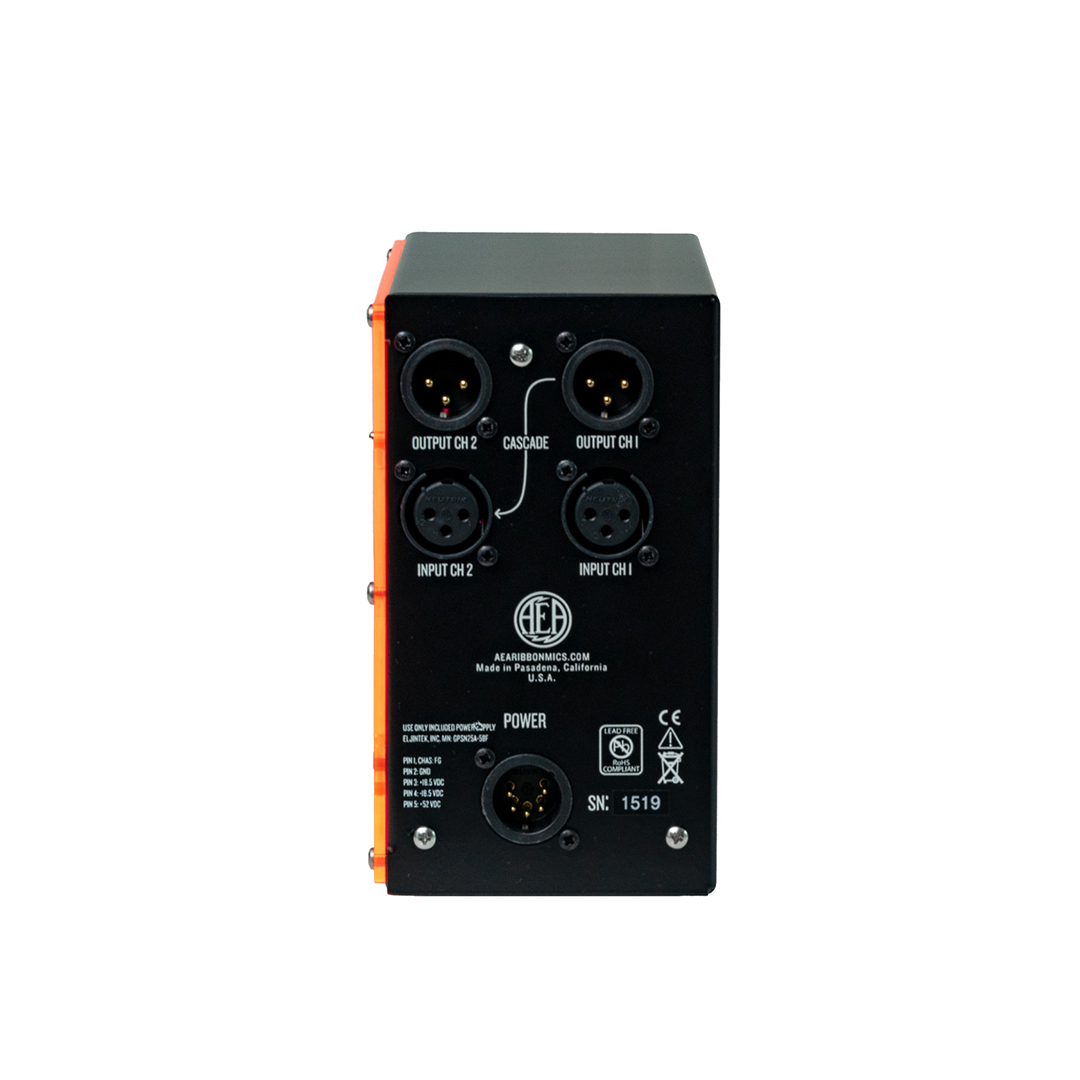

• Connectors: Neutrik XLR I/O
• Sideplate Options: Clear acrylic or fluorescent orange acrylic
• Dimensions: 7.4 in. L × 3.3 in. W × 5.9 in. H
• Unit Weight: 2.2 lbs (998 g)
• Shipping Weight: 4.6 lbs (2.1 kg)
• Chassis Material: Steel
• Country of Origin: USA

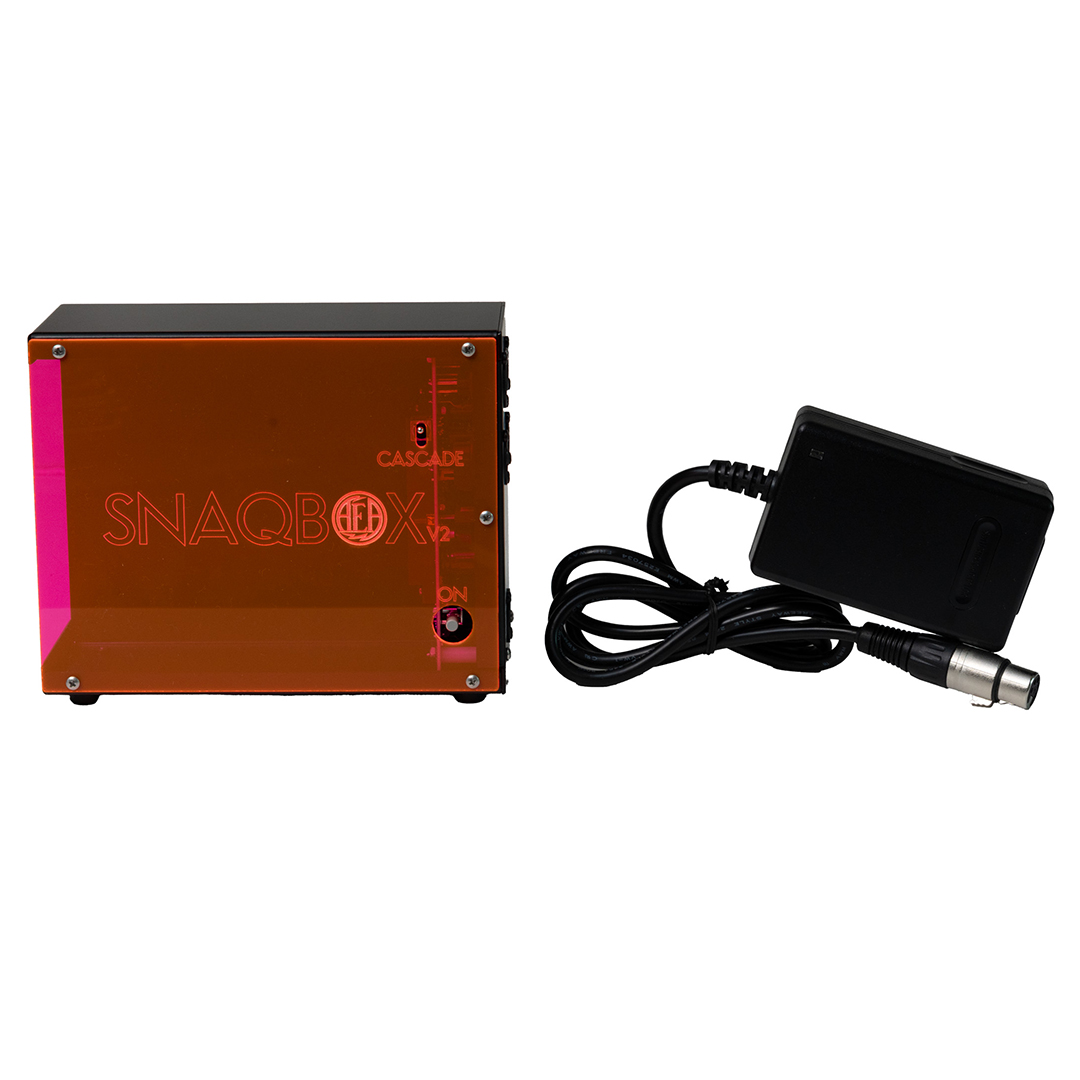

• Includes: External switching power supply, five 1/4 in. flathead 4-40 screws
