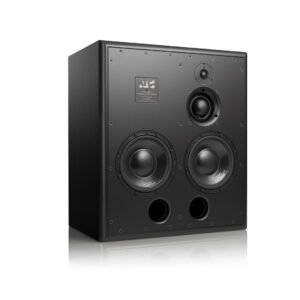

The ATC SCM110A Pro is engineered to deliver exceptional audio performance with its advanced driver technology and robust amplification system. Featuring the ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter, twin full “SL” spec 9˝/234mm bass drivers, and the renowned ATC 75mm “Super Dome” mid driver, this active monitor ensures precise and accurate sound reproduction. The on-board ATC grounded source 350W Tri-amp pack provides ample power for demanding studio environments.

Key Features

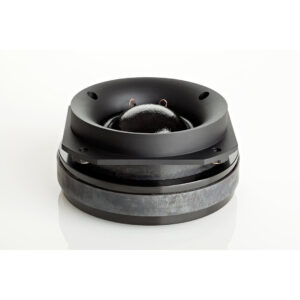

  • ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter

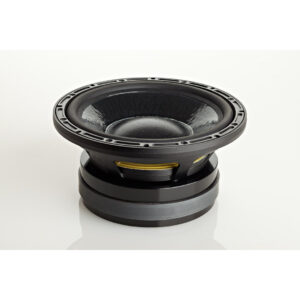

  • Twin Full “SL” Spec 9˝/234mm Bass Drivers
  • ATC 75mm “Super Dome” Mid Driver
  • On-Board ATC Grounded Source 350W Tri-Amp Pack
  • LF Contour Control
  • Clip Indication
  • 6-Year Warranty
  • Drivers: HF 1″/25mm, Mid 3″/75mm, LF 2x 9″/234mm
  • Amplitude Linearity (±2dB): 50Hz-17kHz
  • Cut-off Frequencies (-6dB, free-standing): 30Hz, 25kHz
  • Horizontal Dispersion: ±80°, Coherent
  • Vertical Dispersion: ±10°, Coherent
  • Max. Continuous SPL (1 meter): 115dB
  • Crossover Frequencies: 380Hz, 3.5kHz
  • Audio Input: Rear panel mounted female XLR (pin 2 +)
  • Input Sensitivity: 1V
  • Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
  • Input Impedance: Balanced > 10kΩ
  • Amplifier Output: Bass 200W, Mid 100W, High 50W
  • Filters: Even Order Critically Damped
  • Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
  • Front Panel Indicators: Power On indicator, Gain Reduction warning
  • LF EQ: 0dB to +6dB @ 40Hz (continuously variable via rear panel trimmer)
  • Dimensions (HxWxD): 715 x 625 x 420mm (28.2˝ x 24.5˝ x 16.5˝). Depth with amplifier at rear adds 3˝
  • Weight: 73kg / 160.6lbs
