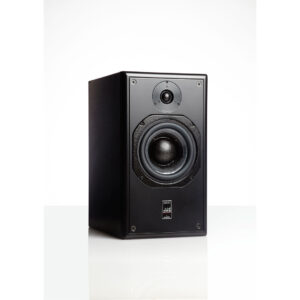

ATC SCM20A Pro Mk2

Compact very high performance 2-way studio monitor ideally suited to:

  • Critical near-field listening applications in all control rooms
  • LCR surround monitoring in small-to-medium control rooms
  • Surround channels in medium-to-large control rooms

The SCM20A Pro Mk2 features a proprietary ATC 150mm/6” Super Linear Mid/Bass Driver and a proprietary ATC 25mm/1” S-Spec Tweeter. It also includes a discrete MOSFET class A/B bi-amp pack with 200W/50W continuous power output.

Key Features

  • Proprietary ATC 150mm/6” Super Linear Mid/Bass Driver
  • Proprietary ATC 25mm/1” S-Spec Tweeter
  • Discrete MOSFET Class A/B Bi-Amp Pack: 200W/50W continuous power output
  • Drive unit – Low Frequency (LF): 6.5”/150mm Super Linear with 75mm/3″ voice coil (SB75-150SL 8 Ohm)
  • Drive unit – High Frequency (HF): 1”/25mm dual suspension Soft Dome (SH25-76S 6 Ohm)
  • Amplitude Linearity (±2dB): 80Hz-20kHz
  • Cut-off Frequencies (-6dB, free-standing): 55Hz, 25kHz
  • Horizontal Dispersion: ±80°, Coherent
  • Vertical Dispersion: ±10°, Coherent
  • Max. Continuous SPL (1 meter): 108dB
  • Crossover Frequency: 2.1kHz

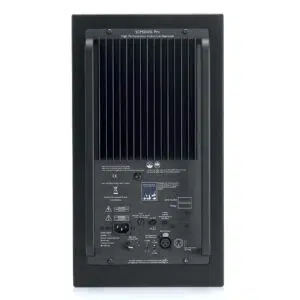

  • Audio Input: Rear panel mounted female XLR (pin 2 +)
  • Input Sensitivity: 1V
  • Input Sensitivity Trim: -12dB (1V – 4V)
  • Input Impedance: Balanced > 10kΩ
  • Amplifier Output: Bass 200W, High 50W
  • Filters: 2nd Order Critically Damped
  • Overload Protection: Active FET momentary gain reduction
  • Front Panel Indicators: Power On indicator, Gain Reduction warning
  • Dimensions (HxWxD): 450 x 250 x 392mm (17.72˝ x 9.84˝ x 15.43˝)
  • Weight: 23.4kg / 51.6lbs
