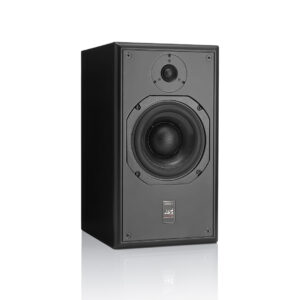

ATC SCM20P Pro Mk2

Compact very high performance passive 2-way studio monitor

Ideally suited to:

  • Critical near-field listening applications in all control rooms
  • LCR surround monitoring in small-to-medium control rooms
  • Surround channels in medium-to-large control rooms

The SCM20P Pro Mk2 features a proprietary ATC 150mm/6” Super Linear Mid/Bass Driver and a proprietary ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter. It also offers wide, even dispersion.

Key Features

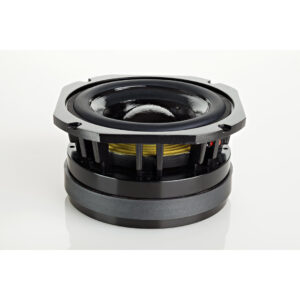

  • Proprietary ATC 150mm/6” Super Linear Mid/Bass Driver

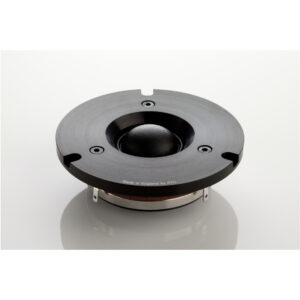

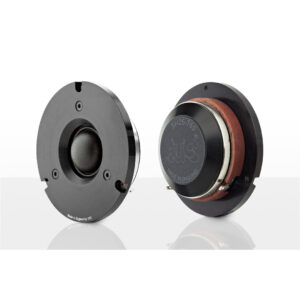

  • Proprietary ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter
  • Wide, Even Dispersion
  • Drivers: LF 6.5”/150mm Super Linear, HF 1”/25mm Dual-Suspension ‘S-Spec’ Tweeter
  • Amplitude Linearity: 80Hz – 20kHz (+/-2dB)
  • Cut-off Frequencies: 55Hz – 25kHz (-6dB freestanding)
  • Dispersion: +/-80° coherent horizontal, +/-10° coherent vertical
  • Maximum Continuous SPL: 108dB (per pair @ 1m)
  • Crossover Frequency: 2.5kHz
  • Recommended Amplifier Power: 75 to 300 Watts
  • Nominal Impedance: 8 Ohm

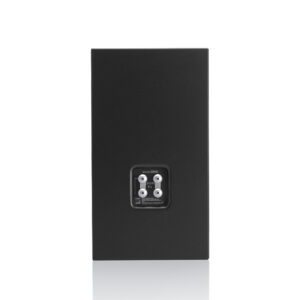

  • Connectors: 2 x Pairs Binding Posts/4mm Plugs – Bi-Wireable
  • Cabinet Dimensions (HxWxD): 450x250x294mm (17.7″x9.8″x11.6″)
  • Weight: 18kg/39.7lbs (per cabinet)
