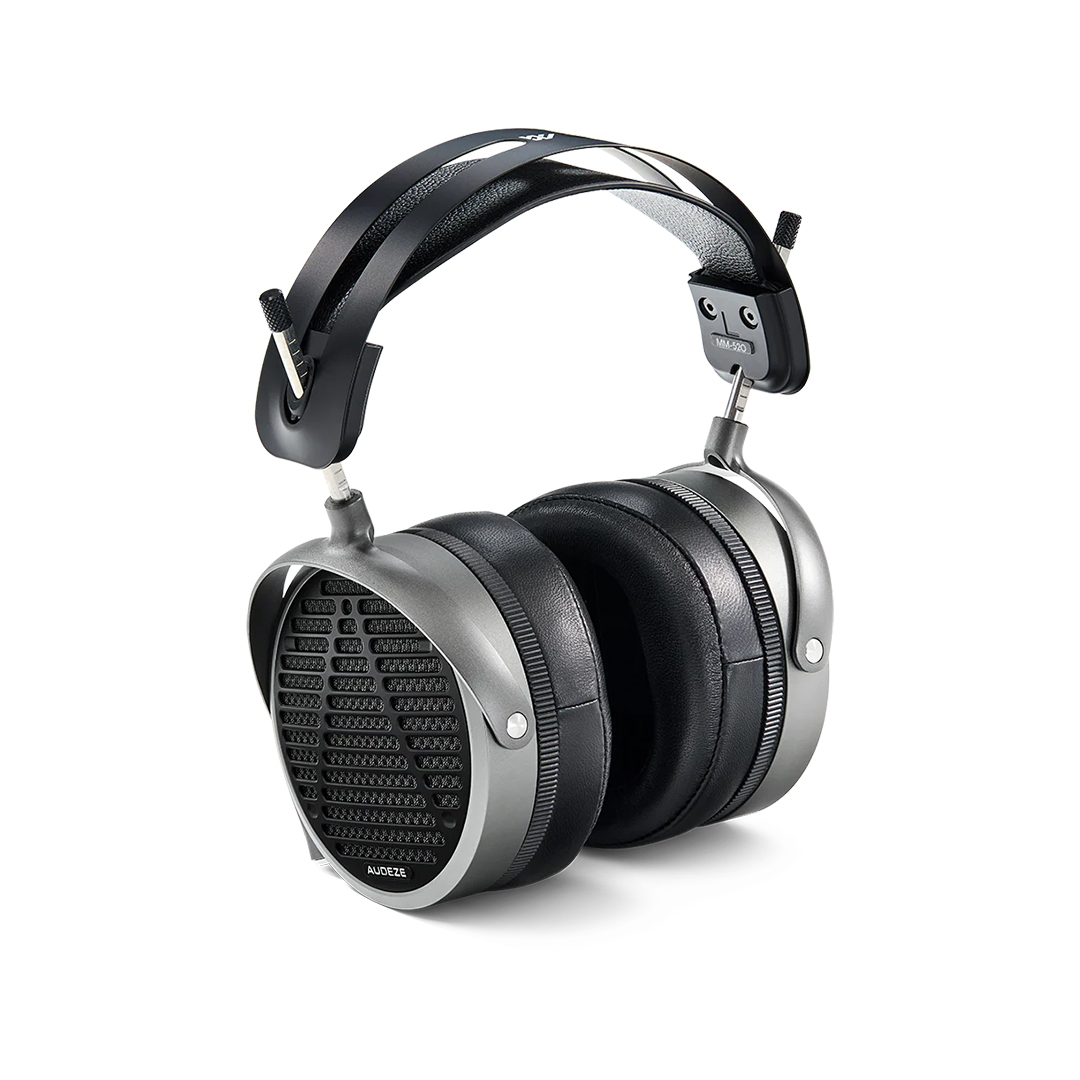

Audeze MM-520 Open-Back Professional Headphones

The Audeze MM-520 is an open-back planar magnetic headphone built specifically for studio mixing and recording, refined in Audeze’s Southern California workshop with the latest generation of acoustic technologies. At its core are 90mm planar magnetic drivers featuring SLAM technology for tighter, deeper low-end definition and precise midrange expression — the kind of accuracy professional engineers need when decisions have to translate out of the headphone and into the room. Audeze’s Fluxor magnet array, Fazor phase management, and Ultra-Thin Uniforce diaphragm work together to deliver a frequency response spanning 5Hz to 50kHz with less than 0.1% THD at 100dB SPL. Upgraded memory foam earpads with magnetic attachment make the MM-520 as practical as it is precise, purpose-built for marathon sessions in the studio or out in the field.

“The MM-520 is more focused overall. Everything translates a little easier — just more dialed in.” — Manny Marroquin, 18-Time Grammy-Winning Producer/Engineer

Key Features

• SLAM Technology: Proprietary acoustic management system engineered for low-end definition and midrange precision in planar magnetic drivers
• Fluxor Magnet Array: High-efficiency neodymium N50 magnet structure maximizes flux through the diaphragm for improved sensitivity and dynamics
• Fazor Phase Management: Manages and aligns acoustic phase to reduce distortion and improve imaging across the frequency range
• Ultra-Thin Uniforce Diaphragm: Even force distribution across the diaphragm surface for accurate, low-distortion transient reproduction
• Open-Back Design: Natural, spacious soundstage suited for critical listening, mixing, and reference monitoring applications

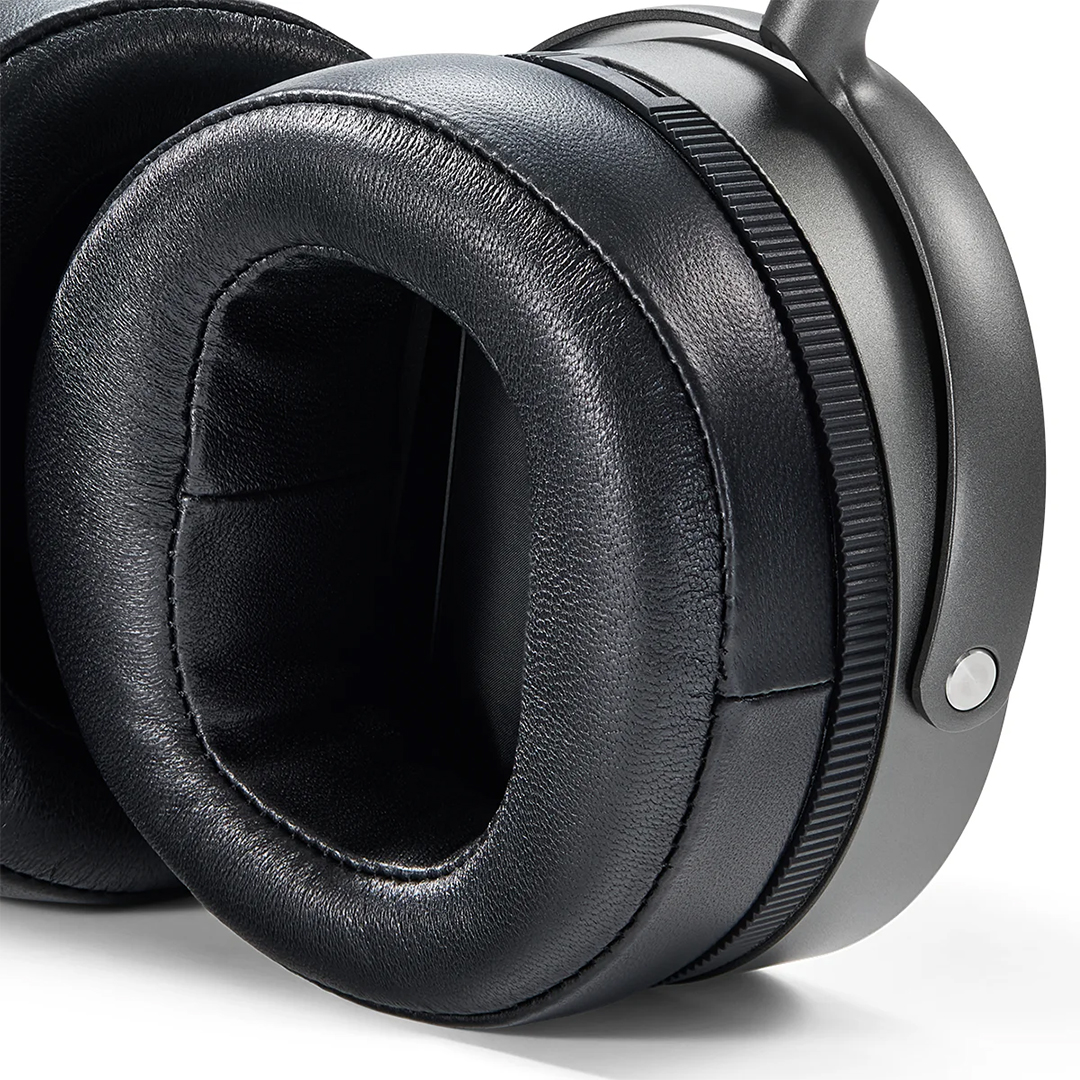

• Upgraded Memory Foam Earpads: Magnetic attachment for easy removal, cleaning, and maintenance; designed for extended wear comfort
• Wide Frequency Response: 5Hz–50kHz with less than 0.1% THD at 100dB SPL, 1kHz
• Package Includes: MM-520 headphone, 2.5m (8.2ft) cable, 3.5mm to 6.3mm adapter, standard travel case, MM-Series soft carry bag

Specifications

• Style: Over-ear (circumaural), open-back
• Transducer Type: Planar magnetic
• Transducer Size: 90mm
• Magnetic Structure: Fluxor magnet array
• Magnet Type: Neodymium N50
• Diaphragm: Ultra-Thin Uniforce
• Phase Management: Fazor
• Acoustic Management: SLAM

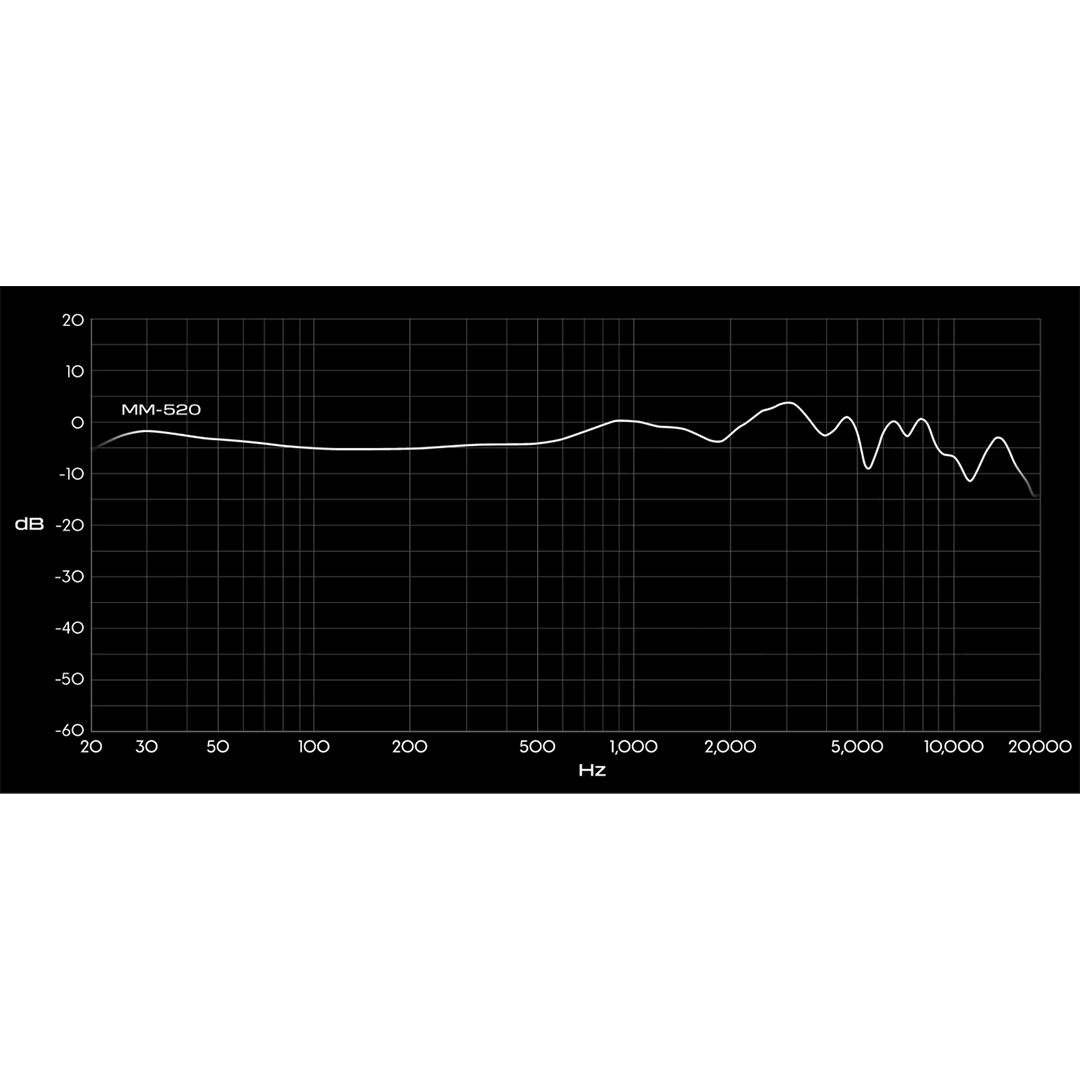

• Frequency Response: 5Hz–50kHz
• Impedance: 18 ohms
• Sensitivity: 102dB/1mW (Drum Reference Point)
• THD: <0.1% @ 100dB SPL, 1kHz
• Maximum SPL: >130dB
• Minimum Power Requirement: >100mW
• Maximum Power Handling: 5W RMS
• Weight: 1.22 lbs. (555g)
