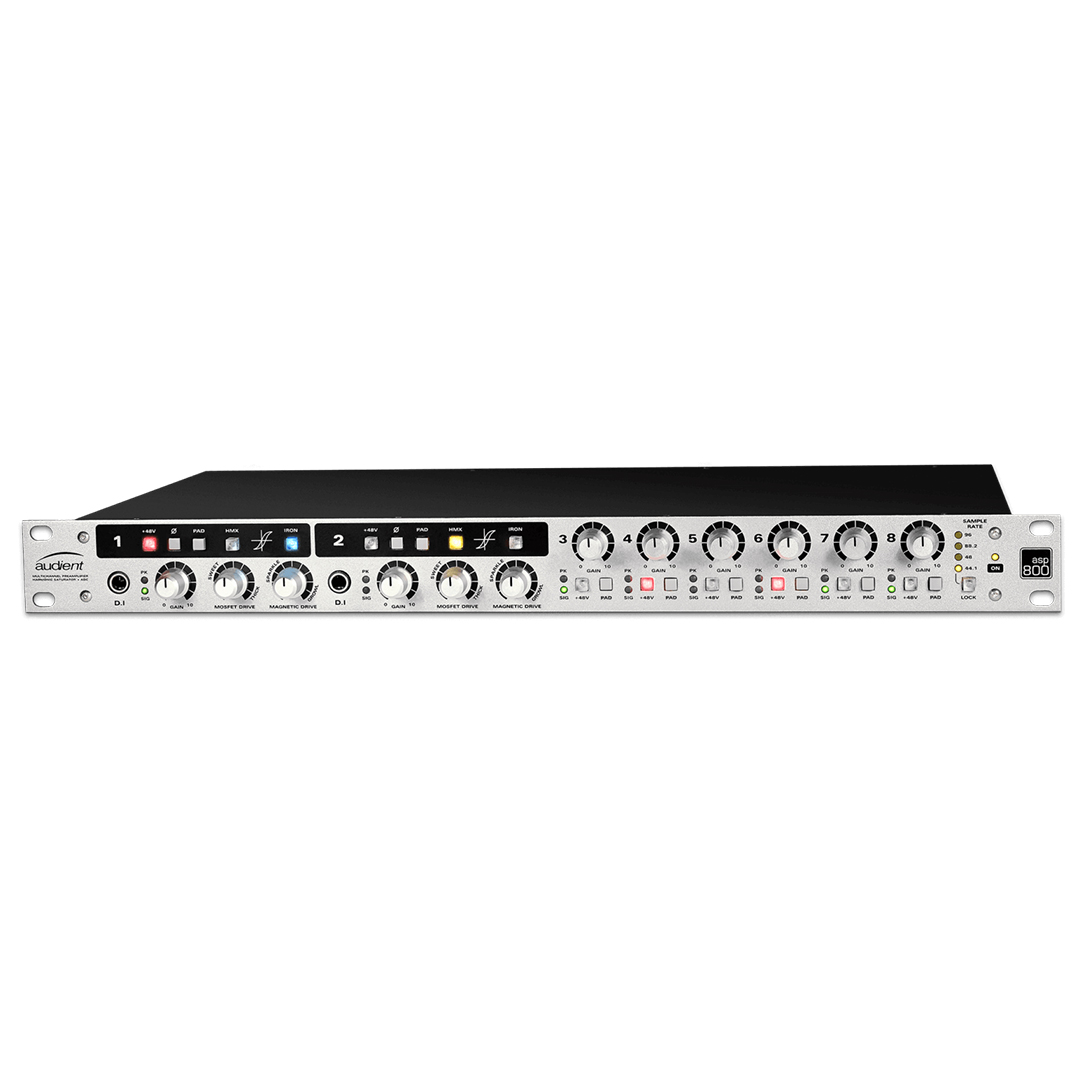

Audient ASP800 8-Channel Mic Preamp with HMX & IRON

The Audient ASP800 is an 8-channel mic preamp and ADAT expander designed to add professional-grade front-end quality to any audio interface. Eight Audient Console mic preamps—the same discrete circuit design found in the ASP8024-HE recording console—deliver ultra-low noise, low distortion, and classic analogue warmth across the full 60dB gain range. Two JFET instrument DI inputs handle guitar, bass, keyboard, and drum machine with the harmonic character of a classic valve amplifier input stage. Two Retro Channels add optional analogue tone via HMX harmonic saturation (discrete MOSFET asymmetrical distortion) and IRON transformer drive (custom British transformer with magnetic tape-style saturation), each controlled by a single knob that simultaneously shapes drive impedance, bass response, high-frequency damping, phase shift, and transient response.

Key Features

• 8 x Audient Console mic preamps — discrete circuit design from the ASP8024-HE console; ultra-low noise, low distortion with classic analogue warmth; 60dB gain range, phantom power, –10dB pad, and polarity reverse per channel
• ADAT output — connect to any ADAT-equipped interface to expand channel count; 8 channels of mic pre via a single optical connection
• 8 x balanced line outputs — for direct integration with consoles, converters, or patchbays

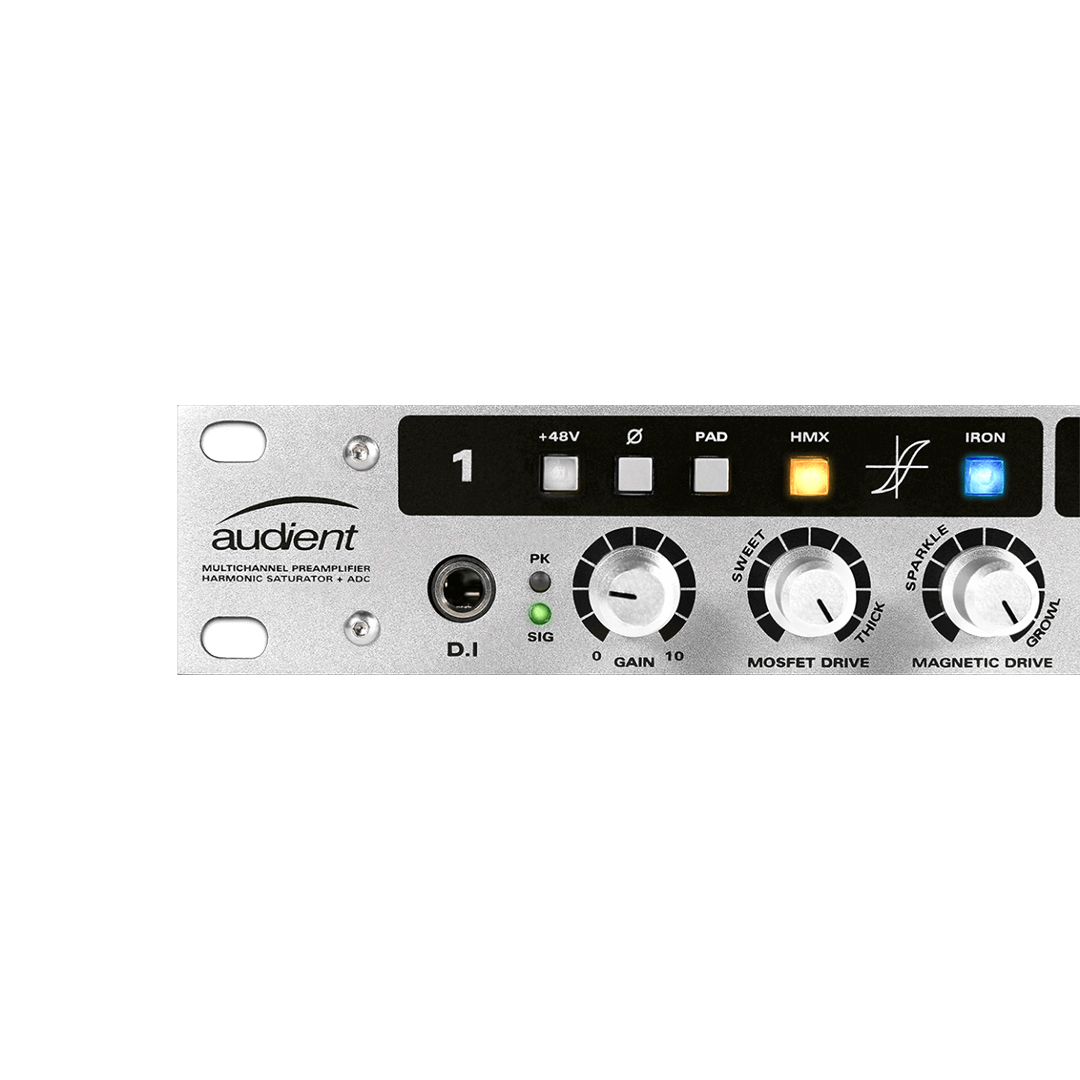

• HMX harmonic saturation (Retro Channel) — discrete MOSFET circuit produces asymmetrical harmonic distortion to add richness and body to the Audient mic preamp signal; inspired by 1960s tube designs
• IRON transformer drive (Retro Channel) — custom British transformer with high-voltage MOSFET drive network; adds magnetic tape-style saturation and the transient character of 1970s British recording; single control simultaneously shapes drive impedance, bass response, high-frequency damping, phase shift, magnetic saturation, and transient response
• 2 x JFET instrument DI inputs — designed to replicate the input stage of a classic valve amplifier; accepts guitar, bass, keyboard, and drum machine for immediate recording
• High-quality converters — captures fine detail and nuance across all 8 channels
• All-metal construction — hand-finished aluminium knobs and high-grade component selection; 1U rackmount form factor built for long-term studio use
• Bundled software — includes Cubase LE and Cubasis LE for iOS, plus industry-leading plugins and virtual instruments for immediate recording out of the box
• 3-year limited warranty

Specifications

• Mic Preamp Channels: 8 (Audient Console design)
• Gain Range: 60dB
• Phantom Power: +48V (per channel)
• Pad: –10dB (per channel)
• Polarity Reverse: Yes (per channel)

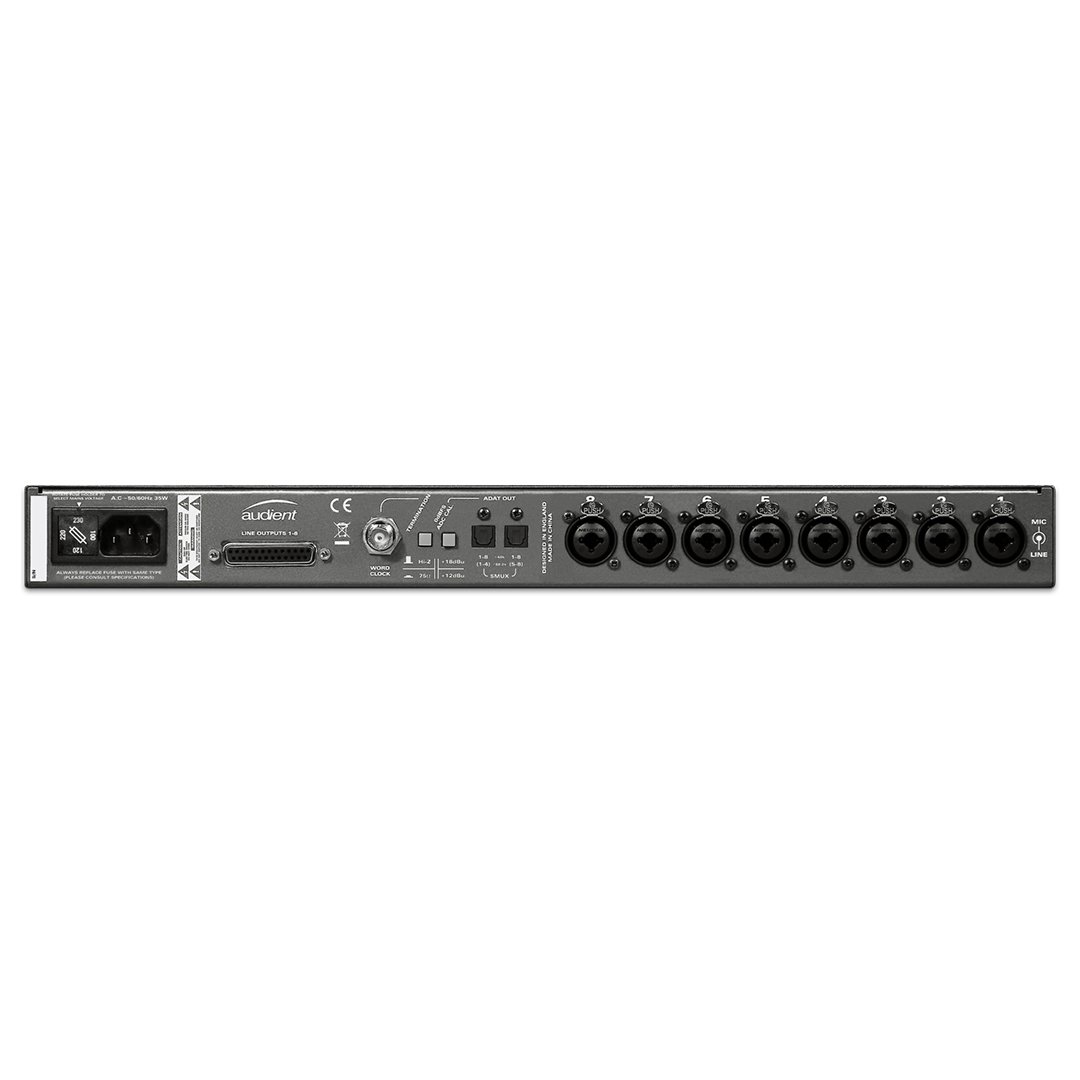

• Line Outputs: 8 × balanced
• ADAT Output: 8 channels
• Instrument DI Inputs: 2 × JFET
• Retro Channels: 2 (HMX harmonic saturation; IRON transformer drive)
• Format: 1U rackmount
• Construction: All-metal; hand-finished aluminium knobs
• Bundled Software: Cubase LE, Cubasis LE (iOS), plugins and virtual instruments
• Warranty: 3-year limited
