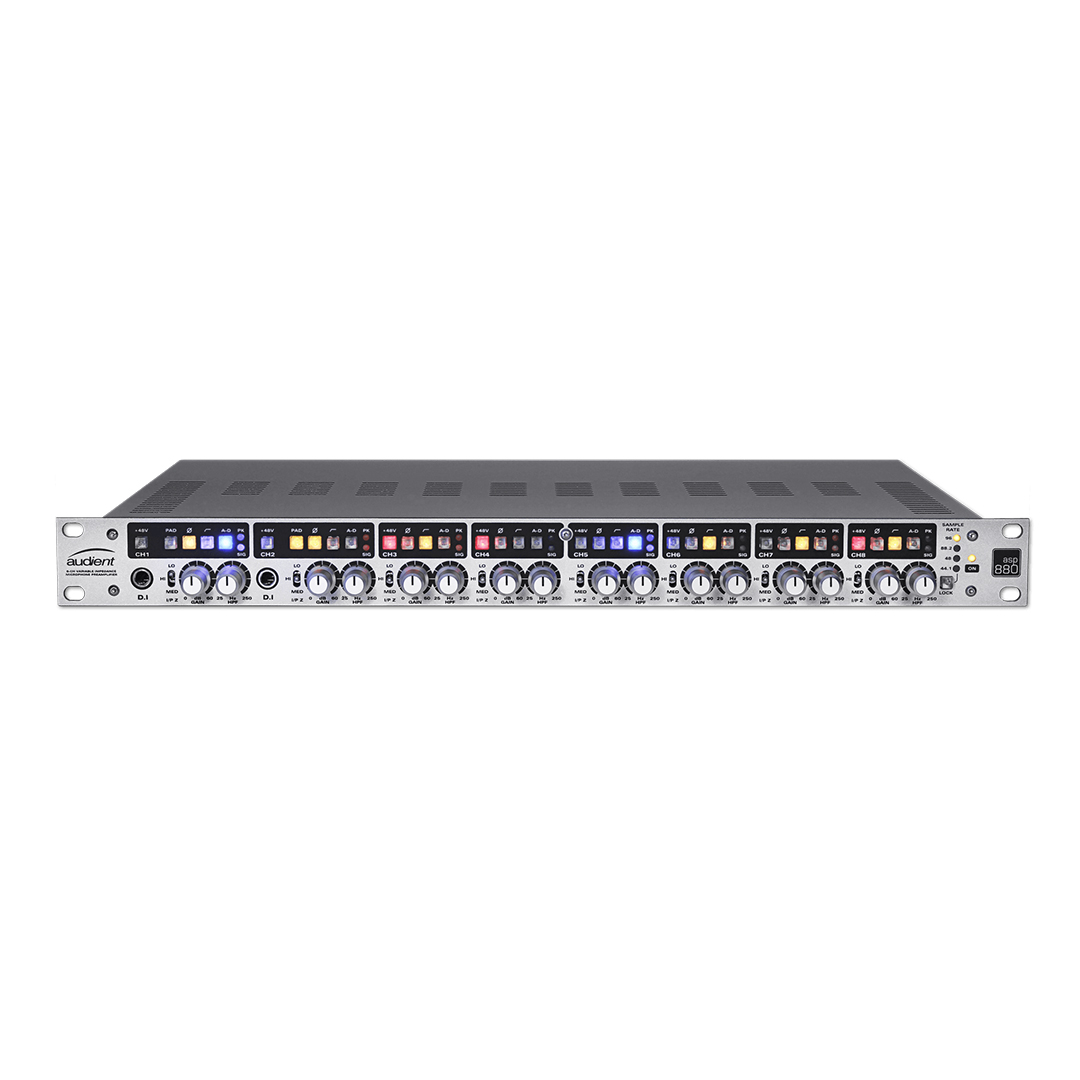

Audient ASP880 8-Channel Mic Preamp with ADC

The Audient ASP880 is an 8-channel mic preamp and multi-format digital expander that adds professional-grade conversion and front-end quality to any audio interface. Eight Audient Console mic preamps—the same discrete hybrid design found in the ASP8024-HE console—deliver ultra-low noise and low distortion with classic analogue warmth across the full 60dB gain range. Eight ADC insert points allow outboard EQ, compression, or other processing to be patched in before the analog-to-digital conversion stage, and the ASP880 can also operate as a standalone A/D converter by bypassing the mic preamps entirely. Variable impedance per channel enables ribbon mic optimization, and a variable high-pass filter (25Hz–250Hz) provides pre-conversion signal shaping. Digital output is available simultaneously over ADAT, AES, and S/PDIF.

Key Features

• 8 x Audient Console mic preamps — discrete hybrid design from the ASP8024-HE console; ultra-low noise, low distortion with classic analogue warmth; 60dB gain range, phantom power, –10dB pad, and polarity reverse per channel
• 8 x ADC insert points — patch outboard EQ, compression, or effects into the signal chain before analog-to-digital conversion; lets engineers record through favourite outboard gear directly to the converter
• Standalone A/D converter mode — bypass the mic preamps and use the ASP880 purely as an 8-channel ADC; feed line-level sources or external mic preamps directly into the converters
• ADAT, AES, and S/PDIF digital outputs — simultaneous multi-format digital output; connect to any ADAT-equipped interface to expand channel count by 8
• Variable impedance (per channel) — match the preamp impedance to ribbon microphones to retain the mic’s full punch and frequency response; also applicable to condenser and dynamic microphones
• Variable high-pass filter (per channel) — sweepable from 25Hz to 250Hz; removes unwanted low frequencies, controls proximity effect, and tightens low-end before conversion
• 2 x JFET instrument DI inputs — harmonically rich JFET circuit replicates the input stage of a classic valve amplifier; accepts guitar, bass, keyboard, and drum machine
• All-metal construction — hand-milled aluminium knobs; 1U rackmount form factor built for studio and touring use
• Bundled software — includes Cubase LE and Cubasis LE for iOS, plus industry-leading plugins and virtual instruments for immediate recording out of the box
• 3-year limited warranty

Specifications

• Mic Preamp Channels: 8 (Audient Console design)
• Gain Range: 60dB
• Phantom Power: +48V (per channel)
• Pad: –10dB (per channel)
• Polarity Reverse: Yes (per channel)
• ADC Insert Points: 8
• Instrument DI Inputs: 2 × JFET
• Variable Impedance: Yes (per channel)
• Variable HPF: 25Hz–250Hz (per channel)
• Digital Outputs: ADAT, AES, S/PDIF (simultaneous)
• Standalone ADC Mode: Yes
• Format: 1U rackmount
• Construction: All-metal; hand-milled aluminium knobs
• Bundled Software: Cubase LE, Cubasis LE (iOS), plugins and virtual instruments
• Warranty: 3-year limited
