Audient EVO 16 24-In/24-Out USB Audio Interface

The Audient EVO 16 is a 24-in/24-out USB audio interface built around eight EVO mic preamps with digitally controlled gain, 121dB dynamic range converters, and Audient’s Motion UI—a 240×240 TFT full-color LCD that displays real-time interface information without requiring a computer screen. Smartgain automatically analyzes and sets optimal gain levels across all 8 channels simultaneously in under 20 seconds, eliminating manual gain-setting during drum or band tracking sessions. Eight line outputs, two independent headphone amps (capable of driving headphones up to 600 Ohms), two JFET instrument inputs, and ADAT/S/PDIF optical I/O for up to 16 channels of digital expansion make the EVO 16 a capable centerpiece for studios taking on large-format sessions. A solid steel chassis with non-slip rubber feet works equally well on the desktop or in a rack with optional rack ears.

Key Features

• 8 EVO mic preamps — digitally controlled analog preamps with pin-point gain accuracy to the decibel; ultra-low distortion and noise; designed for clean, accurate, true-to-source recordings
• Smartgain — automatically sets optimal gain for all 8 channels simultaneously in under 20 seconds; advanced peak analysis algorithm handles drums, full band, and solo recording sessions without manual adjustment
• Motion UI — 240×240 TFT backlit full-color LCD screen displays hardware features, adjustments, and controls in real time; navigate and adjust the interface without switching focus to a computer screen
• 121dB dynamic range converters — high-performance AD/DA conversion for accurate, detailed audio across all channels
• 8 line outputs — for multiple speaker setups, outboard gear sends (compressors, FX units), or headphone amp distribution
• 2 independent headphone outputs — dedicated headphone amps capable of driving headphones up to 600 Ohms; suitable for demanding studio headphones
• 2 JFET instrument inputs — harmonically rich JFET circuit replicates the input stage of a classic valve amplifier; ideal for guitar, bass, and keys
• ADAT and S/PDIF optical I/O — supports up to 16 channels of digital expansion; pairs with external mic preamps to scale up for larger sessions
• Advanced monitor control — Alt monitor switching, Mono, and Talkback (uses any connected USB or built-in mic as talkback source, preserving mic preamp inputs for recording); F-button assignable to preferred function
• Audio loopback — ideal for content creators, podcasters, and streamers; routes audio sources internally for recording and broadcasting
• EVO Mixer software — configure inputs and outputs, set up low-latency artist headphone mixes, and manage routing from a single interface
• High-speed USB — ultra-low latency monitoring; rock-solid driver performance for macOS and Windows

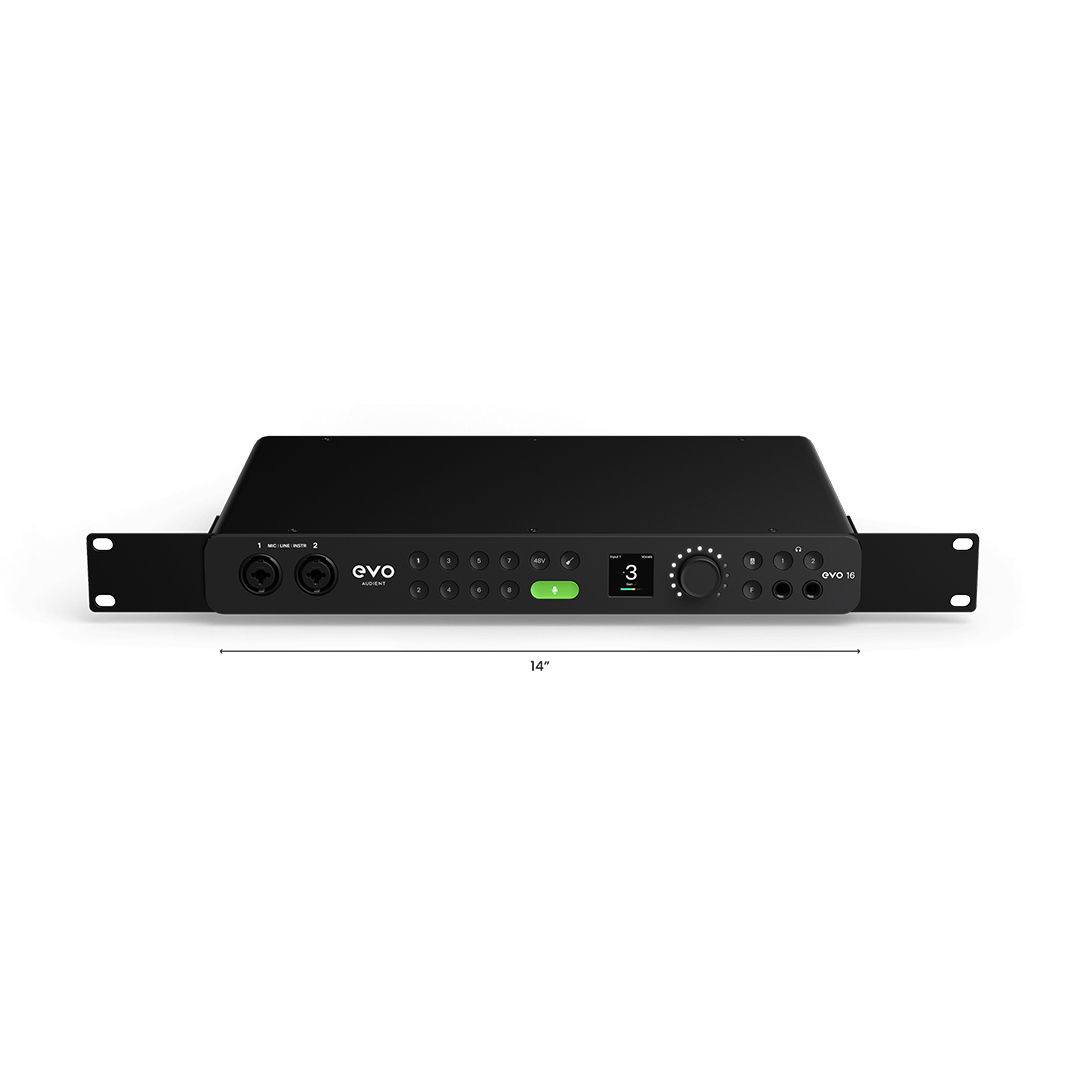

• Desktop and rack compatible — just over 14 inches wide with non-slip rubber feet for desktop use; optional rack ears available separately
• Steel chassis — solid construction with super-bright backlit LED indicators for visibility in dark studio environments

Specifications

• I/O: 24 in / 24 out
• Mic Preamps: 8 × EVO (digitally controlled)
• Dynamic Range: 121dB
• Line Outputs: 8
• Headphone Outputs: 2 (independent; up to 600 Ohm)
• Instrument Inputs: 2 × JFET
• Digital I/O: ADAT and S/PDIF optical (up to 16 channels expansion)
• Display: 240 × 240 TFT backlit full-color LCD (Motion UI)
• USB: High-speed (macOS and Windows)
• Rack Mount: Optional rack ears (sold separately)
• Width: Just over 14 in.
• Construction: Steel chassis
