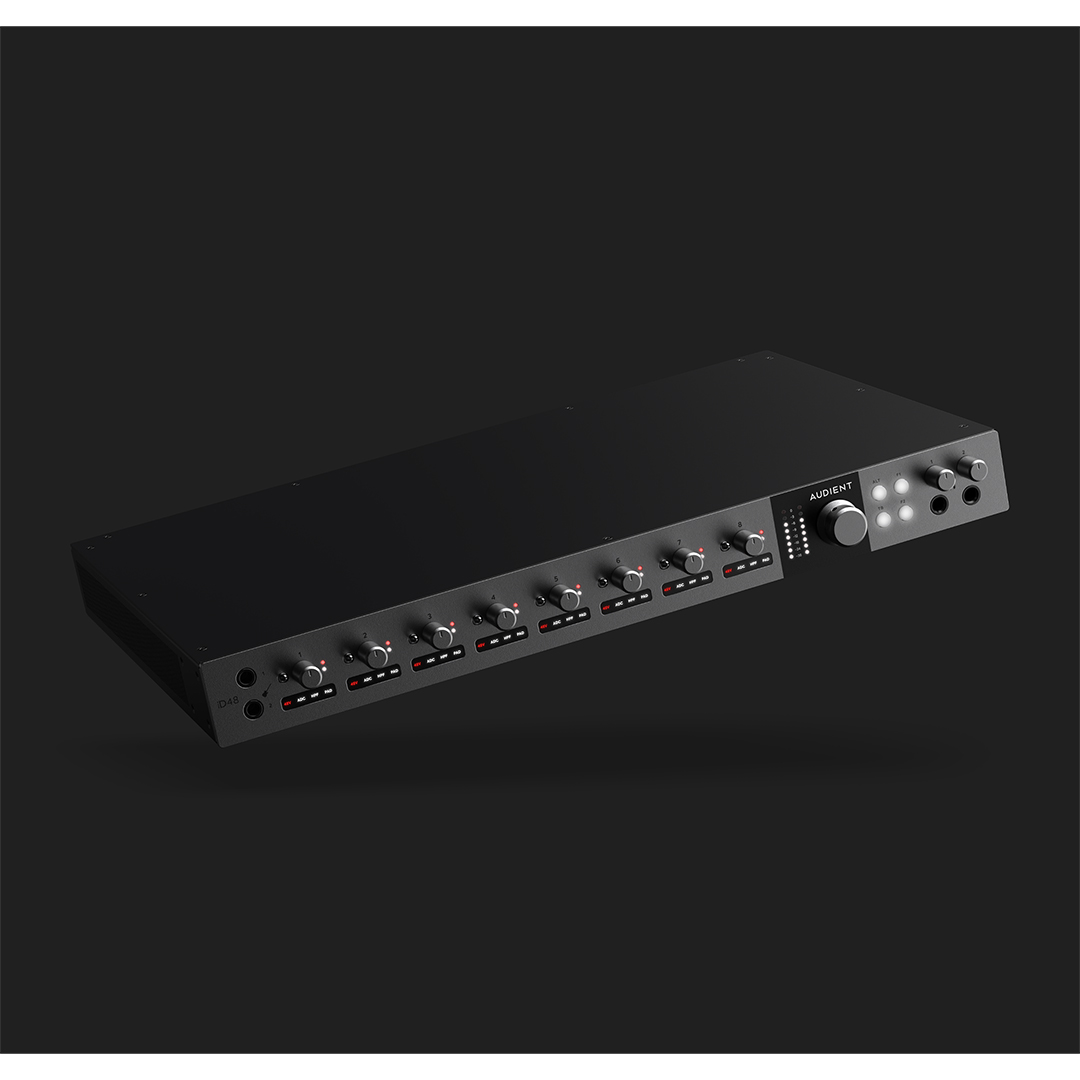

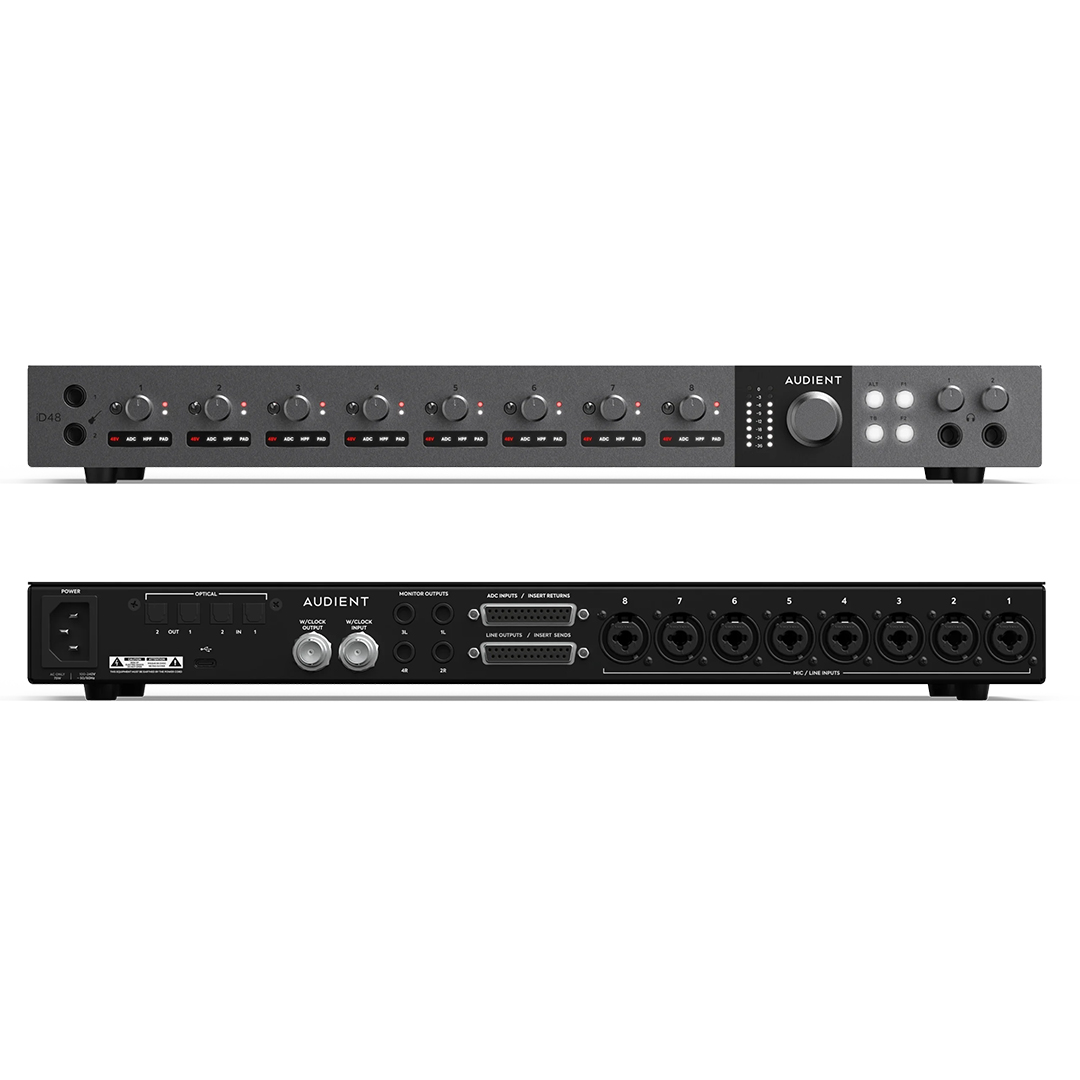

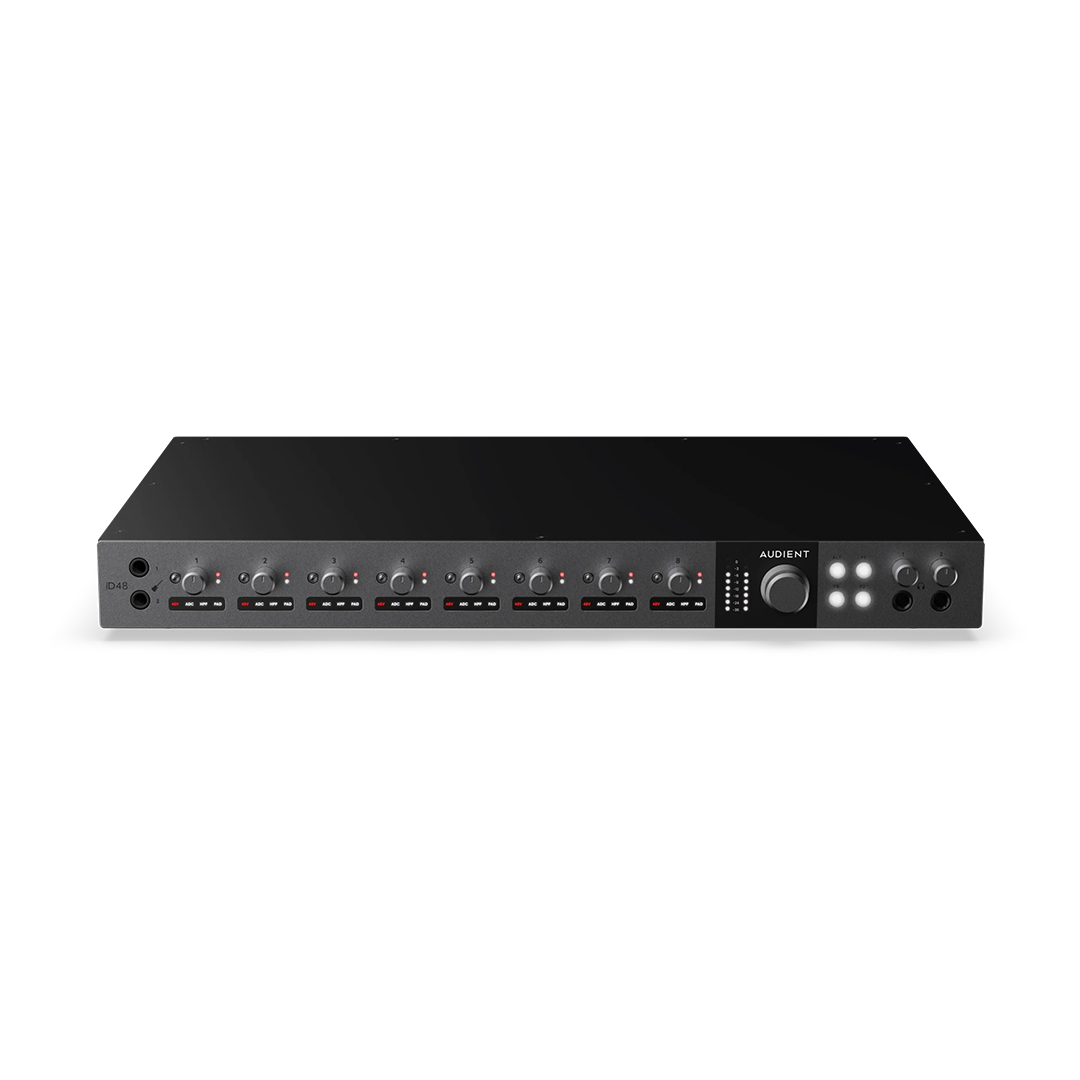

Audient iD48USB 24-In/32-Out USB Audio Interface

The Audient iD48USB is a 24-in/32-out USB-C audio interface built around eight fully discrete Audient Console mic preamps—the same all-discrete, high-grade op-amp circuit design found in the ASP8024-HE recording console—delivering 68dB of gain with ultra-low noise, low distortion, and classic analogue warmth. Advanced 32-bit ESS DAC converter technology achieves 126.5dB of dynamic range, and the new Switchable Analogue Insert system provides eight fully balanced inserts via D-sub, with per-channel routing control that lets engineers choose whether the Audient mic preamp or a DAW output feeds the ADC path—without physically swapping cables. ADAT and S/PDIF optical I/O supports up to 16 channels of digital expansion, two independent headphone amps deliver 124dB dynamic range and drive loads up to 600 Ohms, and the iD Software Mixer supports up to four stereo artist cue mixes. At just over 17 inches wide with rack ears included and a fanless design, the iD48USB is built for both permanent studio installation and demanding location work.

Key Features

• 8 Audient Console mic preamps — fully discrete, all-discrete high-grade op-amp design from the ASP8024-HE recording console; 68dB gain range; ultra-low noise and distortion with classic analogue warmth
• 126.5dB dynamic range converters (32-bit ESS) — 32-bit ESS DAC converter technology for clean, precise conversion and accurate monitoring across all channels
• Switchable Analogue Inserts (8 channels via D-sub) — eight fully balanced inserts for integrating outboard processing before analog-to-digital conversion; per-channel switchable routing selects whether the Audient mic preamp or a DAW output feeds the ADC—no cable swapping required; insert returns bypass the Audient preamp entirely for recording through external analogue mic preamps
• ADAT and S/PDIF optical I/O — optical input and output supporting ADAT and S/PDIF; expand I/O by up to 16 channels for drums, full band, and large-format tracking sessions
• 2 independent headphone outputs — two engineer-grade stereo headphone amps with 124dB dynamic range; drives headphones up to 600 Ohms; independent mixes for engineer and artist
• Main and Alt speaker outputs — monitor switching between speaker pairs for mix translation checks; additional line outputs for routing to external headphone amps for artist distribution
• Talkback — use any USB microphone or the computer’s built-in mic as a dedicated talkback source, freeing all eight mic preamp inputs for recording
• 2 configurable function buttons — assign Speaker Select, Dim, or Mono Sum to dedicated hardware F buttons for instant, one-touch session control
• iD Software Mixer — configure ultra-low latency direct monitoring, build up to four independent stereo artist cue mixes, save layout presets, and set up advanced routing from a single application; macOS and Windows
• 2 JFET instrument inputs — harmonically rich circuit replicates the input stage of a classic valve amplifier; ideal for guitar and bass direct recording
• Fanless design — completely silent operation; suitable for any studio environment including live rooms and vocal booths

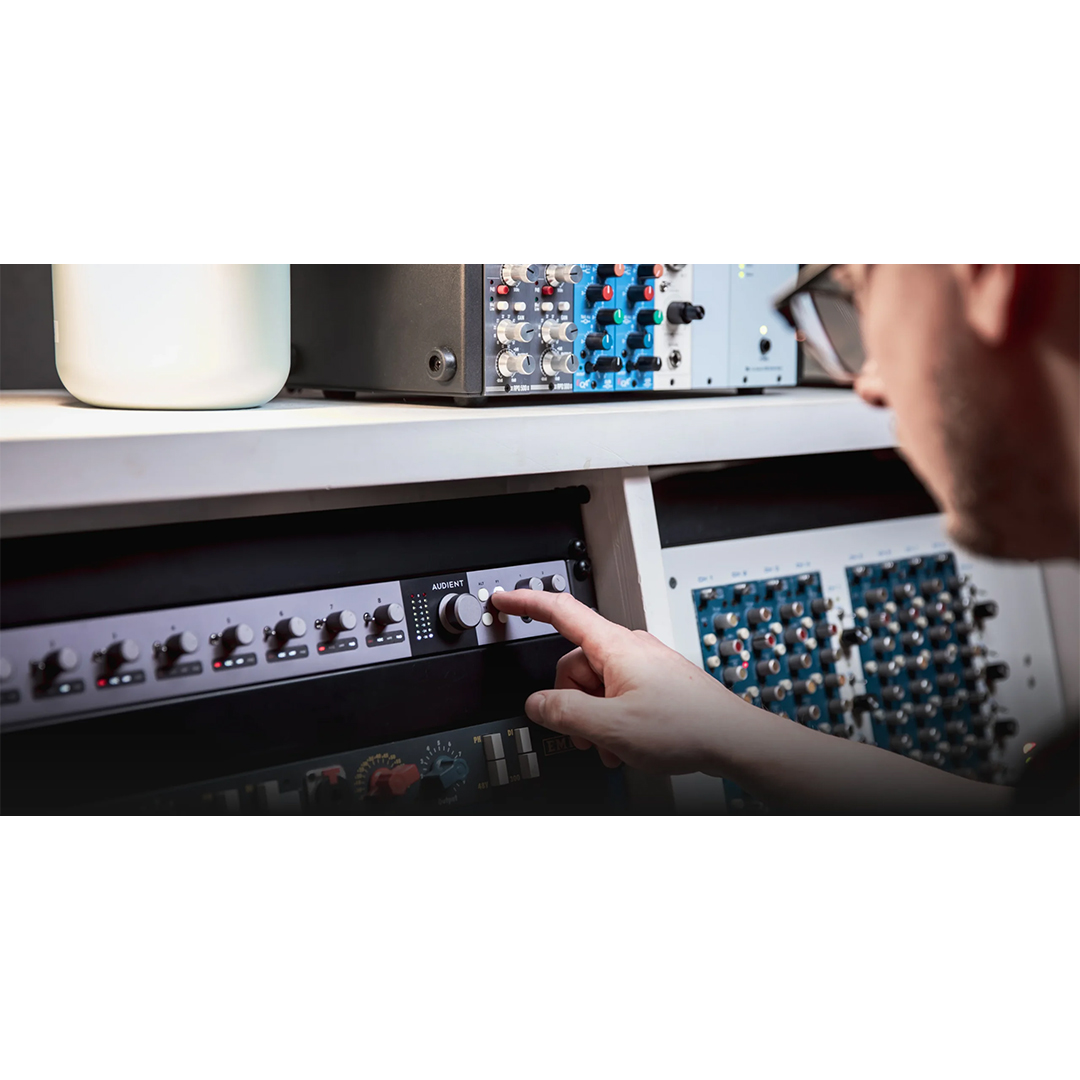

• Rack ears included — just over 17 in. wide; all-metal construction; rack ears included in box for permanent studio rack mounting

Specifications

• I/O: 24 in / 32 out
• Mic Preamps: 8 × Audient Console (discrete; ASP8024-HE design)
• Gain Range: 68dB
• Dynamic Range: 126.5dB
• Converter Technology: 32-bit ESS DAC
• Analogue Inserts: 8 (fully balanced; D-sub; switchable per-channel ADC routing)
• Instrument Inputs: 2 × JFET
• Digital I/O: ADAT and S/PDIF optical (in and out; up to 16 channels expansion)
• Headphone Outputs: 2 (independent; 124dB dynamic range; drives up to 600 Ohm)
• Speaker Outputs: Main + Alt
• Programmable Buttons: 2 × F buttons (Speaker Select, Dim, Mono Sum)
• Cue Mixes: 4 independent stereo (via iD Software Mixer)
• USB: USB-C; high-speed (macOS and Windows)
• Width: Just over 17 in. (44 cm)
• Rack Mount: Rack ears included
• Design: Fanless; all-metal construction
