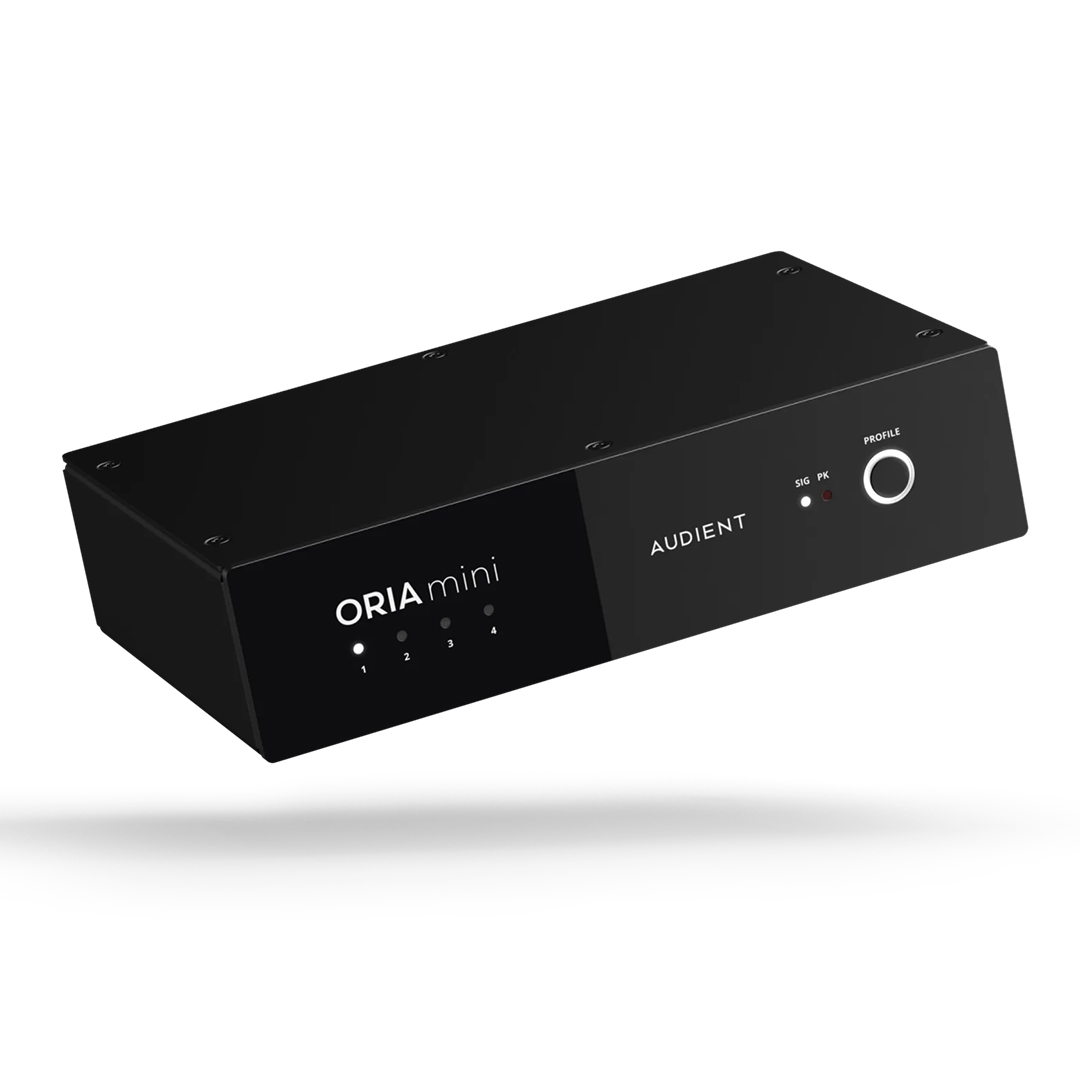

Audient ORIA Mini Desktop Room Correction System

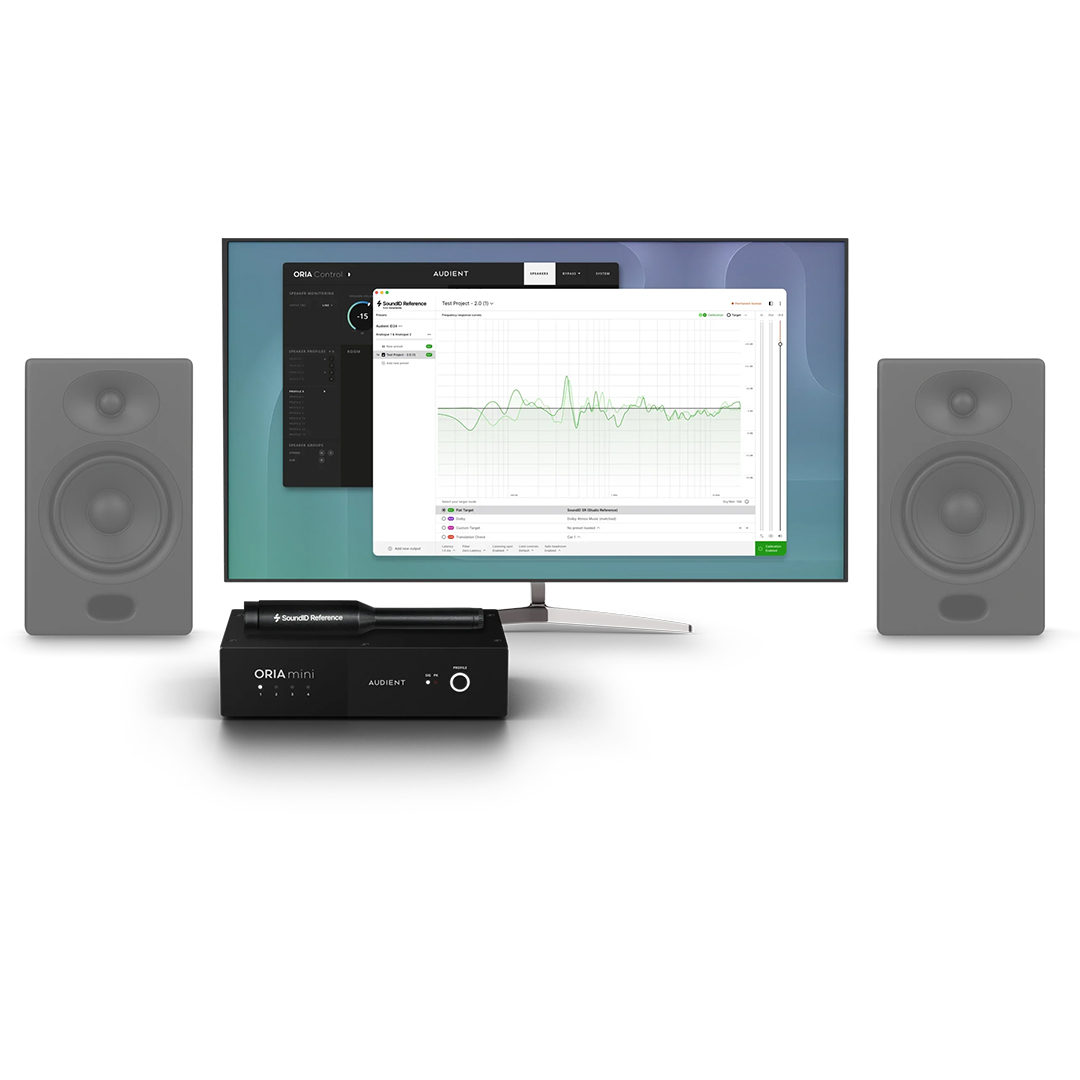

The Audient ORIA Mini is a dedicated hardware room correction system that sits between any audio interface and studio monitors, using Sonarworks SoundID Reference calibration to address the acoustic imperfections—reflections, resonances, and frequency imbalances—that cause mixes to translate poorly outside the room. Custom SoundID Reference profiles are loaded directly onto the ORIA Mini’s onboard DSP hardware, so correction runs continuously at ultra-low latency without requiring Sonarworks software active on the host computer and without adding CPU load. The onboard processor also provides manual per-channel control over EQ, Trim, Delay, and Bass Management for engineers who prefer measurement-based calibration using tools like Smaart or RoomEQ Wizard. Four profile slots allow quick switching between target curves and listening environment simulations—including car, phone, and hi-fi—and 32-bit AD/DA converters with 127dB of dynamic range maintain transparency throughout the signal path.

Key Features

• Sonarworks SoundID Reference integration — measure and calibrate the room using SoundID Reference software; custom profiles load directly onto ORIA Mini’s onboard hardware DSP; correction runs 24/7 without software active on the host computer and without CPU strain
• 4 customizable profile slots — store and recall calibration profiles, target curves, and listening environment simulations; switch between monitoring reference points instantly from the unit itself
• Translation check — import simulations of real-world listening environments (car stereo, phone, hi-fi system) directly into ORIA Mini; audition mix translation from the desk without exporting
• Onboard DSP — per-channel manual control:
  • EQ: address unwanted acoustic coloration and frequency imbalances for a flat, consistent monitoring response
  • Trim: adjust individual speaker levels for a balanced soundfield at the mix position
  • Delay: time-align all speakers so audio from each driver arrives simultaneously at the listening position
  • Bass Management: configure crossover between main speakers and subwoofer for controlled, accurate low-end response
• Third-party measurement software compatible — manual calibration supported via Smaart, RoomEQ Wizard, or other measurement tools for engineers who prefer a fully manual calibration workflow
• Custom target curve adjustment — make real-time adjustments to the target curve and manually select the frequency range to which calibration is applied
• 32-bit AD/DA converters — 127dB dynamic range; engineered for signal transparency throughout the correction chain
• Ultra-low latency dedicated hardware — correction processing runs entirely on the hardware DSP; no master bus plugins required in the DAW; consistent performance regardless of host computer state
• Universal compatibility — connects between any audio interface and any set of studio monitors; no proprietary ecosystem requirements
• Compact portable design — small desktop footprint suited for home studio, professional studio, and mobile use

Specifications

• Function: Hardware room correction system (sits between audio interface and monitors)
• Sonarworks Integration: SoundID Reference (profiles load onto onboard DSP)
• Profile Slots: 4 (customizable; target curves and listening environment simulations)
• Onboard DSP Controls: EQ, Trim, Delay, Bass Management (per output channel)
• Dynamic Range: 127dB
• Converter Technology: 32-bit AD/DA
• Latency: Ultra-low (hardware DSP; no CPU load)
• Third-Party Measurement: Compatible with Smaart, RoomEQ Wizard, and similar tools
