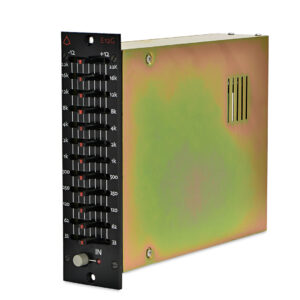

Avedis Audio E12G

Features

• 12-band graphic equalizer
• +12/-12dB’s of boost/cut
• Additional frequencies 12kHz and 22kHz fills a void
• Class A design for each band, NO IC’s in the audio filters
• Ingenius® input stage for transformer-like performance
• Jensen output transformer
• Proportional Q narrows bandwidth at higher settings
• Center detent sliders
• Bypass goes through input and output stage amplifiers
• Excellent for tracking
• Standard 500 series modular size 1.5″ x 5.25″

12-Band Graphic Equalizer

The E12G was designed to meet the need for a high-quality graphic equalizer in a 500 series module format. Its ease of use for sound shaping and frequency correction during tracking makes the E12G an indispensable tool in the studio. Unlike other graphic EQ designs that rely on IC chips, the E12G uses Class A preamps for each band, ensuring your sound is never “processed,” and instead brings out every detail of harmonic richness captured by the microphone and high-end mic preamp. The additional 12kHz and 22kHz frequencies were specifically chosen to fill a gap in the high-frequency range not found in other graphic equalizers. The Ingenius® input stage, designed by Bill Whitlock of Jensen Transformers®, ensures clarity and the performance level typically found in high-end input transformers.

• Frequency Response: <10Hz to -3dB at 100kHz
• Input Impedance: 48k ohms balanced
• Output Impedance: <150 ohms
• Common Mode Rejection Ratio: 90dB min @ 60Hz
• Maximum Output Level: +28 dBu @ 100KΩ, +26.5 dBu @ 600Ω
• Power Requirements: ±16 vdc @ 40mA per rail
• Maximum Input Level: +20dBu
• Distortion: 0.012% @ 1kHz @ 0dBu input
• Equivalent Input Noise: −115 dBu; Unweighted 300kHz bandwidth
• Weight: 1.35 lbs / 0.61kg
