Aviom A320 Personal Mixer

The Aviom A320 Personal Mixer offers performing and recording musicians a streamlined, intuitive interface for dialing in professional-grade monitor mixes. Designed to work seamlessly with in-ear monitors and headphones, the A320 delivers exceptional stereo imaging, musical tone shaping, and flexible compatibility with both legacy and modern Aviom systems.

With 16 mix channels and a 32-channel mix engine, musicians can control per-channel volume, stereo placement, and EQ, all with simple and effective controls. The A320 is ideal for musicians who need reliability, clarity, and ease of use on stage or in the studio.

Key Features

• 16 mono or stereo mix sources with a 32-channel mix engine
• Per-channel volume, solo, mute, and stereo placement
• Three-band master tone controls optimized for in-ear monitors
• Eight customizable mix presets
• Stereo operation for mono and stereo sources

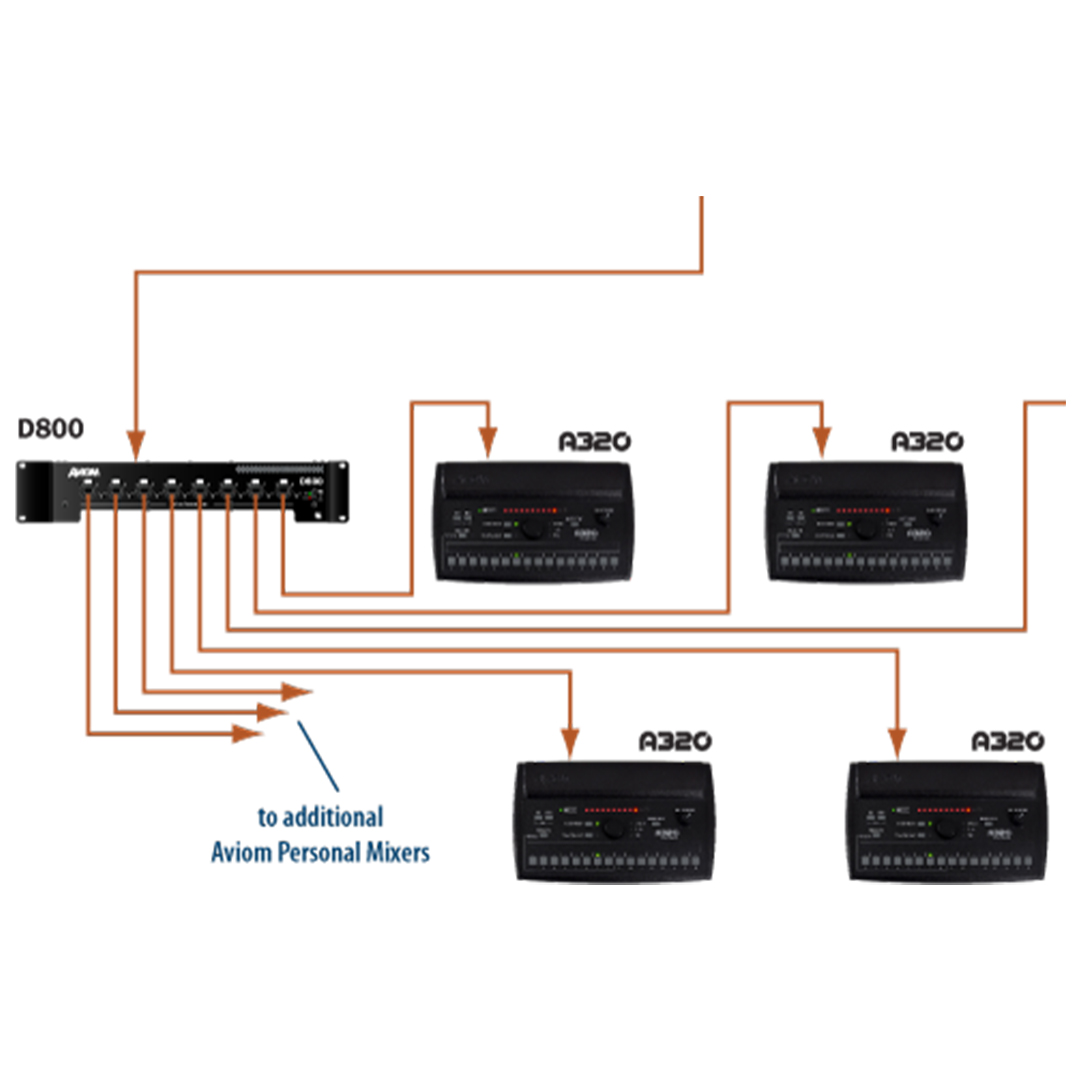

• Compatible with A640, A360, A-16II, and Aviom legacy Pro16 systems
• Rugged, compact, and reliable for touring and studio use

Specifications

• Audio Output: 1/4″ TRS stereo headphone/line level
• Headphone Output: 275 mW per side into 50 Ohms
• Output Impedance: 5 Ohms
• Frequency Response: 3Hz–22kHz (+0.2dB/-3dB at 50 Ohms)
• THD + N: < 0.003%
• Signal to Noise (unweighted): -106dB
• Latency: 0.880 ms (analog in to analog out)
• A-Net I/O: 1 x RJ45; supports Pro16 and Pro16e
• D/A Conversion: 44.1/48kHz, 24-bit
• Power: 24 VDC, 0.5 amp (supplied via Cat-5 from Aviom A-Net Distributor)
• Dimensions: 10.26″ W x 6.14″ D x 1.91″ H
• Weight: 1.3 lb (0.59 kg)
• Options: MT-1a Mic Stand Mount
