Aviom AN-16/i v.2 Input Module

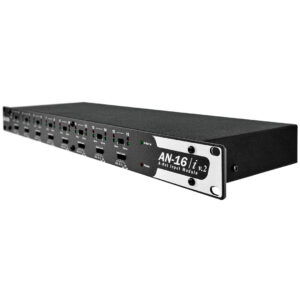

The Aviom AN-16/i v.2 Input Module is a 16-channel line-level audio interface that converts analog signals into a Pro16e A-Net digital stream for use in personal mixing systems or digital audio networks. Featuring TRS input and thru connectors for each channel, four-position gain switches, stereo linking, and visual metering, the AN-16/i v.2 provides flexible integration with a variety of consoles and output destinations.

When used as the head-end of a personal mixing system, it supports up to four input slot ranges—enabling up to 64 channels of digital audio to be routed to Aviom’s A640, A360, and A320 Personal Mixers. The AN-16/i v.2 is also a powerful front-end for digital snakes, and when paired with the SB4 System Bridge, allows multi-stream transmission over a single Cat-5e cable.

Key Features

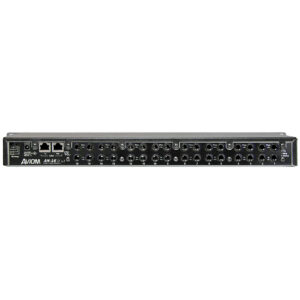

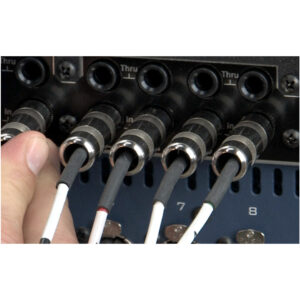

• Sixteen balanced 1/4-inch TRS audio inputs
• Sixteen impedance-matched TRS thru connectors

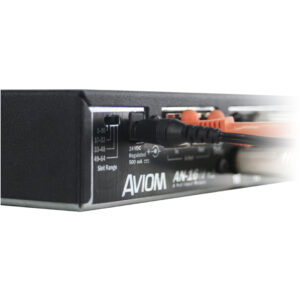

• A-Net In with four-position slot range selector for Pro16e channel expansion
• Four-position gain settings per channel pair: +22, +4, 0, -10dB
• Stereo Link switch for each odd/even input pair
• Signal Present and Clip LEDs for each channel
• Ideal for use with console direct outs, inserts, aux sends, or submixes
• Compatible with A640, A360, A320, and legacy A-16II Personal Mixers
• Integrates with SB4 System Bridge and AN-16/o v.4 for digital snake configurations

Specifications

• Audio Inputs: 16 balanced, line-level (1/4” TRS connectors)
• TRS Pinout: Tip = Audio +; Ring = Audio –; Sleeve = Ground
• TRS Thru: Impedance matched
• Gain Settings: -10dBv, 0dBu, +4dBu, +22dBu (4-position switch per channel pair)
• Stereo Link: Two-position switch (Normal, Link) per channel pair
• Max Input Level: +22dBu
• Input Impedance: 17.8k ohms
• Line Input Impedance: 48k ohms
• Metering: Green LED (Signal Present), Red LED (Clip) per channel
• Frequency Response: 4Hz–22kHz (+0.2dB/-3dB)
• THD + N: < 0.003%
• Crosstalk: -90dB
• Signal to Noise Ratio: 90dB (typical, A/D to D/A)
• Bit Error Rate (BER): 10⁻¹²
• Latency: <0.880 ms (analog input to analog output)
• A-Net Input: 1 x RJ45 (with 4-position slot range selector)
• A-Net Output: 1 x RJ45
• Digital Output Type: Pro16e A-Net, unshielded Cat-5e UTP (or better)
• Power Supply: External DC, universal switching type
• Input Voltage: 100–240V AC, 50/60Hz, 30VA
• Output Voltage: 18–24V DC, 0.5A (2mm plug)
• Power Requirement: 18–24V DC, 500mA
• Dimensions: 19” W x 5.75” D x 1U H
• Weight: 6.8 lbs (3.08 kg)
