Aviom AN-16/o v.4 Output Module

The Aviom AN-16/o v.4 Output Module is a 16-channel digital-to-analog converter designed for Pro16 digital audio networks. It converts A-Net digital audio streams into balanced analog outputs using high-quality 48kHz, 24-bit D/A converters. With selectable output levels and DB25 connectors, this 1U rack-mount unit offers versatile integration options for both live and studio applications.

Whether you’re connecting to wireless in-ear monitors, building a digital snake system, or creating a recording split, the AN-16/o v.4 delivers robust performance and flexible analog output routing. Each channel pair can be set to +24dBu, +18dBu, +4dBu, or mic-level output, providing compatibility with a wide range of gear.

Key Features

• 16 balanced mic- or line-level analog outputs
• Four-position output level switch per channel pair (+24, +18, +4 dBu, or mic level)
• 48kHz, 24-bit D/A conversion

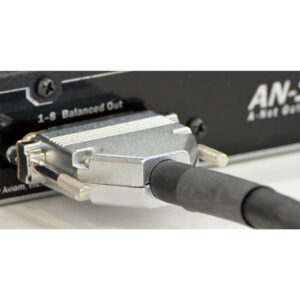

• Dual DB25 output connectors (Tascam analog pinout)
• Works with any Pro16 input module, console card, or A-Net distributor

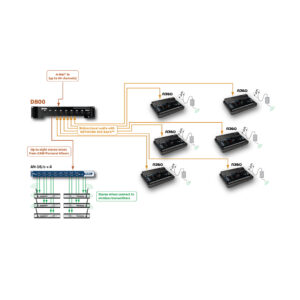

• Supports up to eight A640 or A360 mixers with Network Mix Back
• Ideal for use on stage, front of house, studio, or recording split applications
• Compatible with SB4 System Bridge for digital stream aggregation

Specifications

• Audio Outputs: 16 channels, balanced
• Connectors: 2 x DB25 multipin (Tascam analog audio pinout)
• D/A Conversion: 48kHz sample rate, 24-bit
• Output Level Settings: +24dBu, +18dBu, +4dBu, Mic (per channel pair)
• Output Impedance: 226 ohms (+18/+24 dBu), 100 ohms (+4 dBu/mic)
•  Max Output Level: +24dBu
• Frequency Response: 4Hz–22kHz (+0.2dB/-3dB)
• THD +N: < 0.004%
• Crosstalk: -90dB
• Signal to Noise Ratio: 92dB (typical, A/D to D/A)
• Latency: <0.620 ms (analog in to analog out)
• Metering: LED indicators per channel (green: Signal Present, red: Clip)

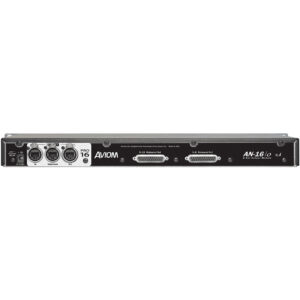

• A-Net I/O: 1 x EtherCon RJ45 (input), 1 x EtherCon RJ45 (output), 1 x EtherCon RJ45 (expansion)
• Bit Error Rate (BER): 10⁻¹²
• Digital Connections: Supports A-Net Pro16 and A-Net Expansion (up to 32 channels over one Cat-5e cable)
• Power Supply: External universal switching (100–240V AC, 50/60Hz, 30VA)
• Power Input: 24V DC, 500mA (2mm plug)
• Dimensions: 19” W x 5.75” D x 1U H
• Weight: 6.8 lbs (3.08 kg)
• Options: SB4 System Bridge, DB25 breakout cables
