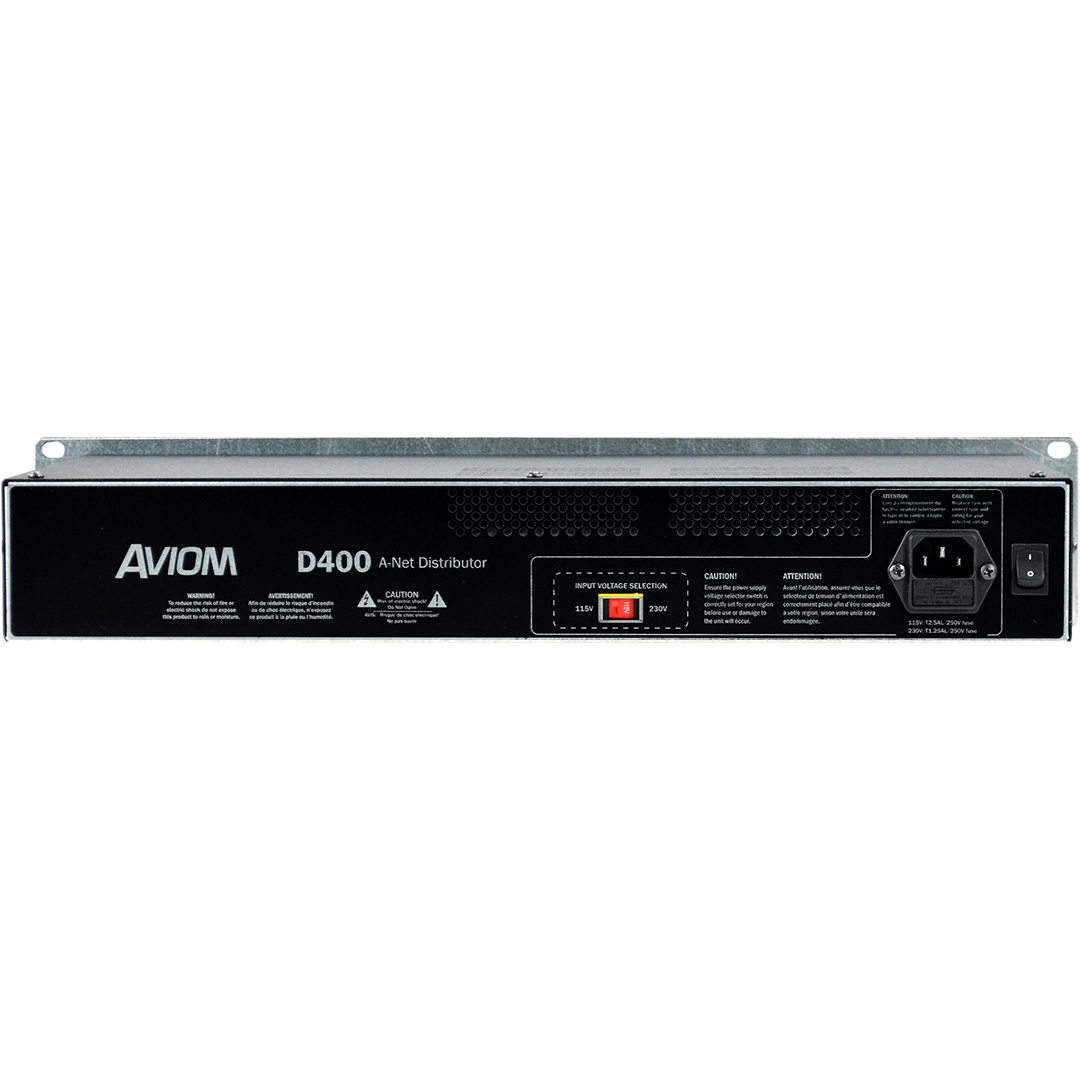

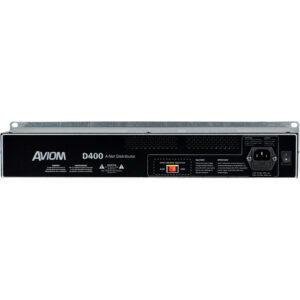

Aviom D400-Dante A-Net Distributor with Dante Integration

The Aviom D400-Dante combines power distribution and Dante audio networking into one efficient unit. Designed for small to mid-sized Dante-enabled systems, the D400-Dante supports up to 32 channels at 44.1/48kHz and provides plug-and-play compatibility with A640, A360, A320, and A-16II Personal Mixers. Simple setup, expandable outputs, and front-panel stereo link DIP switches make it an easy yet powerful choice for modern Dante networks.

Key Features

• Connects up to eight Aviom Personal Mixers (A640, A360, A320, A-16II)
• Receives up to 32 Dante channels at 44.1/48kHz
• Primary and secondary Dante ports (RJ45)
• One unpowered A-Net Out port for system expansion
• Front-panel DIP switches for stereo link control
• Supports static IP and AES67

Specifications

• Dante Interface: 32 channels from Dante (44.1/48kHz only)
• Dante I/O: Primary and Secondary RJ45 ports
• A-Net Out to Personal Mixers: Eight powered RJ45 connectors
• A-Net Expansion Out: One unpowered RJ45 connector
• Stereo Link: Two 8-position DIP switches (1-32)
• LED Indicators: Network Activity (green), 1GB Active (yellow), Power On (red), Network Sync (green)
• Output Voltage: 24VDC, 0.5 amp
• Power Supply: Internal; IEC connector
• Input Voltage: 100–120 VAC or 200–240 VAC (selector switch); 50–60Hz @ 220W max
• AC Fuse: 115V: T2.5AL/250V; 230V: T1.25AL/250V (slow-acting)
• Dimensions: 19″ W x 7.25″ D x 3.5″ H (2U)
• Weight: 12.0 lbs (5.44 kg)
