Aviom D800-Dante A-Net Distributor with Dante Integration

The Aviom D800-Dante bridges Dante™ audio networks and Aviom Personal Mixers, delivering up to 64 Dante channels with power and A-Net digital audio over Cat-5e. With onboard sample rate conversion, stereo linking, and direct iOS app support, the D800-Dante offers a powerful, plug-and-play solution for networked audio systems and personal monitoring workflows.

Key Features

• Connects directly to Dante networks with primary and secondary ports
• Delivers up to 64 Dante channels to Aviom Personal Mixers
• Built-in sample rate conversion to 48kHz for mixer compatibility
• Compatible with A640, A360, A320, and A-16II mixers
• Supports Network Mix Back and A360 Channel Manager
• Static IP and AES67 support
• Expandable via A-Net Out port
• Stereo linking via DIP switches; stereo defeat option

Specifications

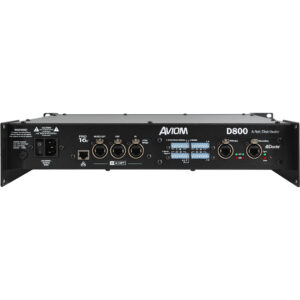

• Front Panel Mixer Ports: Eight locking RJ45 (powered); I/II switch for mixer compatibility (original version only)
• Dante Primary I/O: One locking RJ45
• Dante Secondary I/O: One locking RJ45
• Sample Rates Supported:
  • 44.1/48kHz – 64 channels
  • 88.2/96kHz – 32 channels
  • 176.4/192kHz – 16 channels
• Stereo Linking: DIP switches for 32 channel pairs (1–64)
• Stereo Link Defeat: Bypasses DIP settings
• Network Mix Back: One RJ45 (unpowered, up to 8 stereo pairs)
• USB: For firmware updates
• Ethernet: One RJ45 (for A360 Display support)
• Power Supply: Internal, universal switching (100–240VAC, 50–60Hz, 300W)
• Dimensions: 19″ W x 14.25″ D x 3.5″ H (2U)
• Weight: 12.0 lbs (5.44 kg)
