Aviom D800 A-Net Distributor

The Aviom D800 A-Net Distributor is the hub of your personal mixing system, providing both power and digital audio distribution for up to eight Aviom Personal Mixers over standard Cat-5e cabling. With simple setup, rock-solid reliability, and support for advanced features like Network Mix Back and A-Net stream aggregation, the D800 is an essential tool for any high-channel-count stage or studio workflow.

Key Features

• Distributes power and audio to up to eight Aviom Personal Mixers
• Compatible with A640, A360, A320, and A-16II mixers
• Aggregates up to 64 channels from four A-Net streams when used with SB4 System Bridge
• Supports Network Mix Back for wireless in-ear monitors
• Includes A-Net Out port for system expansion
• iOS support for A360 Display™ app
• Automatic bidirectional communication with compatible mixers (v.2 only)

Specifications

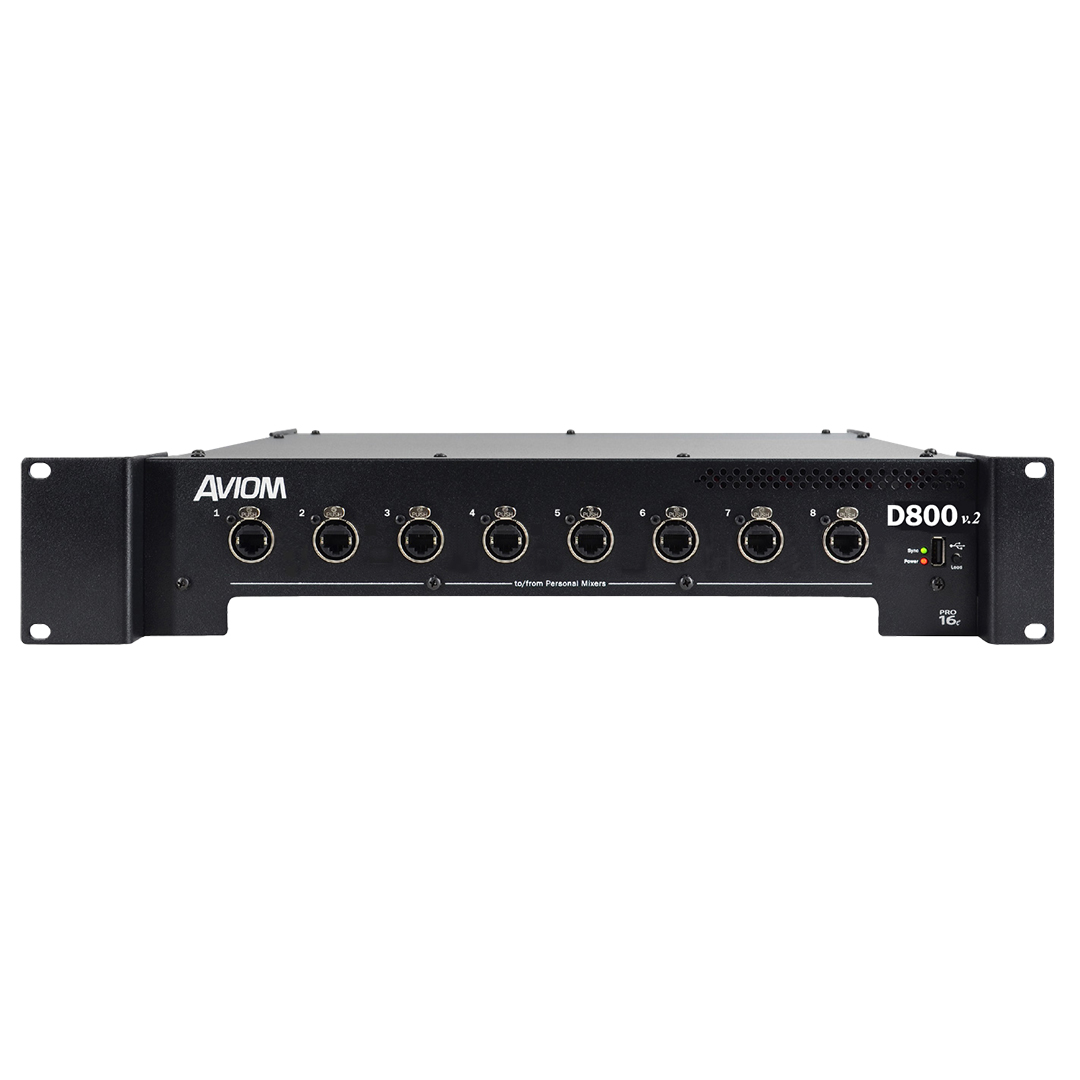

• Front Panel Mixer Ports: Eight locking RJ45 (powered); switchable I/II settings for A360 (original version only)

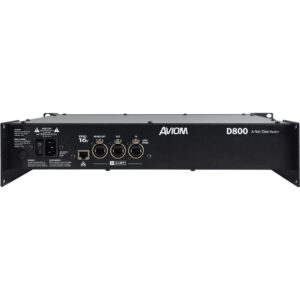

• A-Net Input: One locking RJ45 (Pro16 or Pro16e)
• A-Net Out: One locking RJ45 (unpowered, for expansion)
• A-Net Mixes Out: One locking RJ45 (up to 8 stereo pairs of Network Mix Back)
• Ethernet: One RJ45 (for iOS A360 Display)
• USB: For firmware updates
• Output Voltage to Mixers: 24VDC, 0.5A
• Power Supply: Internal, universal switching (100–240VAC, 50–60Hz, 300W)
• Dimensions: 19″ W x 14.25″ D x 3.5″ H (2U)
• Weight: 12.0 lbs (5.44 kg)
