Aviom MIX320-A Personal Mixing System

The Aviom MIX320-A Personal Mixing System is a complete six-user monitoring solution designed for analog mixing consoles and studio setups. Featuring the AN-16/i v.2 Input Module, D400 A-Net Distributor, and six A320 Personal Mixers, it delivers clear, customized monitor mixes to each performer with ease. With all necessary Cat-5e cabling and mic stand mounts included, the MIX320-A is ready to deploy straight out of the box for stage or studio use.

Included Components

• 1 x AN-16/i v.2 Input Module
• 1 x D400 A-Net Distributor
• 6 x A320 Personal Mixers
• 6 x MT-1a Mic Stand Mounts
• 7 x Cat-5e Cables

Key Features

• Complete six-user personal mixing system with analog front end
• Simple Cat-5e cabling delivers audio and power to mixers
• Supports stereo linking and A-Net channel offsets
• Perfect for live or studio monitoring applications
• Expandable by adding more Personal Mixers and A-Net Distributors

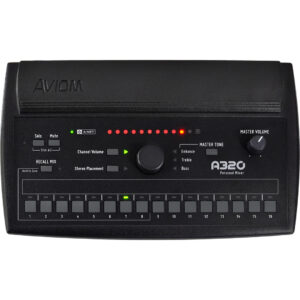

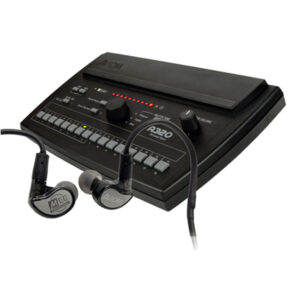

A320 Personal Mixer Specifications

• Audio Output: 1/4″ TRS stereo headphone/line
• Headphone Output: 275 mW per side into 50 Ohms
• Output Impedance: 5 Ohms
• Frequency Response: 3Hz–22kHz (+0.2dB/-3dB)
• THD + N: < 0.003%
• Signal to Noise (unweighted): -106dB
• Latency: 0.880 ms
• A-Net I/O: 1 x RJ45; supports Pro16 and Pro16e
• Power: 24VDC, 0.5A via Cat-5
• Dimensions: 10.26″ W x 6.14″ D x 1.91″ H
• Weight: 1.3 lb (0.59 kg)

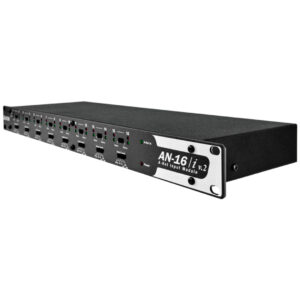

AN-16/i v.2 Input Module Specifications

• Audio Inputs: 16 balanced line-level (1/4″ TRS)
• TRS Thru: Impedance matched outputs
• Gain Settings: -10dBv, 0dBu, +4dBu, +22dBu (per channel pair)
• AD Conversion: 48kHz, 24-bit
• Frequency Response: 4Hz–22kHz
• THD + N: < 0.003%
• Crosstalk: -90dB
• Signal to Noise: 90dB typical
• A-Net I/O: 1 x A-Net In, 1 x A-Net Out (RJ45)
• Latency: <0.880 ms
• Power Supply: External 18–24VDC, 0.5A
• Dimensions: 19″ W x 5.75″ D x 1U H
• Weight: 6.8 lbs (3.08 kg)

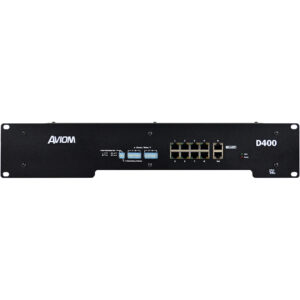

D400 A-Net Distributor Specifications

• A-Net Input: RJ45 (Pro16 or Pro16e)
• A-Net Offset: DIP switch for channels 1, 17, 33, or 49
• Stereo Link: Two 8-position DIP switches (1–32)
• A-Net Out to Mixers: Eight powered RJ45 ports
• A-Net Expansion Out: One unpowered RJ45
• LEDs: Power On (red), Network Sync (green)
• Output Voltage: 24VDC, 0.5A per port
• Power Supply: Internal; 100–240VAC, 50–60Hz, 220W max
• Dimensions: 19″ W x 7.386″ D x 3.5″ H (2U)
• Weight: 12.0 lbs (5.44 kg)
