Aviom MIX320-D Personal Mixing System with Dante Interface

The Aviom MIX320-D Personal Mixing System is a complete six-user monitoring solution designed specifically for Dante™-enabled consoles and audio networks. It includes everything needed to deploy a powerful, easy-to-use personal mixing system with plug-and-play simplicity and no need for analog input modules or console cards.

Each A320 Personal Mixer receives audio and power via a single Cat-5e cable from the included D400-Dante A-Net Distributor. Stereo sources are supported, mix presets can be saved, and the system integrates seamlessly with Aviom’s larger ecosystem of Pro16 and Pro16e devices.

Included Components

• 1 x D400-Dante A-Net Distributor
• 6 x A320 Personal Mixers
• 6 x MT-1a Mic Stand Mounts
• 7 x Cat-5e Cables

Key Features

• Designed for direct integration with Dante networks
• Supports up to 32 Dante channels (44.1/48kHz)
• Power and digital audio distributed via Cat-5e
• Stereo linking and A-Net expansion supported
• Expandable for larger systems

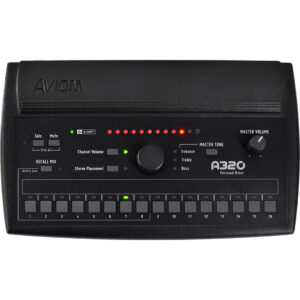

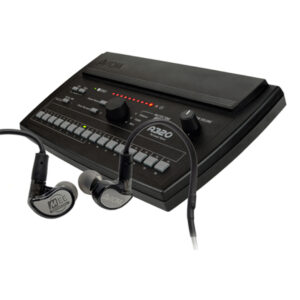

A320 Personal Mixer Specifications

• Audio Output: 1/4″ TRS stereo headphone/line
• Headphone Output: 275 mW per side into 50 Ohms
• Output Impedance: 5 Ohms
• Frequency Response: 3Hz–22kHz (+0.2dB/-3dB)
• THD + N: < 0.003%
• Signal to Noise: -106dB (unweighted)
• Latency: 0.880 ms
• A-Net I/O: 1 x RJ45 (Pro16/Pro16e compatible)
• Dimensions: 10.26″ W x 6.14″ D x 1.91″ H
• Weight: 1.3 lb (0.59 kg)

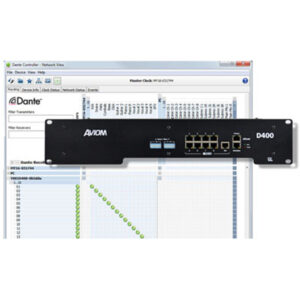

D400-Dante A-Net Distributor Specifications

• Dante Interface: 32 channels at 44.1/48kHz
• Dante I/O: Primary & Secondary RJ45 connectors
• A-Net Out: Eight powered RJ45 ports (front); One unpowered RJ45 (rear)
• Stereo Link: Two 8-position DIP switches (1–32)
• Power Supply: Internal; 100–240VAC with selector switch
• Dimensions: 19″ W x 7.386″ D x 3.5″ H (2U)
• Weight: 12.0 lbs (5.44 kg)
