Aviom SB4 System Bridge

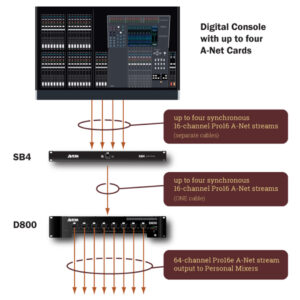

The Aviom SB4 System Bridge is a powerful tool for streamlining high-channel-count digital audio systems. Designed for use with Aviom’s personal mixing ecosystem, it enables up to four synchronous Pro16 A-Net streams to be combined into a single Pro16e data stream. When used with the D800 or D800-Dante A-Net Distributor, the SB4 makes it easy to distribute audio to A640, A360, and A320 Personal Mixers. Additionally, two SB4 units can be deployed as a pair to transport multiple streams over a single Cat-5e cable — an ideal solution for simplifying long cable runs in digital snake systems.

Key Features

• Combines up to four synchronous A-Net streams from digital consoles

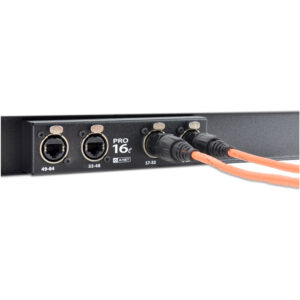

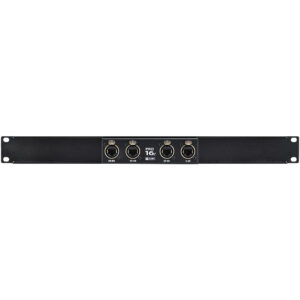

• Rear panel: Four EtherCon-style connectors (16 channels each)
• Front panel: One EtherCon-style connector for A-Net Bridge output (up to 64 channels)
• No power supply required
• Supports digital snake configurations: 64×0, 48×16, 32×32, or smaller
• Ideal for personal mixing and audio distribution
• Multiple SB4 units can be used to build larger systems

Specifications

• A-Net Input/Output: Four EtherCon RJ45 connectors
• A-Net Bridge: One EtherCon RJ45 connector
• Dimensions: 1U high x 19” (482.6 mm) wide x 1.25” (31.75 mm) deep
• Weight: 1.0 lb (0.45 kg)
