BAE 1073D module for 500 series

$2,395.00

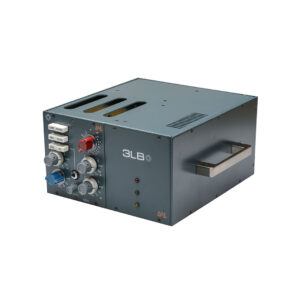

BAE 1073D 500 Series Module

The 1073D (Deluxe) is essentially a 1073 module with extra high frequencies and a direct input for the 500 series market. Built using the same exact parts as the 10 series module, the 1073D features Carnhill transformers, Elma gold plated switches and Canford wire making this the best sounding Class A mic‐pre EQ module on the block.

Because BAE did not want to compromise, the parts are such that they made this a 3 space wide module for optimal quality in contrast to building a smaller rack space version lacking the same premium components.

  • High Frequency: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
  • Mid Range: +/-18dB peaking, fixed ‘Q’ with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
  • High Pass Filter: 50Hz, 80Hz, 160Hz & 300Hz
  • Phase Button: 180°
  • Frequency Response: 10Hz to -3dB at 55kHz
  • 3 Band Equaliser
    • HF: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
    • LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
    • MF: +/-18dB peaking, fixed ‘Q’ with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
  • High Pass Filter: 50Hz, 80Hz, 160Hz & 300Hz
  • Mic Input Impedance: ≈1200/300Ω
  • Line Input Impedance: 10kΩ
  • DI Input Impedance: ≈150kΩ
  • Output Impedance: 35Ω
  • Common Mode Rejection Ratio: 100dB min @ 60Hz
  • Maximum Output Level: +27.4 dBu @ 600Ω
  • Power Requirements: +/- 16VDC – 120mA
  • Gain dB: 0 to 70 dB
  • Equivalent Input Noise: -110 dBu; Unweighted 300kHz Bandwidth
  • Weight: 5 LBS/2.72 KG
  • Dimensions in Inches (Module/Rackmount): 4.5W x 5.25H x 5.5D
