BAE 1073MPF Dual Channel with Filter & Power Supply

This is the high-pass filter version of the 1073MP. The 1073MPF is the mic pre-amp version of the 1073 equaliser, sharing the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs, and maintained focused mids.

A transformer coupled input, with two selectable impedances makes the 1073MP work well with a variety of microphones. The added high-pass filter offers more control over the low-end frequencies, making it versatile for different recording scenarios.

There is also a line input feature for adding depth to 2-bus mixes and a DI input for all passive and active instruments.

As a coloured and versatile mic-pre, the 1073MP maintains its sonic signature across a wide bandwidth.

  • All Class A, transformer-coupled design in a 19″ 1U chassis.
  • Inductor based high pass filter
  • Line level XLR inputs for extra versatility as a line preamp.
  • High impedance DI for guitar and synth.
  • The same Class A components as the 1073 and 1084.
  • Illuminated phase reverse and phantom power push-buttons.
  • Input impedance selector switch between 1200 and 300 ohms.
  • Same modular design and hand-wiring BAE is known for.

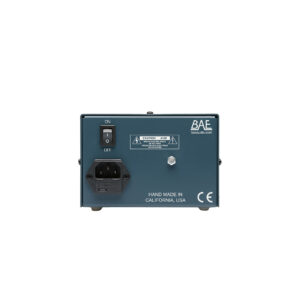

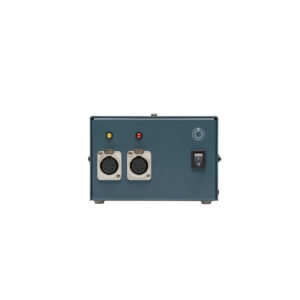

  • Regulated linear power supply will run up to four channels.
  • Frequency Response: 10Hz to -3dB at 55kHz
  • High Pass Filter: 50Hz, 80Hz, 160Hz, 300Hz
  • Mic Input Impedance: ≈1200/300 ohms
  • Line Input Impedance: 10k ohms
  • DI Input Impedance: ≈150k ohms
  • Output Impedance: 65 ohms
  • Common Mode Rejection Ratio: 100dB min @ 60Hz
  • Maximum Output Level: +27.4 dBu @ 600Ω
  • Power Requirements: 115/230 VAC, 30W
  • Gain dB: 0 to 71 dB
  • Equivalent Input Noise: -110 dBu; Unweighted 300kHz Bandwidth
  • Weight (Single/Dual): 8 LBS / 3.63 KG, 10 LBS / 4.54 KG
  • Dimensions (Inches): 19W x 1.75L x 9D
