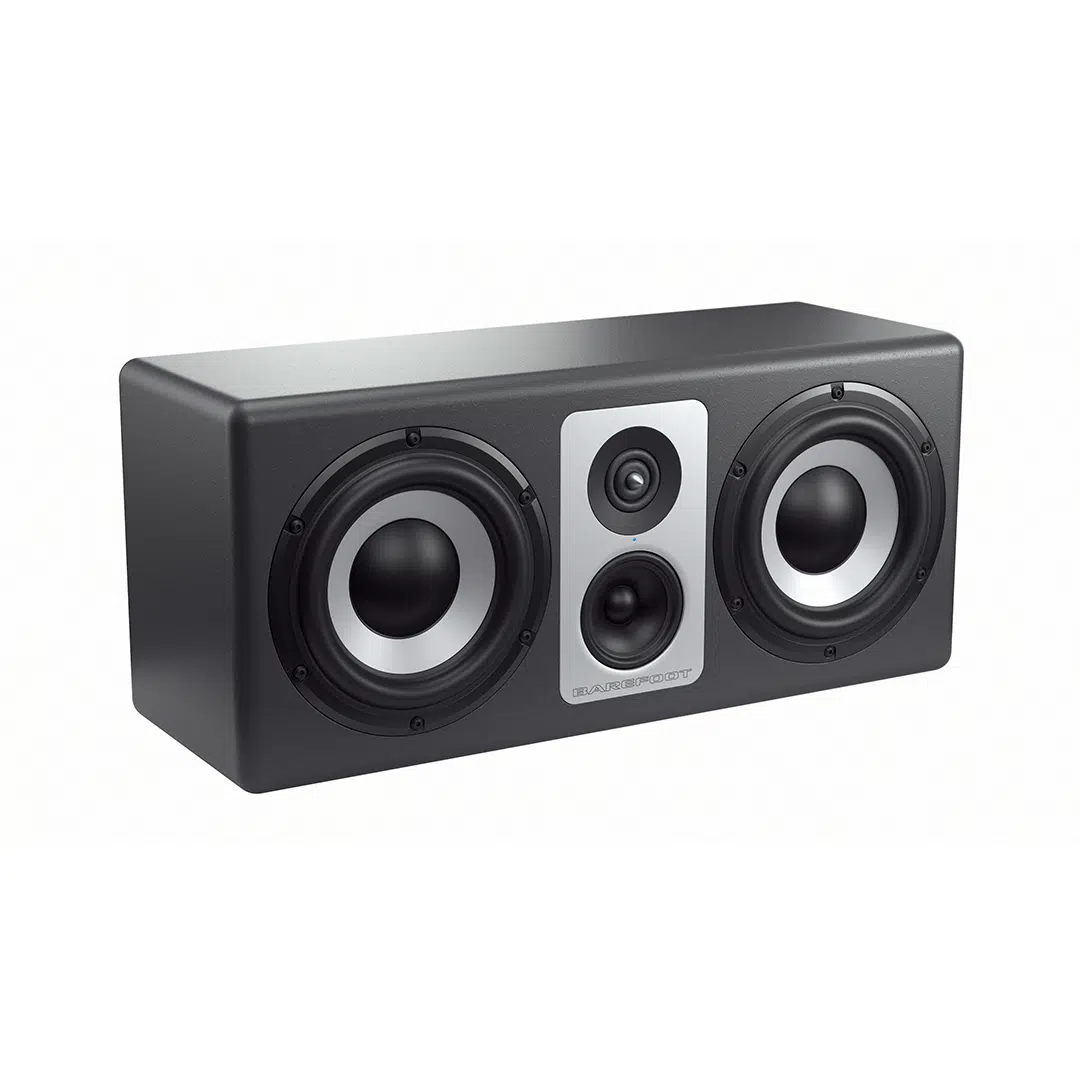

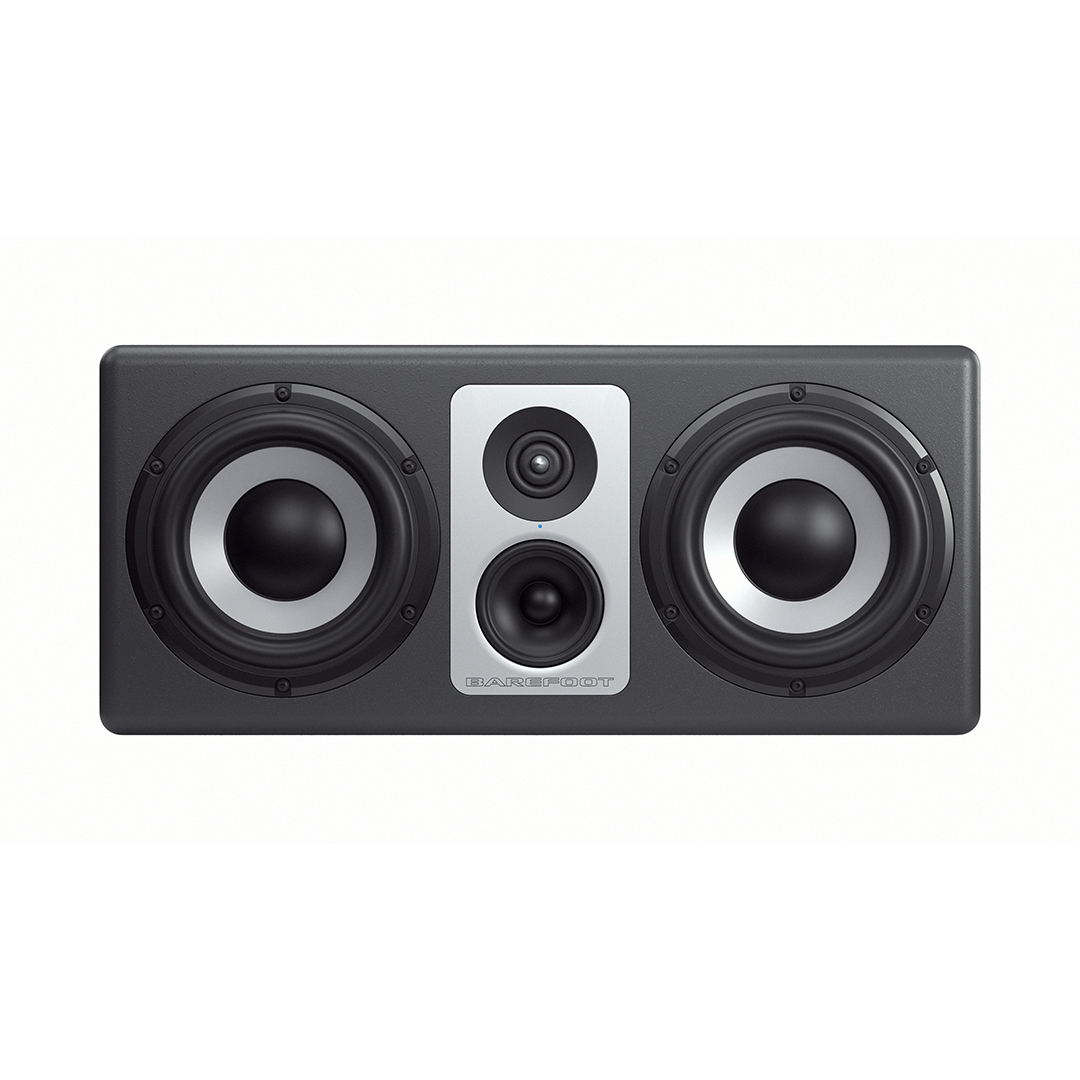

Barefoot Sound Footprint 03C Tri-Amplified 3-Way Active Studio Monitor

The Footprint 03C is purpose-built as a center-channel monitor for immersive and surround production, delivering the clarity, focus, and tonal consistency required for modern Atmos, film, and multi-channel music workflows. Based on the same tri-amplified 3-way architecture as the Footprint 03, the 03C integrates seamlessly into Footprint-based systems while maintaining the precision and translation Barefoot Sound is known for.

Designed for Immersive and Center-Channel Accuracy

A dedicated center channel is essential for accurate dialogue placement, vocal balance, and stable imaging across complex mixes. The Footprint 03C anchors the soundstage, ensuring that critical midrange information stays focused and consistent across playback systems. When paired with Footprint 03 monitors, it creates a cohesive and reliable monitoring environment for film, broadcast, music, and immersive audio production.

Tri-Amplified 3-Way Architecture

The Footprint 03C features a tri-amplified design with dedicated Class D amplification for each driver. A 1-inch ring radiator tweeter, a 3.5-inch aluminum cone midrange, and dual forward-facing 6.5-inch aluminum cone woofers work together to deliver clean transients, detailed midrange articulation, and controlled low-frequency response. Advanced motor structures, copper shorting rings, and improved heat-sinking help minimize distortion while maintaining consistency during long sessions.

Sealed Cabinet for Controlled Low End

A sealed enclosure allows the Footprint 03C to remain compact and shallow, making it ideal for center-channel placement above or below displays. The cabinet is constructed from medium-density fiberboard using stress-assembly techniques for added rigidity and damping, finished in Barefoot’s signature textured gray coating. This design delivers tight, accurate low end without the phase artifacts often associated with ported systems.

Flexible Stereo or Center Use

While designed primarily as a center channel, the Footprint 03C also performs exceptionally well as a stereo pair. Its phase-coherent response, wide imaging, and controlled bass make it a strong choice for compact mixing setups, production rooms, or high-fidelity playback environments where space is limited but accuracy is non-negotiable.

MEME Voice Emulation

MEME voice emulation allows the Footprint 03C to adapt to a wide range of reference needs. With a simple control, you can switch between voicings inspired by classic mix cubes, familiar white-cone nearfields, and consumer hi-fi speakers. This makes it easy to evaluate translation without adding additional monitors, amplifiers, or clutter to the workspace.

SPOC and DSP Integration

SPOC technology places an analog crossover stage ahead of digital conversion, preserving high-frequency detail and improving signal-to-noise performance. Combined with Barefoot’s low-latency DSP engine, the Footprint 03C delivers precise imaging, reduced distortion, and a transparent signal path that supports critical decision-making.

Key Features

• Tri-amplified 3-way active studio monitor.
• Designed for center-channel and immersive audio applications.
• Sealed cabinet design for accurate, controlled low-frequency performance.
• MEME voice emulation for fast translation checks.
• SPOC technology for improved resolution and clarity.

Technical Specifications

• Frequency Response: 42 Hz – 40 kHz (±3 dB), 48 Hz – 22 kHz (±1 dB).
• Bass Response: -3 dB at 42 Hz, Q = 0.707.
• Maximum SPL: 104.5 dB continuous.
• Crossover Frequencies: 400 Hz / 3900 Hz (active).
• Input: Balanced XLR and TRS.
• Input Impedance: 20k ohms.

Amplification and Drivers

• Tweeter: 1-inch ring radiator with rear waveguide chamber (60W).
• Midrange: 3.5-inch aluminum cone (100W).
• Woofers: Dual 6.5-inch aluminum cone drivers (100W).
• Total Amplification Power: 260W.

Power and Physical Specifications

• AC Power Input: 85–265 VAC universal.
• Power Consumption: 12W idle, 340W maximum.
• Dimensions (H × W × D): 20.0 × 7.25 × 9.0 inches.
• Weight: 33 lbs per speaker.
