Barefoot Sound Linear White Footprint 03 Studio Monitor

The Barefoot Sound Linear White Footprint 03 is a tri-amplified, 3-way compact studio monitor combining a fast-transient ported cabinet design with Barefoot’s proprietary SPOC and MEME technologies for a monitor that excels at translation across a wide range of listening contexts. Departing from Barefoot’s traditionally sealed enclosures, the ported bass reflex design achieves a frequency response of 45 Hz–40 kHz while maintaining the cabinet integrity and low-resonance construction standards the brand is known for. Each monitor is powered by three dedicated Class D amplifiers totaling 260 watts—60W for the tweeter, 100W for the midrange, and 100W for the woofer—with total harmonic distortion held below 0.005% at maximum power. The Linear White finish, applied as a precision unsaturated polyester resin coating over a dense MDF enclosure, brings a fresh visual identity to the proven Footprint 03 platform.

Key Features

• Tri-amplified 3-way design — three dedicated Class D amplifier modules (60W tweeter / 100W midrange / 100W woofer) for 260 watts total per monitor; each driver independently optimized
• Fast-transient ported cabinet — side-firing bass reflex design extends low-end response to 45 Hz while maintaining cabinet rigidity; dense MDF construction with stress-assembly techniques minimizes resonance and vibration
• 1-inch ring radiator tweeter — neodymium motor system with copper shorting rings around the voice coil; fabric ring radiator diaphragm in an aluminum enclosure with solid aluminum face plug; improved heat-sink for extended session reliability
• 3.5-inch aluminum cone midrange — high-sensitivity motor with copper shorting rings reduces harmonic distortion; longer excursion capability enables higher output with reduced compression
• 6.5-inch aluminum cone woofer (forward-facing) — driven by a dedicated 100W amplifier; high-sensitivity motor with copper shorting rings for accurate bass reproduction and reduced distortion
• SPOC (Spectrally Optimized Conversion) — patented Barefoot technology that places an analog crossover section before analog-to-digital conversion, allowing high frequencies to pass unattenuated into the converter; yields 5-bit higher resolution and a 15 dB improvement in signal-to-noise ratio
• MEME (Multi-Emphasis Monitor Emulation) Technology — provides multiple monitor voicings from a single pair of speakers, including emulations of mix cube speakers, white-coned speakers, and consumer hi-fi speakers for versatile reference checking
• DSP platform — 3ms latency; optimizes drive levels to enhance low-frequency response, reduce distortion, and improve sonic accuracy
• Max Peak SPL: 105 dB @ 1m — capable output for critical listening at professional monitoring levels
• Linear White finish — unsaturated polyester resin coating precision-applied to a dense MDF enclosure for durability and visual consistency
• Compatible with Triad-Orbit and K&M mounting solutions — supports multi-channel and Atmos mixing room configurations

Specifications

• Type: Tri-amplified 3-way studio monitor
• Frequency Response: 45 Hz–40 kHz
• Max Peak SPL: 105 dB @ 1m
• Total Amplifier Power: 260W per monitor
• Tweeter Amplifier: 60W Class D
• Midrange Amplifier: 100W Class D
• Woofer Amplifier: 100W Class D
• THD: <0.005% at maximum power
• Tweeter: 1 in. ring radiator, neodymium, fabric diaphragm, aluminum enclosure
• Midrange: 3.5 in. aluminum cone
• Woofer: 6.5 in. aluminum cone, forward-facing

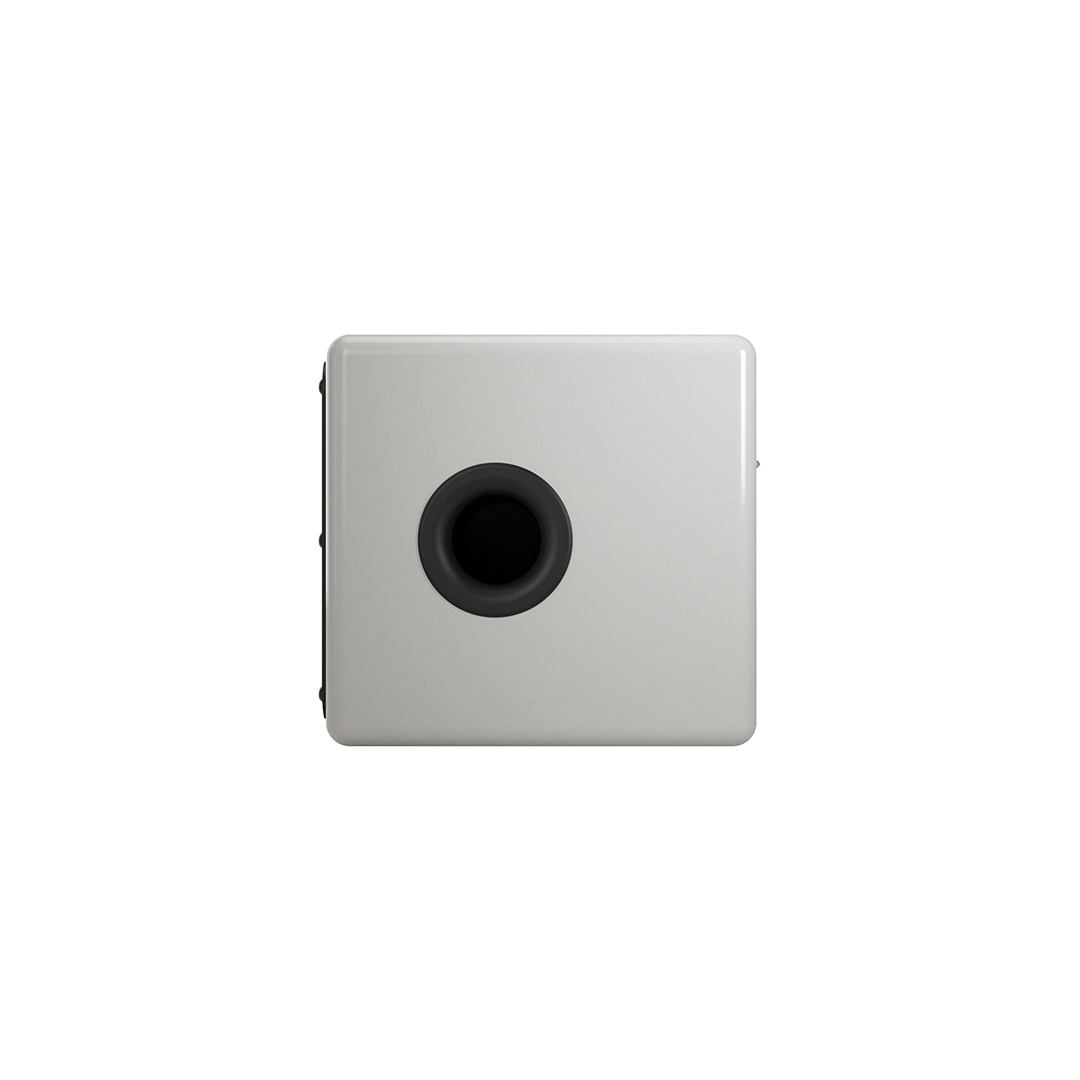

• Cabinet Design: Ported (side-firing bass reflex)
• Cabinet Material: Dense MDF, unsaturated polyester resin Linear White finish
• DSP Latency: 3 ms
• Technologies: SPOC, MEME, Barefoot DSP
• Dimensions: 13.25 in. H × 9 in. W × 9.25 in. D
