Bettermaker Mastering Equalizer

The Bettermaker Mastering Equalizer is a state-of-the-art EQ solution that combines the precision of digital control with the pristine sound of an all-analog signal path. Designed for professional mastering engineers, this EQ delivers outstanding sonic quality with the convenience of instant recall, automation, and seamless DAW integration.

Key Features

• 100% Analog Audio Signal Path: Pristine sound quality with zero compromise.
• USB Connectivity: Easily integrates with MAC/PC for plugin control and automation.
• Advanced Touchscreen Interface: 5-inch capacitive touchscreen with backlight for intuitive control.
• 399 Preset Slots: Unique names, total recall, and A/B comparison.
• Multiple Operating Modes: Stereo, Dual Mono, Mid/Side processing with Focus function.
• Parametric & Passive Filters: Combine modern precision with classic EQ curves.
• Built-in Metering & EQ Curve Display: Real-time frequency analysis and peak/RMS monitoring.

Comprehensive EQ Control

The Bettermaker Mastering Equalizer offers a highly flexible EQ section, allowing for precise tonal shaping:

• Stereo High-Pass Filter: 12 or 24dB/oct slope with adjustable cutoff frequency (10Hz – 240Hz, extended to 6Hz with resonance enabled).
• Four Stereo Parametric Bands: 15dB boost/cut range, variable Q (0.2 – 7):
  • EQ1: 22Hz – 470Hz (bell/shelf)
  • EQ2: 90Hz – 2kHz (bell)
  • EQ3: 480Hz – 10kHz (bell)
  • EQ4: 1kHz – 23kHz (bell/shelf)
• Stereo Passive EQ: Extended high-boost section, including air bands at 20kHz and 28kHz.
• Stereo Low-Pass Filter: 12dB/oct slope with adjustable cutoff frequency (2kHz – 38kHz).
• Adjustable Output Level: +/- 10dB for gain staging.

Advanced Digital Control

While the Mastering Equalizer’s sound is shaped by precision analog filters, capacitors, and inductors, all user interactions occur in the digital domain. This hybrid approach allows for:

• Save and recall presets from the onboard 400-slot memory.
• Instant reset of all parameters.
• Highly precise, repeatable adjustments.
• Seamlessly linked stereo operation for effortless control.
• DAW automation and recall for complete workflow integration.

Front Panel & Touchscreen Interface

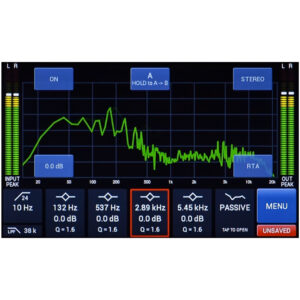

The Mastering Equalizer features a high-resolution LCD touchscreen, providing a user-friendly experience with real-time EQ curve representation, filter adjustments, and metering.

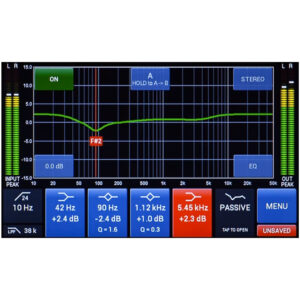

• Live EQ curve representation for visual precision.
• Touch-and-drag filter adjustments, including a unique Frequency Search function.

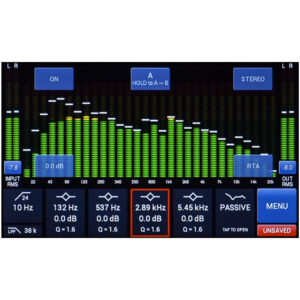

• Peak/RMS level monitoring and FFT real-time analysis.
• On-screen QWERTY keyboard for naming and saving presets.
• USB connectivity for DAW control via the Bettermaker Mastering Equalizer Plugin.

Technical Specifications

• Frequency Response: 20Hz to 20kHz (+/- 0.2 dB)
• Dynamic Range: 102dB (+23dBu, 22kHz BW)
• THD+N: 0.03% @ +4 dBu, 0.06% @ +18 dBu, 20 kHz BW
• CMRR: Max 85 dB @ 3 kHz, Min 52 dB @ 20Hz, 20 kHz BW
• Crosstalk: Min -100 dB @ 30Hz, Max -65 dB @ 20kHz, +18 dBu, 20 kHz BW
• Balanced Stereo Input (XLR): 23dBu max input level (THD < 0.2%)
• Balanced Stereo Output (XLR): 23dBu max output level (THD < 0.2%)
• Operating Level: +4dBu
• Input Impedance (Differential): 48kΩ (for balanced signal)
• Output Impedance: 50Ω + 50Ω (electronically balanced)
• Power Supply: Advanced linear power supply with toroidal AC mains transformer
• Power Consumption: Max 20W
• Enclosure: 2U rackmount, 230mm deep
• Voltage: 115/230V switch
• Shipping Weight: 5.5 kg, 62x37x21 cm

Why Choose the Bettermaker Mastering Equalizer?

The Bettermaker Mastering Equalizer is an essential tool for modern mastering engineers seeking precision, flexibility, and speed. By combining a fully analog signal path with the convenience of digital control, this EQ allows for effortless recall, automation, and pristine sound quality.

Whether you’re working in stereo, dual mono, or mid/side configurations, the Bettermaker Mastering Equalizer delivers a smooth and transparent mastering-grade EQ with the ability to sculpt and refine your mixes with surgical precision.
