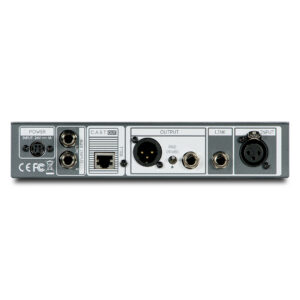

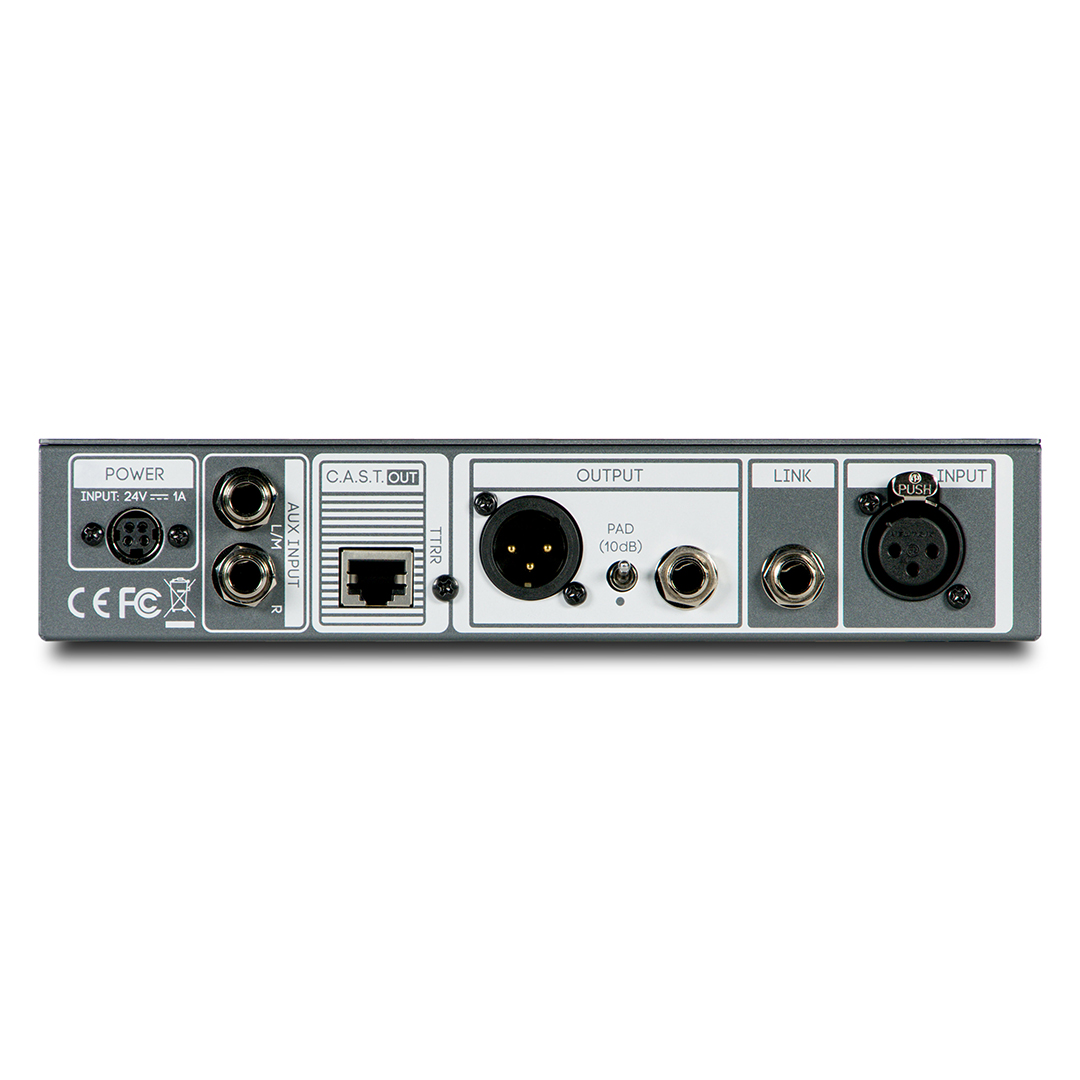

Cranborne Camden EC1 rear, rackmount form, black finish, labeled power, Ethernet, XLR, 1/4 jacks, and link ports visible.

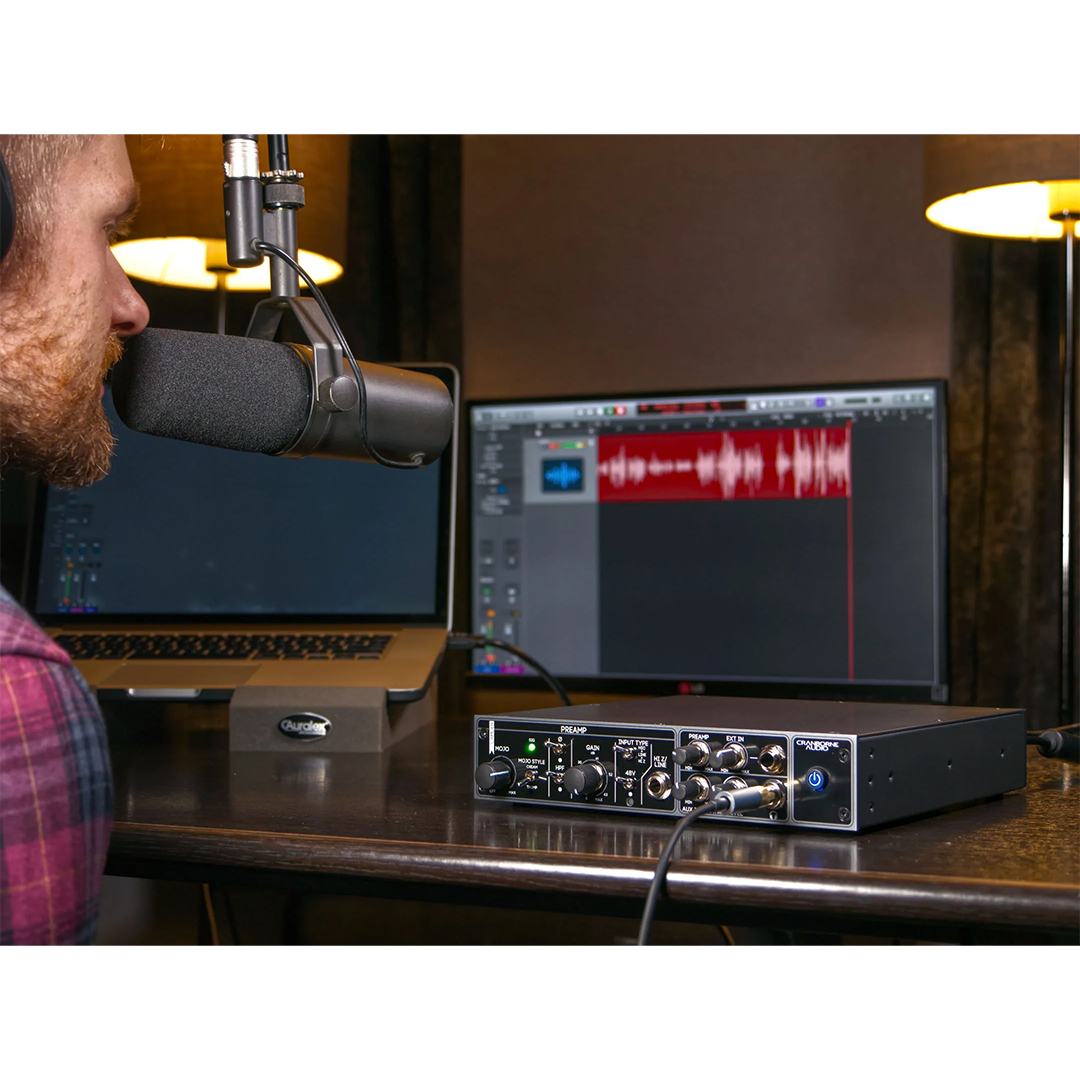

Person recording at desk with large mic, Cranborne Camden EC1 interface, laptop, and monitor showing audio waveforms.

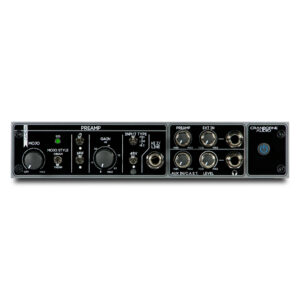

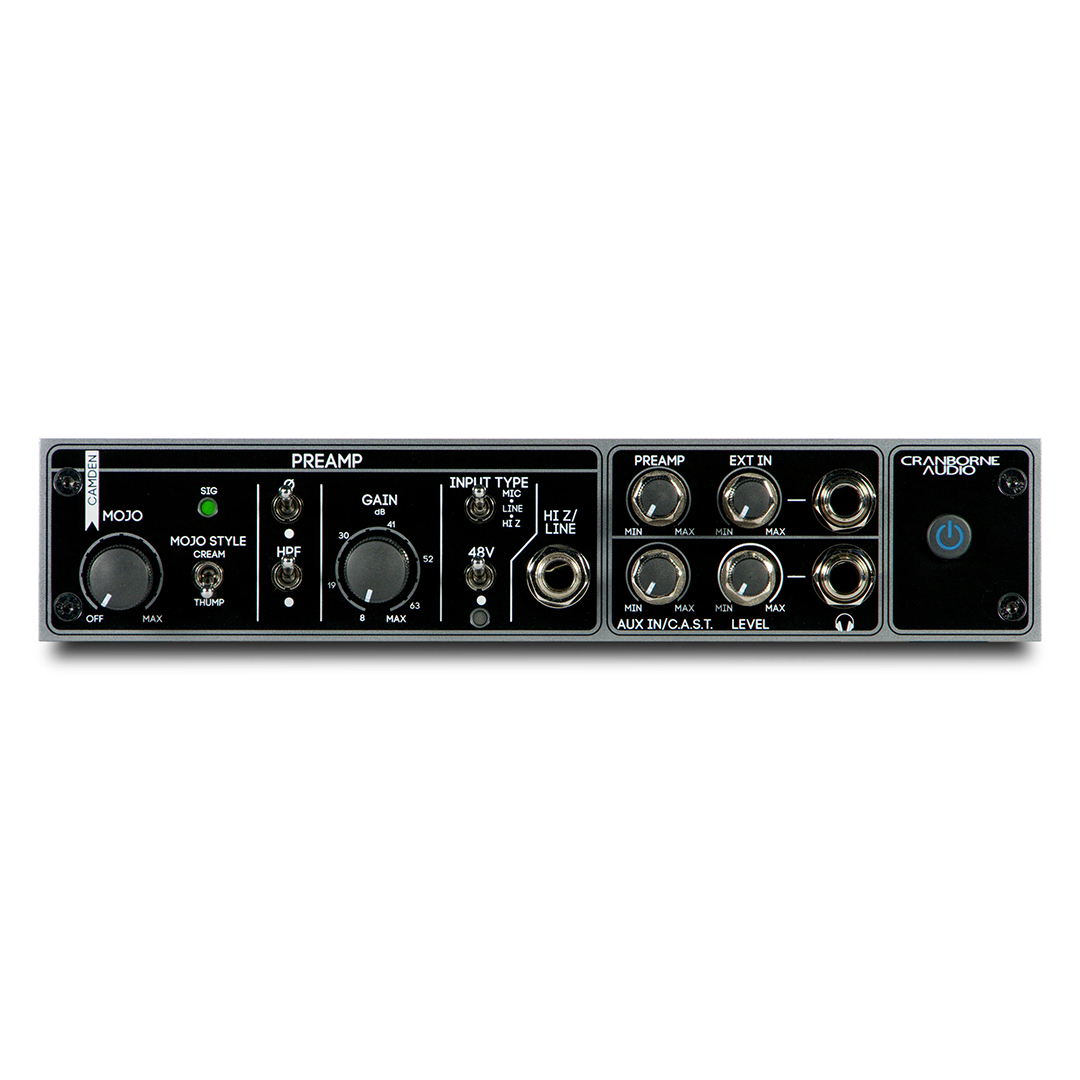

Cranborne Camden EC1 rackmount audio preamp, black chassis, front panel with labeled knobs, switches, LEDs, and jacks.

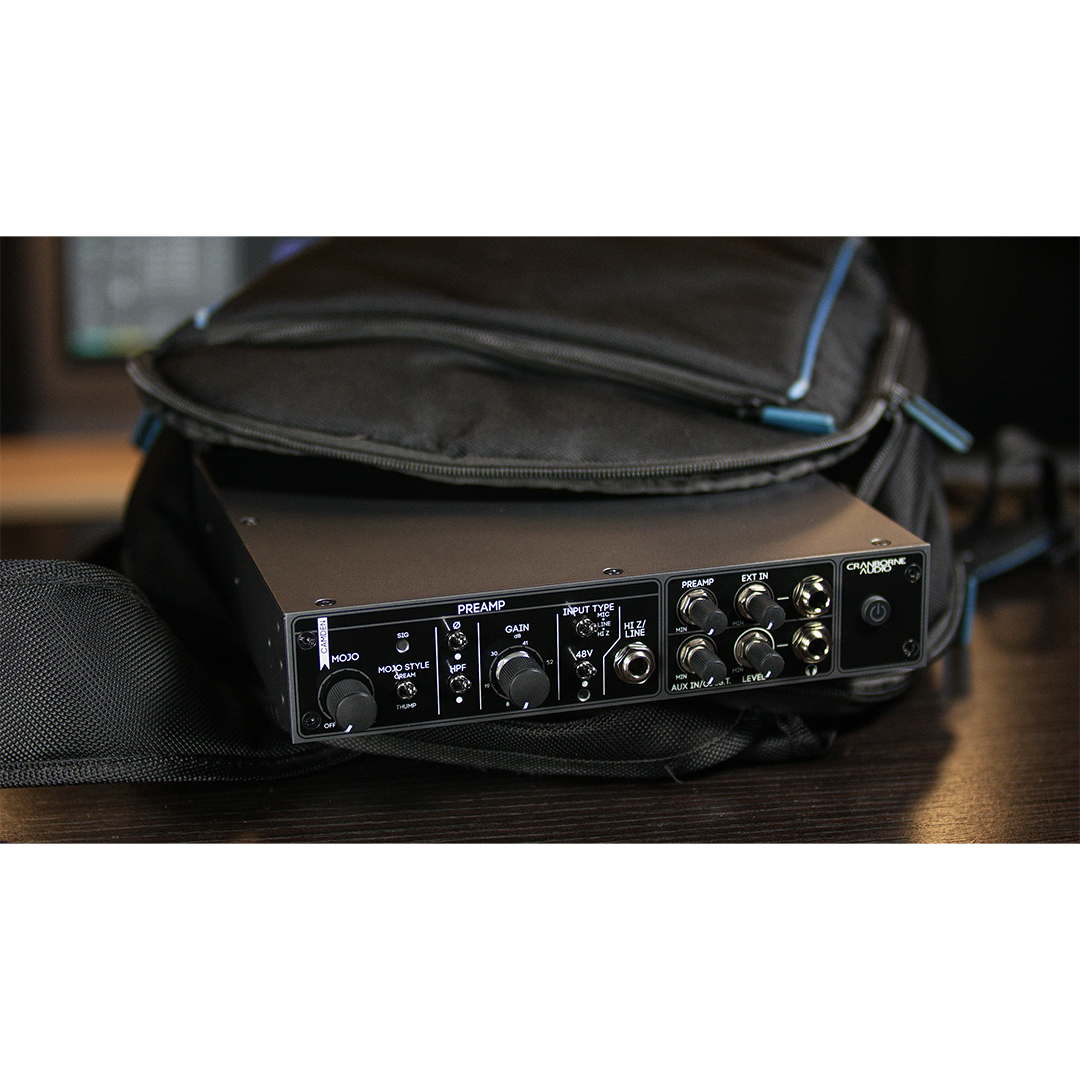

Cranborne Camden EC1 black audio preamp, partially out of black bag on dark wood, with knobs and ports visible.
SKU Camden EC1 Categories , Tags , Brand:
Condition: Brand New

Cranborne Camden EC1

0 reviews

$499.00

or pay $83.17/month for 6 months* with the Providence Synchrony Card

Free shipping to the lower 48 states for orders of $99 and up.
Easy, Flexible Financing

We’ll match competitor 0% financing offers —
and accept most Synchrony cards.

Questions About This Product?

Call +1 (323) 617-9393

Chat with us

Email info@provsv.com

Black ear outline with three sound wave lines on white background, symbolizing listening; ideal for product templates.

Try It With Peace Of Mind

Book an in-studio demo and test the gear in your own space ▸
READY TO SHIP
This product is in stock at our warehouse and will ship within 24 business hours of payment clearing

In stock

Cranborne Camden EC1

The Ultimate Performer’s Front End

Camden EC1 is an award-winning Camden preamp with Mojo analogue saturation, and a reference-quality headphone amplifier with a discrete line mixer built-in to a desktop-friendly, half-rack chassis.

Award-winning Preamp Performance

Connect Camden EC1 to your audio interface and experience the award-winning sound of the Camden preamp design. Providing up to 68.5dB of pristine, clean gain, Camden EC1 is the perfect preamp to pair with low-gain dynamic microphones and ribbon mics.

Powerful Headphone Monitoring

Featuring a reference-grade, high-powered headphone amp with a dedicated line mixer, Camden EC1 gives you TRUE, zero latency, mastering-quality monitoring of your preamp that is effortlessly mixed with playback from your DAW.

3 World-Class Preamps In 1

Thanks to its custom ‘Mojo’ harmonic saturation control, Camden EC1 offers 3 flavours of preamp tone that can be dialled to taste.

With Mojo bypassed, you can experience Camden EC1’s award-winning transparency for capturing mic, line, and instruments with elite-level detail and non-existent noise/distortion.



  • Discrete mic/line/hi-z preamp featuring the award-winning ‘Camden’ topology from the Camden 500 Preamp and Signal Processor for 500 series
  • Audio performance at the near-theoretical limits of noise, distortion, and phase/frequency linearity at all gain settings
    • EIN: <-129.5dBu, 150 Ohm source, unweighted, <-135.5dBu, Inputs common, unweighted
    • THD+N: <0.00025% (1kHz, 35dB gain, +24dBu out)
    • Intermodulation Distortion: <0.0006% (50Hz and 7kHz, 35dB gain, +20dBu out)
    • Phase Shift: <2.75° (20Hz to 20kHz, 40dB gain), <6° (20Hz to 20kHz, Max Gain)
    • Freq. Response: ±0.7dB (<1 Hz to >1000 kHz, 35dB gain), ±1dB (<5 Hz to >200 kHz, Max Gain)
  •  Unique 48v status LED
    • 48v LED Lights Orange to indicate voltage charging or dissipating to prevent damage to ribbon microphones and to ensure voltage is fully charged before use
    • 48v LED lights RED when voltage is fully charged and ready to use
  • ‘Mojo’ analogue saturation circuits with variable control, true bypass, and 2 discrete styles – Thump and Cream
    • Thump excites low-end content by boosting lower odd/even harmonics from a range of 160Hz to 20Hz and below
    • Cream boosts odd/even harmonics whilst also reducing the amplitude of the fundamental frequencies and applying typical transformer-style transient taming
  • Discrete headphone mixers with independant CH 1, Ext Input, and Aux Input level controls
    • Monitor the Camden preamp directly with headphones during mic placement to find the sweet spot of the instrument/source
    • Create zero-latency artist mixes by combining the Camden preamp with external playback from Aux Input 1/4” jacks on Camden EC1’s rear panel
    • Use the reference grade headphone amplifier for critical listening by sending stereo mixes from the interface into the Aux input and monitoring directly using Camden EC1’s headphone output
  • Reference-quality, high-powered headphone amplifier
    • Freq. Response: <±1dB, <1 Hz to >100 kHz
    • Output Impedance: 0.33 Ohms
    • THD: 0.0003%, 1kHz
    • Output Wattage: 2x250mW @ 600 Ohm, 2x450mW @ 220 Ohm, 2x250mW @ 100 Ohm
  • Balanced XLR output and impedance balanced 1/4” jack outputs for maximum connectivity into audio interfaces and other downstream equipment
    • -10dB PAD to attenuate preamp output for lowheadroom audio interfaces
  • Dedicated Impedance balanced 1/4″ jack Link output for true instrument DI functionality and splitting instrument inputs to balanced or unbalanced amplifiers and effects
  • C.A.S.T. OUT port for connecting into 500R8/500ADAT
    • Transmit Camden EC1’s preamp and Ext Input directly into 500R8 and 500ADAT’s 500 series modules inputs for recording/processing
    • Receive a stereo mix generated from 500R8/500ADAT and monitor using Camden EC1’s headphone mixer
    • All managed and distributed via a single shielded Cat 5e, Cat 6, or Cat 7 cable
  • External high-current 24v, 1.25a power supply with latching connector



Technical Specifications

All specifications are typical performance unless otherwise noted. All specifications are subject to change at any time. Tested with Audio Precision APx555.
Preamp
Test Signal Path APx555 (Line Out) – Input 1 – Line Output – APx555 (Line In)
Input Impedance Mic= 8.9 kOhms 48v Off, 5.4 kOhms 48v ON,

Line = 24.3 kOhms,

Hi-Z= 1.5 MOhm Unbalanced, 3 MOhm Balanced
Max Input Level Mic = +17.6dBu (<0.003% THD),

Line = +26.5dBu (<0.02% THD),

Hi-Z = +24dBu (<0.02% THD)
Minimum Gain Mic= 8dB, Line = 0dB, Hi-Z = 3dB
Maximum Gain Mic = 68dB, Line = 60dB, Hi-Z = 63dB
Equivalent Input Noise (EIN) <-129.5dBu (150 Ohm source, unweighted),

<-131dBu (150 Ohm source, A-weighted),

<-135.5dBu (Inputs common, unweighted)
Frequency Response ±0.7dB (<1 Hz to >1000 kHz, Min Gain),

±0.7dB (<1 Hz to >1000 kHz, 35dB Gain),

±1dB (<1.5 Hz to 900 kHz, 63dB Gain),

±1dB (<5 Hz to >200 kHz, Max Gain)
Phase Shift <2.75° (20Hz to 20kHz, 40dB Gain),

<4° (20Hz to 20kHz, 63dB Gain),

<6° (20Hz to 20kHz, Max Gain)
THD+N <0.00025% (1kHz, 35dB Gain, +24dBu out)
Intermodulation Distortion <0.0006% (50Hz and 7kHz, 35dB gain, +20dBu out),

<0.0005% (50Hz and 7kHz, 35dB gain, +15dBu out)
Hi-Pass Filter (HPF) 80Hz, -3dB, 12dB/Oct
CMRR >70dB, typ >85dB, 35dB gain, 10-20kHz, 100mV Common mode
Slew Rate 20V/uS, 35dB gain, +25dBu out
48v LED Thresholds Off = 48v Off, voltage fully discharged

Amber = 48v voltage charging/discharging

Red = 48v fully charged
Signal LED Meter Thresholds Blue = -20dBu

Green = -12dBu

Amber = +21dBu

Red = +24dBu
Max Output Level Balanced XLR = +27.5dBu (<0.002% THD, 30dB Gain)

Impedance Balanced ¼” Jack = +21.5dBu (<0.002% THD, 30dB Gain)
Output Impedance Balanced XLR = 150 Ohm

Impedance Balanced 1/4” Jack = 150Ohm Balanced, 75 Ohm Unbalanced
Link Max Output Level Impedance Balanced 1/4” Jack = +21.8dBu (<0.006% THD)
Link Output Impedance Impedance Balanced 1/4” Jack = 75 Ohm Unbalanced, 150 Ohm Balanced (Buffered Output)
Headphone Amplifier
Test Signal Path APx555 (Line Out) – AUX Input – Headphone Output – APx555 (Line In)
Frequency Response -1dB, <1Hz to >70kHz
THD <0.0006% (-104.4dB) @ +20dBu, 1kHz, A-weighted, 300 Ohm load
THD+N <0.00085% (-101.4dB) @ +20dBu, 1kHz, A-weighted, 300 Ohm load
Output Impedance 0.33 Ohms
Output Wattage 250mW x 2 @ 600 Ohms, 1kHz
650mW x 2 @ 220 Ohms, 1kHz
1.21W x 2 @ 100 Ohms, 1kHz
500mW x 2 @ 32 Ohms, 1kHz
Dynamic Range 114.5dB A-weighted, AES17 method, 20Hz – 20kHz, 300 Ohm load
Noise Floor -93.5dBu A-weighted, 20Hz – 20kHz, 300 Ohm load
Power
AC Requirements 100V – 240V AC, 50 – 60 Hz
Total Power Consumption 24v, 1.25A DC, 30W
Environmental
Operating Temperature +1 to 35 degrees Celsius
Storage Conditions -20 to 50 degrees Celsius
Dims/Weights
Unit
Width 220mm (8.6″) (Rackmount Kit Available)
Height 44.45mm (1.75″) (1u)
Depth 240mm (9.5″)
Unit Weight 1.8kg (3.9lb)
Shipping Carton
Width 360mm (14.2″)
Height 120mm (4.7″)
Depth 340mm (13.4″)
Carton Weight 2.6kg (5.7lb)
