Cranborne Audio Camden EC2 – NAMM B-Stock
The Cranborne Audio Camden EC2 is a two-channel preamp, signal processor, and dual headphone mixer built to deliver exceptional transparency, analog warmth, and studio-grade monitoring. This NAMM B-Stock unit has been fully tested and is backed by a full satisfaction guarantee. Featuring award-winning Camden preamp topology, dual Mojo analog saturation circuits, and two reference-quality headphone amps, the EC2 is a versatile tool for tracking, critical listening, and zero-latency monitoring in both studio and live environments.
Key Features
- Two discrete mic/line/hi-z preamps with Camden 500 topology
- Near-theoretical noise and distortion performance at all gain settings
- Selectable ‘Mojo’ analog saturation: Thump and Cream styles with variable control
- Unique 48V status LED for safe ribbon mic operation
- Dual headphone mixers with independent CH1, CH2, and Aux input controls
- Stereo switch for L/R panning in headphone monitoring
- Reference-grade headphone amps for critical listening and zero-latency monitoring

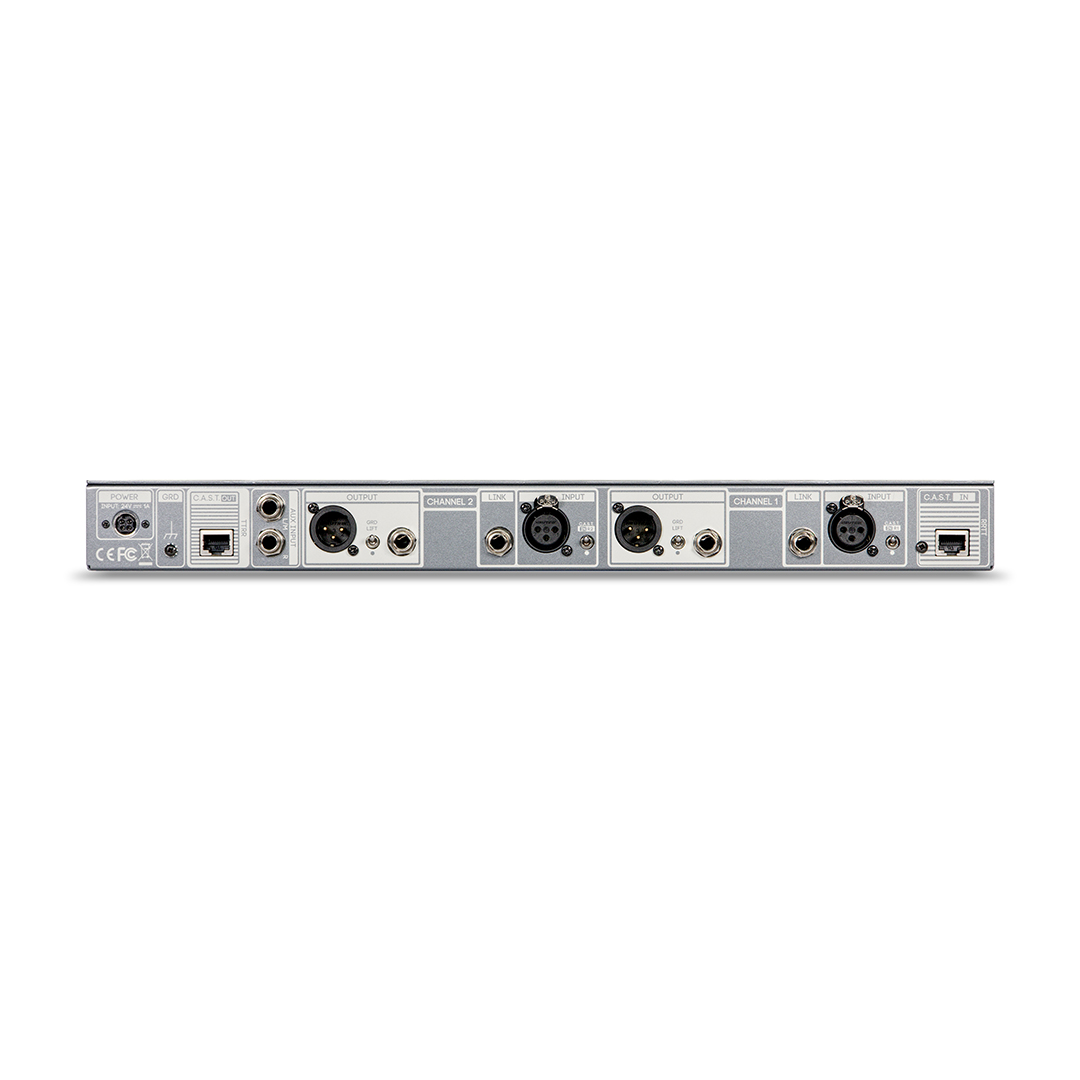

- Balanced XLR and impedance-balanced ¼” outputs
- Dedicated ¼” Link outputs for DI and amp/effects routing

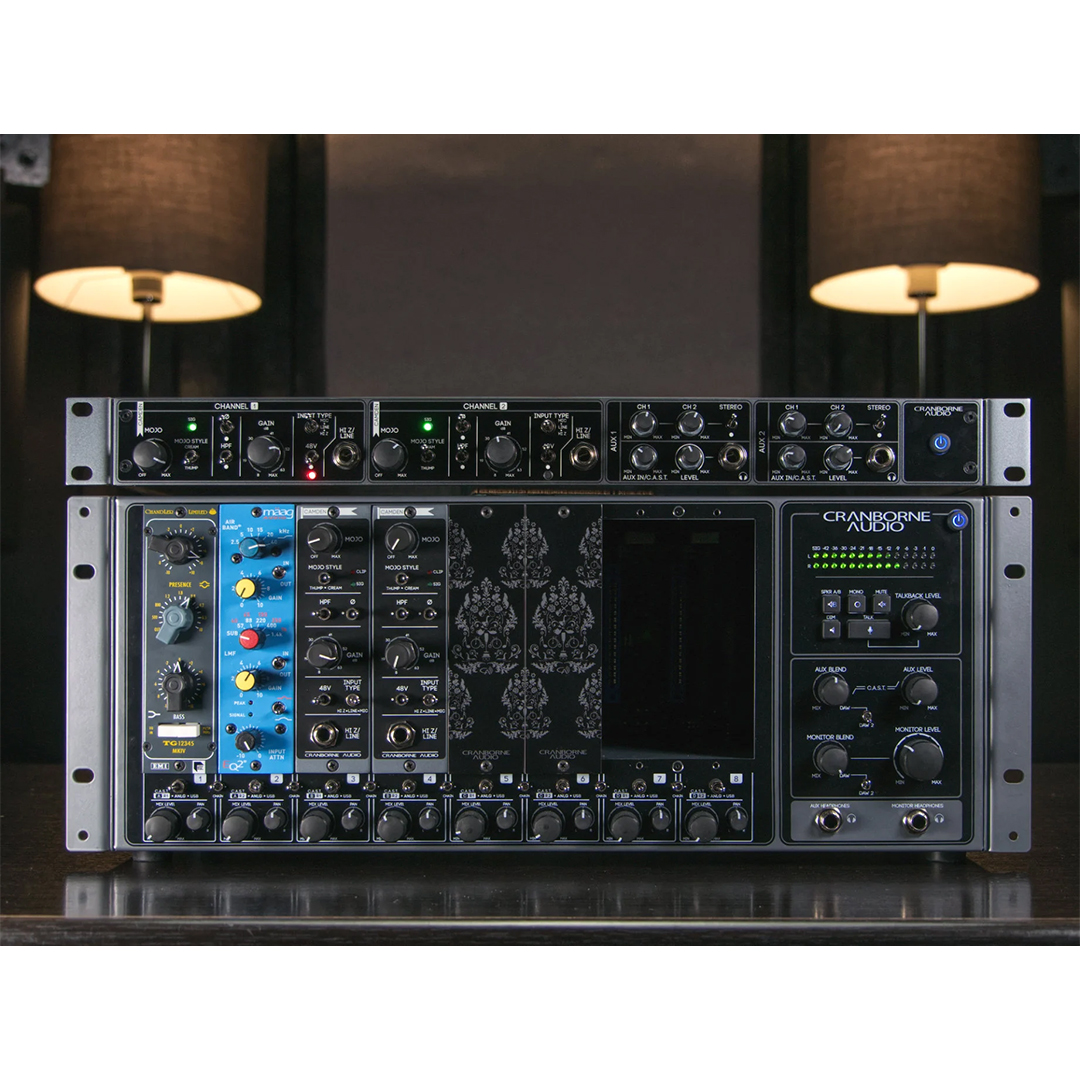

- C.A.S.T. connectivity for integration with 500R8, 500ADAT, N22, or N22H modules
- External high-current 24V, 1.25A power supply with latching connector
Specifications
- EIN: <-129.5dBu (150 Ohm source), <-135.5dBu (inputs common, unweighted)
- THD+N: <0.00025% (1kHz, 35dB gain, +24dBu out)
- Intermodulation Distortion: <0.0006%
- Phase Shift: <2.75° (20Hz–20kHz @ 40dB gain)
- Frequency Response: ±0.7dB (<1 Hz–>1000 kHz @ 35dB gain)
- Headphone Amp Output: 2x250mW @ 600Ω, 2x450mW @ 220Ω, 2x250mW @ 100Ω
- Headphone Amp THD: 0.0003% (1kHz)
- Headphone Amp Output Impedance: 0.33Ω
- Headphone Amp Frequency Response: ±1dB (<1 Hz–>100 kHz)
