Drawmer 4x4R

Condition: New
SKU 4x4R Categories , Tag Brand:
Condition: New

Drawmer 4x4R

Rackmount Active Splitter

$1,599.00

or pay $266.50/month for 6 months* with the Providence Synchrony Card

Questions About This Product?

Call +1 (323) 617-9393

Chat with us

Email info@provsv.com

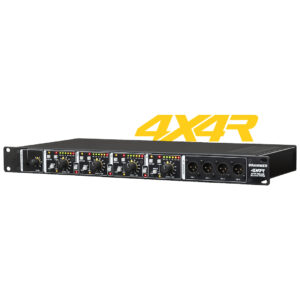

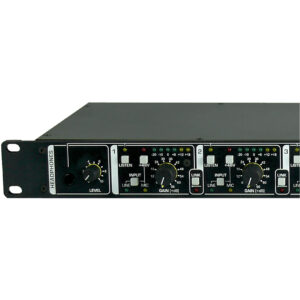

Drawmer 4x4R Rackmount Active Splitter

Signal Splitter & Pressbox

The Drawmer 4x4R is a 4 in/16 out mic/line signal splitter with extremely high audio quality and a robust build, making it the ideal tool for live sound, broadcast coverage, sports events, live recording, press conferences, corporate events, and any situation requiring high-quality audio distribution. The 4x4R features 4 studio-grade mic/line pre-amps, each providing up to 66dB of gain, along with 16 balanced output stages with optional transformer isolation. All of this is housed in a 1U rackmountable unit.

A Multi-Purpose Tool for Signal Distribution

Inputs

  • 4 Studio-grade mic/line pre-amps.
  • Independent input bargraph metering.
  • 66dB of variable gain.
  • 48V phantom power.
  • Mic/line switching.
  • Headphone monitoring facility.

Outputs

  • 4 outputs per channel.
  • Active splitting for long cable runs.
  • Optional transformer isolation.
  • Linking capabilities.

Configurations

  • 1x 1 IN/16 OUT.
  • 2x 1 IN/8 OUT.
  • 1x 1 IN/12 OUT plus 1 IN/4 OUT.
  • 4x 1 IN/4 OUT.

Features

  • 4 studio-grade mic/line pre-amps with 66dB of variable gain.
  • Independent input bargraph metering for precise monitoring.
  • 48V phantom power for condenser microphones.
  • Mic/line switching and headphone monitoring for flexibility.
  • 4 outputs per channel for versatile signal distribution.
  • Active splitting allows for long cable runs without signal degradation.
  • Optional transformer isolation for enhanced audio quality.
  • Flexible configuration options for various signal distribution needs.
Description Value
Maximum Input Level +21dBu
Input Impedance (Mic) 1k Ohms
Input Impedance (Line) 4.1k Ohms
Maximum Output Level +21dBu
Output Impedance 50 Ohms
Bandwidth (-1dB) <13.4Hz to 46kHz
Bandwidth (-3dB) <8Hz to 85kHz
Mic EIN (Ref 150R, 0dB, Audio Band) -128dBu
Distortion (THD) – Line Input @ +4dB 0.005%
Line Noise (Audio Band, Ref +4dB) -100dBu
Line Noise (Full Band, Ref +4dB) -93dBu
Crosstalk (Adjacent Channels @ 20kHz) >87dB
Power Requirements 230V or 115V at 50-60Hz, 20VA
Fuse Rating (@ 230V and @ 115V) T500mA
Fuse Type 20mm x 5mm, Class 3 Timed-Blo, 250V working
Case Dimensions (Width x Height x Depth) 482mm x 44mm x 223mm
Weight (without isolating transformers) 2.8kg
Weight (with isolating transformers) 3.3kg
