Drawmer DMS-6 DClock-R

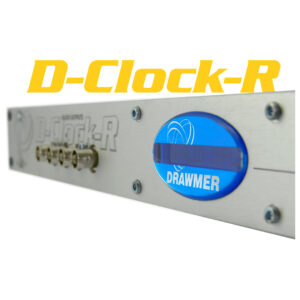

Drawmer DMS-6 DClock-R Dual Redundant Clock Distribution

The Drawmer DMS-6 DClock-R is a dependable dual redundant clock distribution unit designed for providing word clock measurement and distribution in studio recording, live, and broadcast environments. With reliability and stability as a core focus, the DClock-R ensures consistent performance, making it ideal for critical applications where uninterrupted clock distribution is essential.

Designed for Live & Broadcast Environments

The DClock-R is engineered for fail-safe operation, incorporating dual redundancy for both power supplies and auto-sensing clock inputs, ensuring that the show will continue even in the face of technical issues. This dual redundancy makes the DClock-R a reliable solution for live sound and broadcast environments where reliability is imperative.

Dual Redundant Power Supply

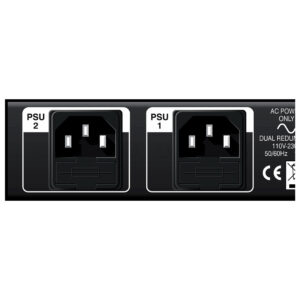

The DClock-R is equipped with two identical, independent power supply units, offering dual redundancy for continuous operation. In critical situations where power must be maintained, the load is shared between both supplies, providing uninterrupted power even if one supply fails. The two universal voltage filtered mains power inlets ensure consistent and reliable operation.

High Accuracy LCD Display

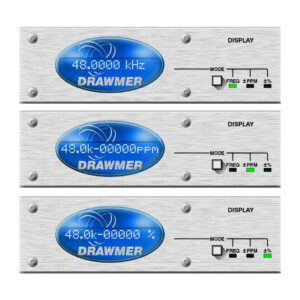

The DClock-R features a 16-character blue LCD display that provides reference measurement of the incoming sample rate with an accuracy of 2ppm. The display shows the information in three formats: actual frequency (to one decimal place), nominal frequency with +/- ppm error, or nominal frequency plus percentage of pull up or pull down, allowing for precise clock monitoring and control.

Auto-Sensing Dual Redundant Clock Inputs

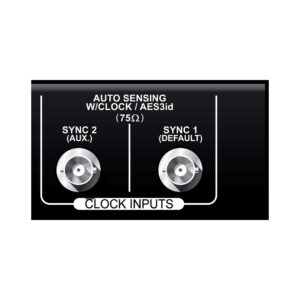

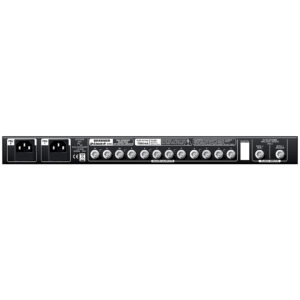

The DClock-R includes two clock inputs—a default and an auxiliary—capable of locking onto both word clock and AES-3id signals. The source is automatically selected based on the type and quality of the signal, ensuring continuous operation and added dependability. Twelve BNC clock outputs are located on the rear panel, with an additional four outputs on the front panel for quick patching to other digital devices, providing versatile connectivity for any professional setup.

Features

• Dual Redundant Power Supply via 2 x universal voltage filtered mains power inlets for continuous operation & reliability.
• D-Clock-R Power Supplies providing Dual Redundancy.
• LCD Display with 3 sample rate measurement modes and accurate to 2ppm.
• Auto-Sensing Dual Redundant WordClock/AES3id BNC Inputs provide continuous operation and added dependability.
• Two inputs capable of locking on to both word clock and AES-3id.
• Twelve BNC clock outputs are situated on the rear panel with a further four on the front panel for quick patching to other digital devices.
• Classic Drawmer Build Quality with Rugged Steel Chassis and Aluminium Front Panel.
• Designed and manufactured by Drawmer in the UK.

In the interests of product development, Drawmer reserve the right to modify or improve specifications of this product at any time, without prior notice.
