Drawmer KICK BOX Portable Active Splitter

Drawmer KICK BOX: Portable Tough Pressbox

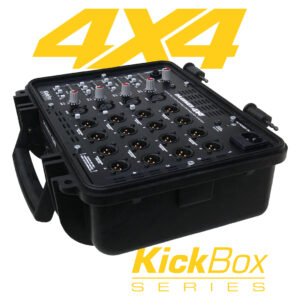

The Drawmer KICK BOX 4×4 is an ‘all terrain’ 4-in/16-out mic/line signal splitter. With extremely high audio quality, robust build, and exceptional portability, the KICK BOX 4×4 is the perfect tool for providing multiple outputs for live sound, broadcast coverage, sports events, live recording, press conferences, corporate events, and any situation that requires the distribution of high-quality audio. Featuring four studio-grade mic/line preamps, each providing up to 66dB of gain, and 16 balanced output stages with optional transformer isolation, the KICK BOX is designed for reliable performance in any environment. It is supplied in a road-proof case with a removable lid for easy access to all controls and connections.

Multi-Purpose Portable Tool

Inputs

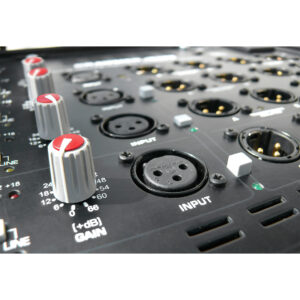

  • 4 studio-grade mic/line preamps
  • Independent input bargraph metering
  • 66dB of variable gain
  • 48V phantom power
  • Mic/line switching
  • Headphone monitoring facility

Outputs

  • 4 outputs per channel
  • Active splitting for long cable runs
  • Optional transformer isolation
  • Transformer loaded LED status
  • Linking capabilities

Flexible Configuration Options

  • 1 x 1 IN/16 OUT
  • 2 x 1 IN/8 OUT
  • 1 x 1 IN/12 OUT plus 1 IN/4 OUT
  • 4 x 1 IN/4 OUT

Other Features

  • Portable and interstackable design
  • Removable lid for easy access and cable routing

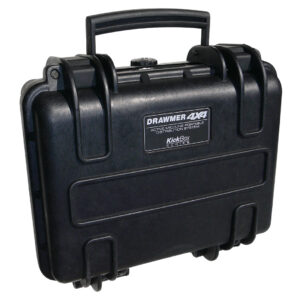

  • Compact, self-contained road-proof case
  • Dust, water, and corrosion proof when locked
Description Value
Maximum Input Level +21dBu
Input Impedance Mic: 1k Ohms
Line: 4.1k Ohms
Maximum Output Level +21dBu
Output Impedance 50 Ohms
Bandwidth <13.4Hz to 46kHz -1dB
<8Hz to 85kHz -3dB
Mic EIN Ref 150R, 0dB, Audio Band: -128dBu
Distortion THD Line Input @+4dB: 0.005%
Line Noise Audio Band (Ref +4dB): -100dBu
Full Band (Ref +4dB): -93dBu
Crosstalk Adjacent Channels @20kHz: >87dB
Power Requirements 230Volt or 115V at 50-60Hz, 20VA
Fuse Rating @ 230Volt: T500mA
@ 115Volt: T500mA
Conforming to IEC 127-2
Fuse Type 20mm x 5mm, Class 3 Timed-Blo, 250V working
Case Dimensions (Depth x Width x Height) 270mm x 305mm x 144mm
Weight Without isolating transformers: 3.8kg
With isolating transformers: 4.3kg

In the interests of product development, Drawmer reserve the right to modify or improve specifications of this product at any time, without prior notice.
