AES Grade 1 Master Clock
$1,099.00
or pay $183.17/month for 6 months* with the Providence Synchrony Card
We will support you to the best of our ability for as long as you own anything purchased from us.
Enjoy an additional year of warranty on all New items. We’re so confident in the quality of our products that we go the extra mile to ensure your peace of mind.
It’s pretty much a given these days, but we include free shipping on everything except oversized items and orders under $100 before tax.
The Drawmer M-Clock Lite is a high-stability master clock generator designed for professional use, featuring forward compatibility with high-speed clocks predicted for the future. Despite its streamlined feature set, the M-Clock Lite is a robust clock generator that delivers reliable performance without unnecessary complexity.
The M-Clock Lite features an AES Grade 1 master clock generator, ensuring a long-term frequency accuracy of +/- 1ppm. Designed with simplicity in mind, the M-Clock Lite provides an efficient, high-quality clock generator that meets the requirements of most professional studios without additional surplus features.
The M-Clock Lite offers clock rates of 44.1, 48, 88.2, 96, 176.4, 192, 352.8, and 384kHz, ensuring extremely low jitter for reliable performance. Many clock generators are complicated and overloaded with features, but the M-Clock Lite is built for efficiency, stability, and high performance, making it an excellent fit for most studio environments.

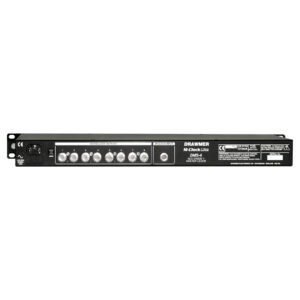

The M-Clock Lite is equipped with ten outputs: eight located at the rear of the unit and two on the front panel for convenient connection of portable equipment. This feature ensures flexibility for different studio setups, allowing for simple, reliable clock distribution.
For even greater versatility, the M-Clock Lite includes an external clock input, allowing users to easily select an alternative clock source without having to re-route clock cables. This simplifies workflow and provides greater flexibility for clock management.
Description | Value |
---|---|
Internal Clock Generator | 2 x Temperature Compensated Xtal Oscillators (TCXOs) |
AES11 GRADE 1 Stability, Tolerance | +/-1ppm (0-60°C), +/-1ppm (15-30°C) |
Phase Noise | -130 dBc/Hz @ 1kHz |
Word Clock Inputs | 1 x BNC (Rear Panel) |
Input Impedance | 75 Ohms |
Word Clock Outputs | 8 x BNC on Rear Panel, 2 x BNC on Front Panel |
Output Impedance | 33 Ohms |
All outputs selectable between | 44.1, 48, 88.2, 96, 176.4, 192, 352.8, and 384kHz |
Power Supply | Internal, Universal Input |
Power Requirement | 15W |
Fuse Rating | All Voltages: T315mA, Conforming to IEC 127-2 |
Fuse Type | 20mm x 5mm, Class 3 Timed-Blo, 250Volt working |
Case Depth | 145mm |
Case Width | 482mm |
Case Height | 44mm |
Weight | 1.76kg |
