Drawmer MC2.1 Monitor Controller

Accurate, Transparent & Versatile

It is imperative that what you record is exactly what you hear – this is the philosophy that is at the heart of the design of the MC2.1 Monitor Controller.

With the Drawmer MC2.1 Monitor Controller incorporated into your system you combine the clarity, fidelity and transparency of the highest quality monitoring circuit with the complexity of a host of mix checking features. It is versatile and intuitive, but above everything else, where the Drawmer MC2.1 excels is in its accuracy and ability to faithfully reproduce what has been recorded.

The Product that Raised the Bar for Budget Monitor Controllers

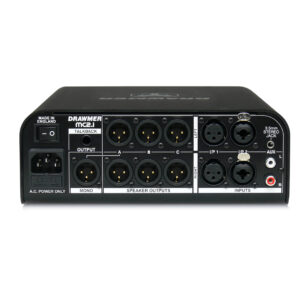

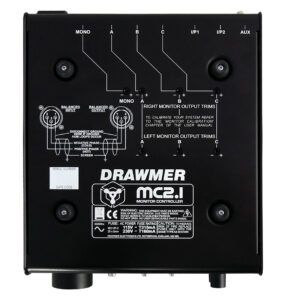

The MC2.1 incorporates four inputs with three stereo balanced speaker outputs, plus a dedicated mono speaker/sub-woofer output each with individual left/right trims under the unit to provide complete control over level matching. The active circuit has been designed to faithfully produce the audio signal whilst removing many of the problems that a passive circuit will bring. In addition, it has a host of mix checking features not often found on other controllers, such as individual left/right cut, as well as two separate headphone amplifiers and a talkback facility, making the MC2.1 a true engineers tool.

Unerring Accuracy

Whether you’re mastering a CD/DVD, recording, checking a mix for balance and EQ, doing A/B comparisons, plus a multitude of other tasks, you’ll have spent weeks designing the perfect studio environment and a fortune on active speakers, dynamics processors, various preamplifier & microphone combinations as well as a whole room full of other gear. One thing is for sure – a monitor controller is central to every recording setup and probably the most important element of the entire signal chain – providing the ‘reference’ listening signal that enables the user to achieve the optimal mic placements, the perfect balance and EQ etc. There is one thing that should always be absolutely guaranteed – that you can rely on the accuracy of your monitor controller.

Tough & Secure

Whilst being smart and stylish the rugged enclosure will withstand the knocks and bumps of the studio, and, coupled with the high-quality components used, the MC2.1 is built to last.

Description Value
Maximum Input Level 21dBu
Maximum Output Level before clipping 26dBu
Dynamic Range (@ unity gain) 118dB
Crosstalk (L/R @ 1kHz) >85dB
Crosstalk (Adjacent Input) >95dB
THD & Noise (unity gain, 0dBu input) 0.0014%
Frequency Response 20Hz-20kHz +/- 0.2dB
Phase Response 20Hz-20kHz +/- 2 degrees
Power Requirements 115V or 230V at 50-60Hz, 20VA (Voltage set by internal voltage switch)
Fuse Rating (@ 115V) T315mA
Fuse Rating (@ 230V) T160mA
Fuse Type 20mm x 5mm, Class 3 Slo-Blo, 250V working
Case Dimensions (Depth x Width x Height) 272mm x 215mm x 81mm
Weight 2.5kg

In the interests of product development, Drawmer reserve the right to modify or improve specifications of this product at any time, without prior notice.
