Drawmer SP2120 Speaker Protector

Conform to Noise at Work Regulations – Key-Holder Access Only

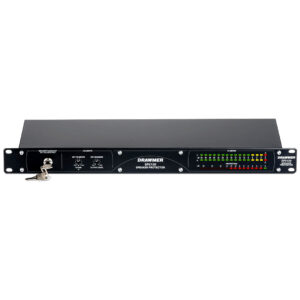

The Drawmer SP2120 Speaker Protector is a 1U, two-channel processor that offers strict level control and tremendous peace of mind for contractors, installers, and venues. Its primary purpose is to eliminate the possibility of unauthorized excessive sound pressure levels that could cause damage to both speaker drivers and amplifier electronics. Only maintenance engineers and venue managers hold the key, ensuring that maximum volume levels cannot be tampered with. The SP2120 is ideal for venues like clubs, theatres, pubs, schools, and universities, helping them comply with local noise regulations.

Precision Level Control

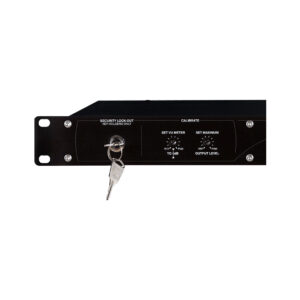

The SP2120 features an integral security lock on the front panel to guarantee that adjustments are implemented by key holders only. In the unlocked mode, two front panel pre-sets are accessible for adjustment by the installer. The first pre-set calibrates the 16-segment Left/Right bargraphs to the incoming audio, determining the point at which protection processing begins. The second pre-set defines the absolute maximum volume level that the system is allowed to reach. If the SP2120 receives signal levels exceeding this set point, transparent protection circuitry activates to maintain the specified system volume without compromising sound quality.

Reliable Speaker Protection

Drawmer’s SP2120 leverages over 25 years of experience in designing industry-standard dynamic processing devices. It employs a combination of multiple time constant circuitry and automatic gain control (AGC), allowing small overloads to sound louder while preventing damaging spikes. Unlike other systems that might use crude shutdown mechanisms, the SP2120 maintains sound integrity and avoids disruptive interruptions.

Features

• Strict level control to protect speakers and venues from excessive volume levels.
• Key-holder access ensures only authorized adjustments to volume levels.
• Simple installation, taking only minutes to set up.
• Optional tamper-proof bracket to lock XLRs in place and conform to local authority regulations.

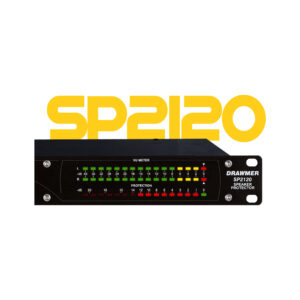

• Dual 16-segment Left/Right bargraphs for quick, at-a-glance level metering.
• Transparent protection processing with 16-segment bargraph display.
• Maintains sound quality even during heavy protection processing.
• Eliminates unauthorized volume adjustments, preventing damage to speaker drivers and amplifier electronics.
• Reduces call-out costs for service/repair engineers and minimizes sound system downtime.
• Isolation transformer output option for enhanced reliability.
• Classic Drawmer build quality with rugged steel chassis and aluminum front panel.
• Designed and manufactured in the UK.
