Elysia mpressor

The Elysia mpressor is a creative Class-A stereo compressor designed for recording, mixing, and mastering. With its unique anti-log release curve, negative ratios, gain reduction limiter, and hard knee compression, the mpressor offers precise control for everything from subtle compression to extreme sound design. Its versatility makes it ideal for all kinds of music applications, providing both precision and creativity in a single unit.

Key Features:

• Class-A stereo compressor for creative recording, mixing, and mastering
• Anti-log release curve for creative compression effects
• Negative ratios for groovy compression and dynamic effects
• Gain reduction limiter for precise control over maximum compression
• Hard knee compressor for smooth dynamic control
• External sidechain inputs and outputs (19″ Rack Version only)
• Tilt EQ for quick sonic character adjustments (19″ Rack Version only)

Additional Features:

• Anti Log Release: Reverse logarithmic release curve that allows creative compression effects by varying the release times
• Auto Fast: Automatically shortens attack time for fast and loud impulses, ensuring smooth and fast dynamic control
• Negative Ratios: Inverts the ratio curve for creative dynamic effects, where louder input signals result in lower output signals
• External Sidechain: Independent compression control using external signals, with a high-pass filter to reduce low-frequency influence
• Gain Reduction Limiter: Limits the maximum gain reduction for precise control, preventing over-compression of loud signals
• Tilt EQ: Adjusts the balance between high and low frequencies with ease, making it a versatile tool for shaping the overall sonic character
• Transconductance Amplifier: Discrete, temperature-compensated amplifier for fast response and precise dynamic control
• T12 Heater: Maintains constant temperature for the amplifier circuitry, ensuring stable performance even during long sessions

• Frequency Response: <10 Hz – 33 kHz (-3 dB, 2 RU Rack); <10 Hz – 390 kHz (-3 dB, 500 Series Module)
• THD+N @ +0 dBu (20 Hz – 22 kHz): 0.04% (2 RU Rack, 500 Series Module), 0.24% (500 Series THD Boost)
• Noise Floor (A-weighted): -84 dBu (2 RU Rack), -79 dBu (500 Series Module)
• Dynamic Range: 109 dB (2 RU Rack), 99 dB (500 Series Module)
• Maximum Input Level: +25 dBu (2 RU Rack), +21 dBu (500 Series Module)
• Maximum Output Level: +27 dBu (2 RU Rack), +22 dBu (500 Series Module)
• Input Impedance: 10 kOhm
• Output Impedance: 68 Ohm

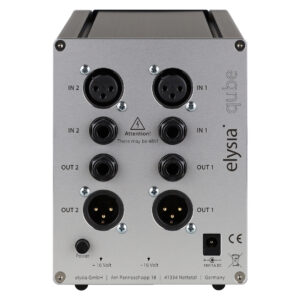

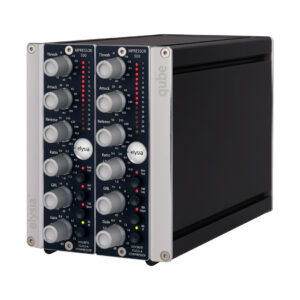

• Dimensions: 19” x 3.6” x 15” (483 mm x 90 mm x 380 mm, 2 RU Rack); 4.09” x 5.39” x 8.1” (104 mm x 137 mm x 205 mm, qube)
• Weight: 17.2 lbs / 7.8 kg (2 RU Rack), 3.04 lbs / 1.38 kg (qube)
• Power Consumption: 31 Watts (2 RU Rack), 6 Watts (qube), 70 mA (500 Series Module)

The Elysia mpressor is a versatile and creative compressor that offers unique features and precise control for all kinds of music applications. Its innovative design and powerful dynamic processing make it an essential tool for both subtle compression and extreme sound design.
