Equitech 10WQ Balanced Power Wall System

The Equitech 10WQ is a 10 kVA balanced isolation power system built for larger facilities that demand more circuits and greater headroom than the 5WQ provides. Operating from a 208/240V feed and distributing clean 120V AC across ten independently breaker-protected circuits, it delivers phase-coherent balanced power that holds consistent quality regardless of how heavily your space is loaded. Housed in the same rugged NEMA 12 steel wall cabinet as its smaller counterpart, the 10WQ is the infrastructure-grade solution for multi-room recording complexes, large control rooms, and professional post-production facilities across Los Angeles and beyond.

Key Features

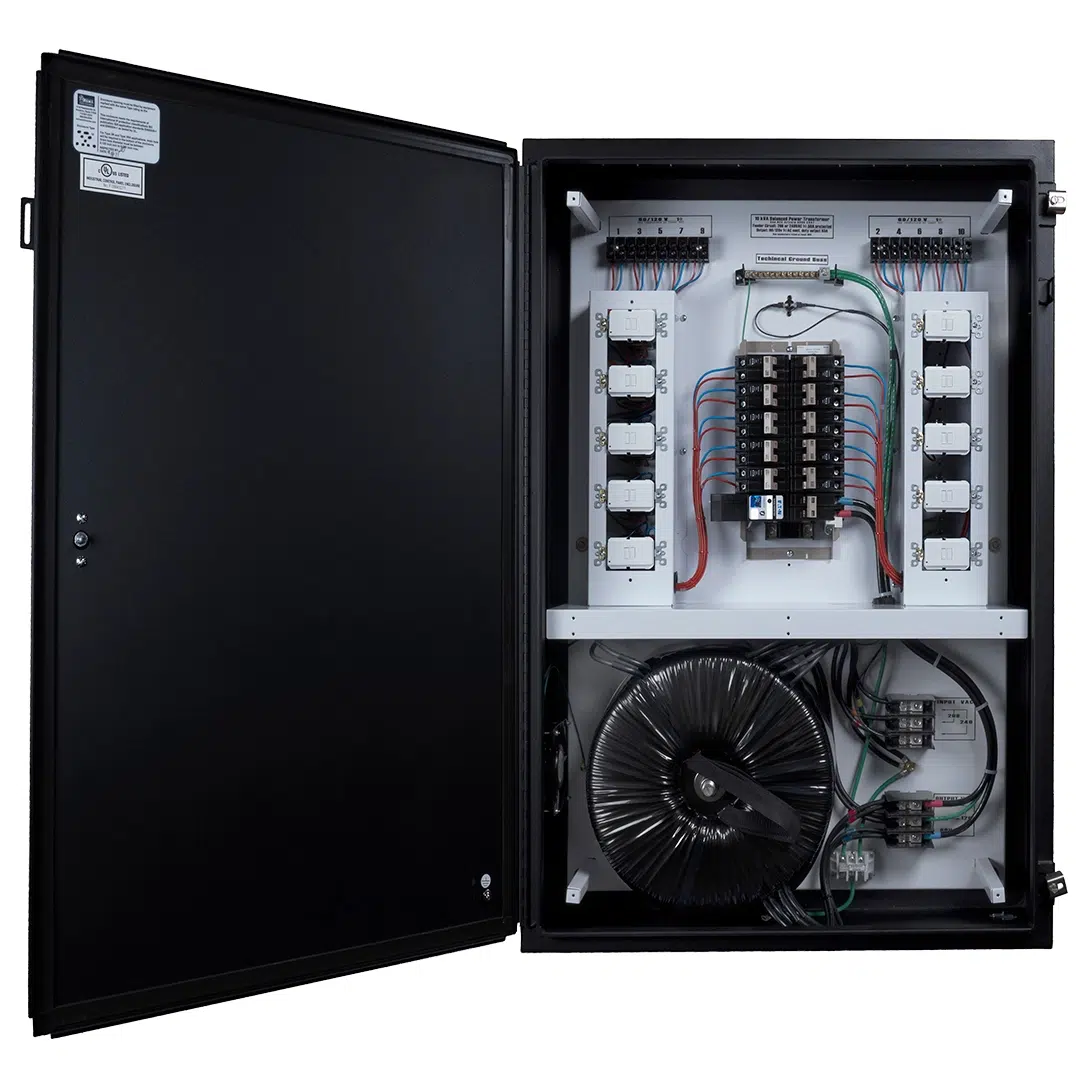

• 10 kVA Toroidal Balanced Isolation: A massive toroidal balanced isolation transformer eliminates noise and distortion from incoming AC at the source—treating the current itself so that clean, phase-coherent power reaches every connected component.
• 240V to 120V Wall-Mount System: Accepts 208/240V input and distributes 120V output across ten circuits, purpose-built for multi-circuit studio and facility applications with demanding, variable loads.

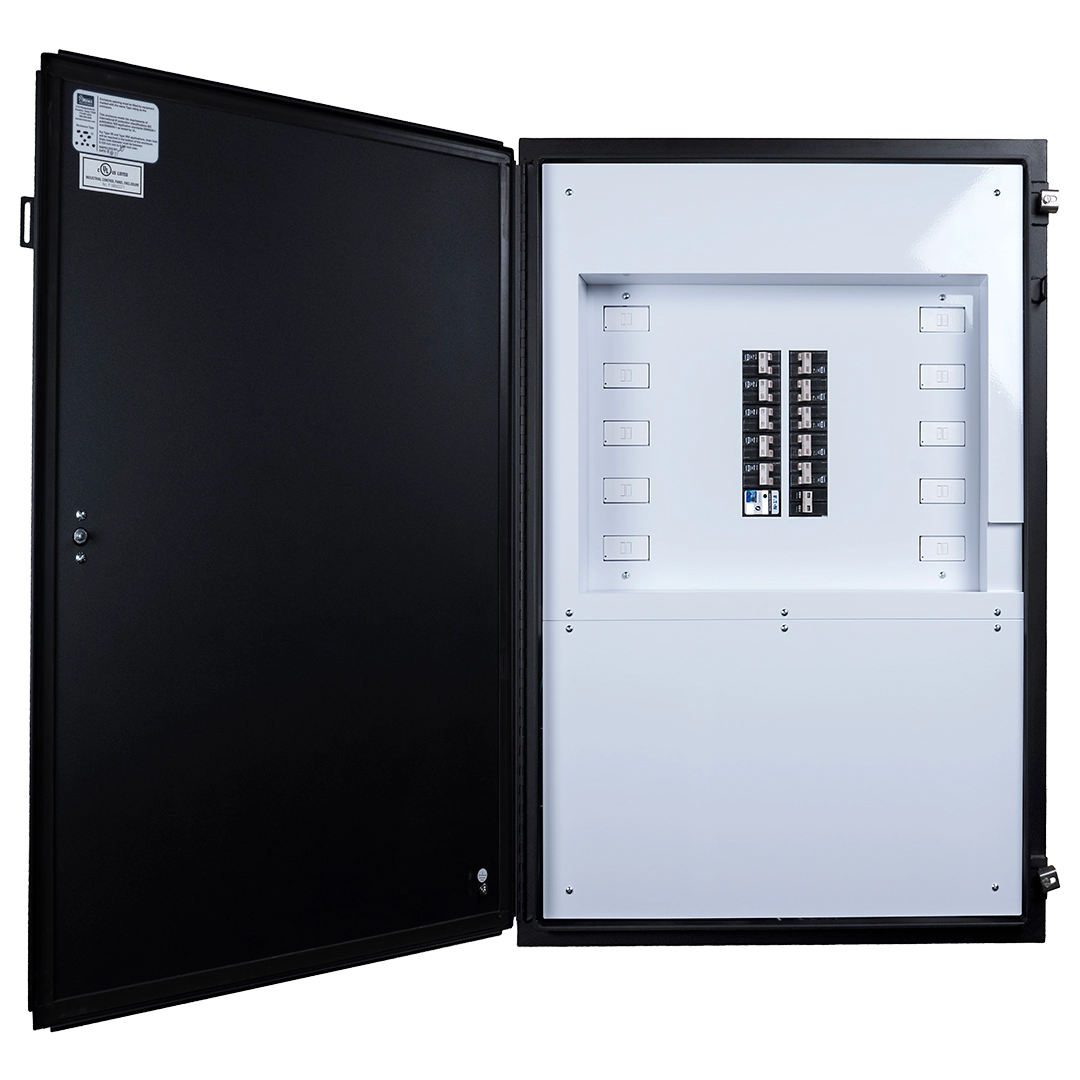

• Industrial-Grade 10-Circuit Distribution Panel: Rugged commercial-grade AC distribution panel with a 10-circuit breaker board (15 A or 20 A per circuit) inside a sturdy NEMA 12 steel enclosure with chrome latches and a white interior.
• Optional EMF-Filtered Circuits: EMF-filtered circuit options are available for audio/visual components with DSP processing, reducing jitter by up to 60%.
• Optional Oxygen-Free Copper (OFC) Wiring: OFC wiring is available for reduced heat transference and improved signal integrity throughout the distribution system.
• Permanent Infrastructure Solution: Wall-panel format is designed for fixed installation in purpose-built spaces where consistent, long-term power quality is non-negotiable.

Specifications

• Format: Wall Panel
• Capacity: 10 kVA
• Input: 50 A
• Input Voltage: 208/240V
• Output: 100 A / 120 V / 60 Hz
• Continuous Output Current: 84 A
• Number of Circuits: 10
• Circuit Breakers: 15 A or 20 A (per circuit)
• Transformer Type: Toroidal Balanced Isolation
• Enclosure: NEMA 12 Steel Cabinet
• Dimensions: 42″ H × 30″ W × 8″ D
• Weight: 375 lbs
• Options: EMF-filtered circuits; oxygen-free copper (OFC) wiring
