Equitech 15WQ Balanced Power Wall System

The Equitech 15WQ is a 15 kVA balanced isolation power system built for large-scale studio environments and multi-room facilities with serious power demands. Drawing from a 208/240V feed, it distributes clean, phase-coherent 120V AC across twenty independently breaker-protected circuits—maintaining balanced power quality regardless of how many components are running simultaneously. Configured as two separate wall-mounted cabinets—an upper panel housing and a lower toroidal transformer section—the 15WQ is the infrastructure-grade solution for purpose-built recording complexes, broadcast facilities, and professional post-production suites in Los Angeles and throughout the country.

Key Features

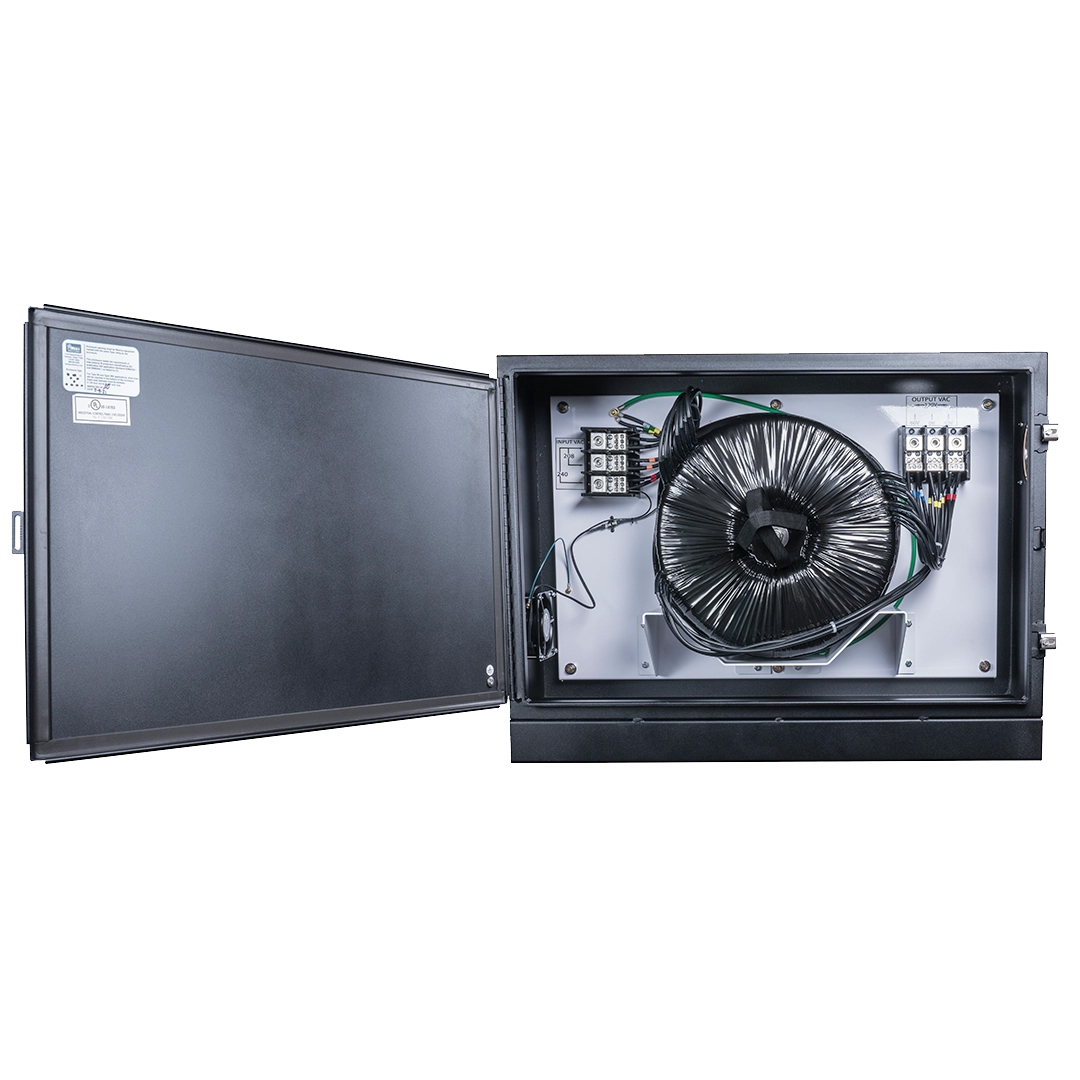

• 15 kVA Toroidal Balanced Isolation: A massive toroidal balanced isolation transformer housed in a dedicated lower cabinet eliminates noise and distortion from incoming AC at the source—delivering phase-coherent power to every circuit without conditioning or filtering after the fact.
• 240V to 120V Wall-Mount System: Accepts 208/240V input and distributes 120V output across twenty circuits, scaled for demanding multi-room, multi-circuit applications with high and variable loads.
• Two-Cabinet Architecture: The transformer section and 20-circuit distribution panel are housed in separate NEMA 12 steel cabinets, allowing clean installation in facilities where the transformer footprint needs to be isolated from the panel.

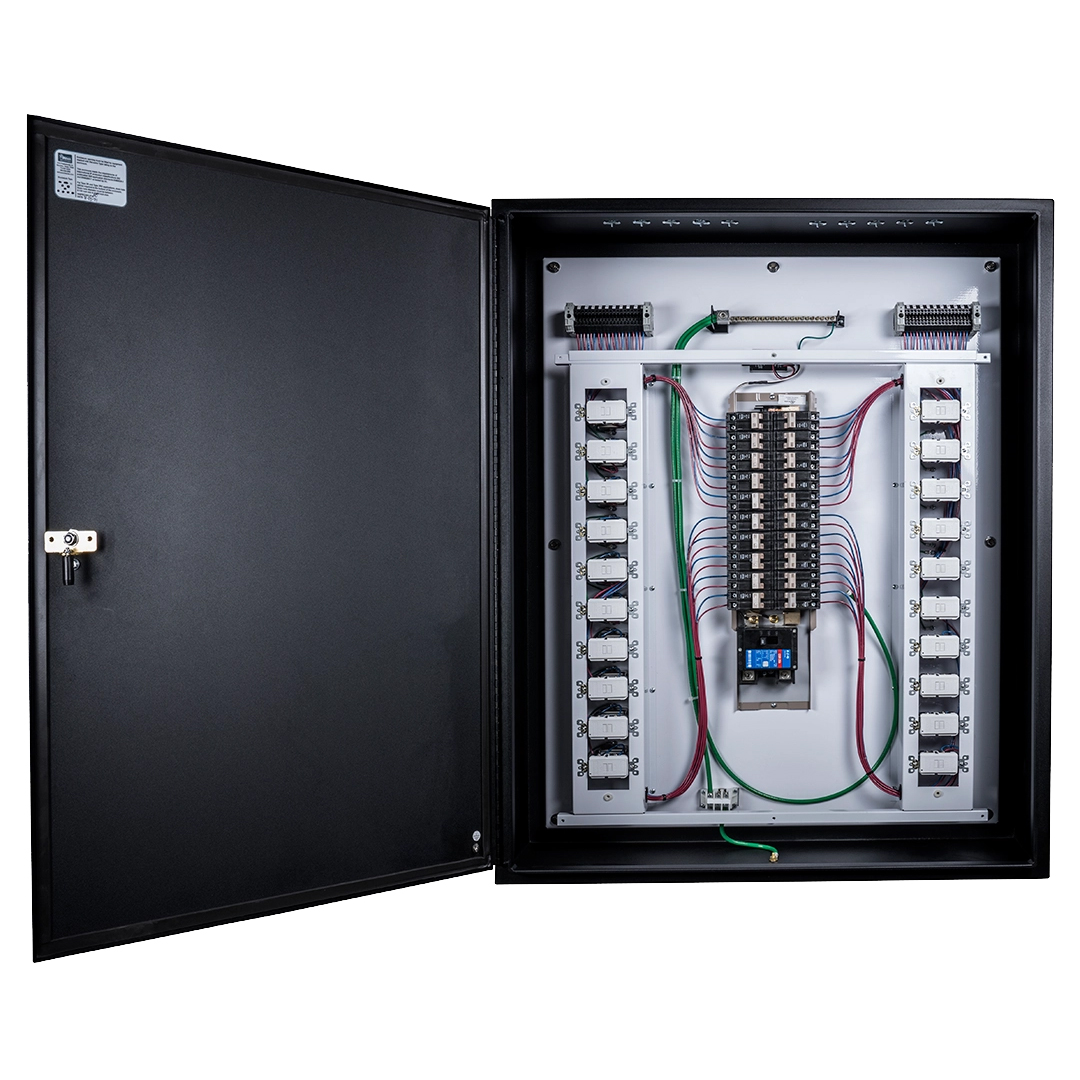

• Industrial-Grade 20-Circuit Distribution Panel: Rugged commercial-grade AC distribution panel with a 20-circuit breaker board (15 A or 20 A per circuit) in a black enclosure with chrome latches and a white interior.
• Optional EMF-Filtered Circuits: EMF-filtered circuit options are available for audio/visual components with DSP processing, reducing jitter by up to 60%.
• Optional Oxygen-Free Copper (OFC) Wiring: OFC wiring is available for reduced heat transference and improved signal integrity throughout the distribution system.

Specifications

• Format: Wall Panel (two-cabinet)
• Capacity: 15 kVA
• Input: 80 A
• Input Voltage: 208/240V
• Output: 150 A / 120 V / 60 Hz
• Continuous Output Current: 126 A
• Number of Circuits: 20
• Circuit Breakers: 15 A or 20 A (per circuit)
• Transformer Type: Toroidal Balanced Isolation
• Enclosure: NEMA 12 Steel Cabinet
• Dimensions — Upper (Panel): 48″ H × 36″ W × 10″ D
• Dimensions — Lower (Transformer): 24″ H × 36″ W × 10″ D
• Weight: 710 lbs
• Options: EMF-filtered circuits; oxygen-free copper (OFC) wiring
