Equitech 20WQ Balanced Power Wall System

The Equitech 20WQ is the top of Equitech’s wall-mount line—a 20 kVA balanced isolation power system delivering 200 amps of clean, phase-coherent 120V AC for the most demanding large-scale studio and facility applications. Drawing from a 208/240V feed, it distributes balanced power across twenty independently breaker-protected circuits with enough continuous headroom to support the heaviest multi-room, multi-component loads without compromise. Like the 15WQ, it uses a two-cabinet configuration that separates the massive toroidal transformer from the distribution panel, making it a permanent infrastructure solution for professional recording complexes, broadcast facilities, and large-format post-production suites throughout Los Angeles and beyond.

Key Features

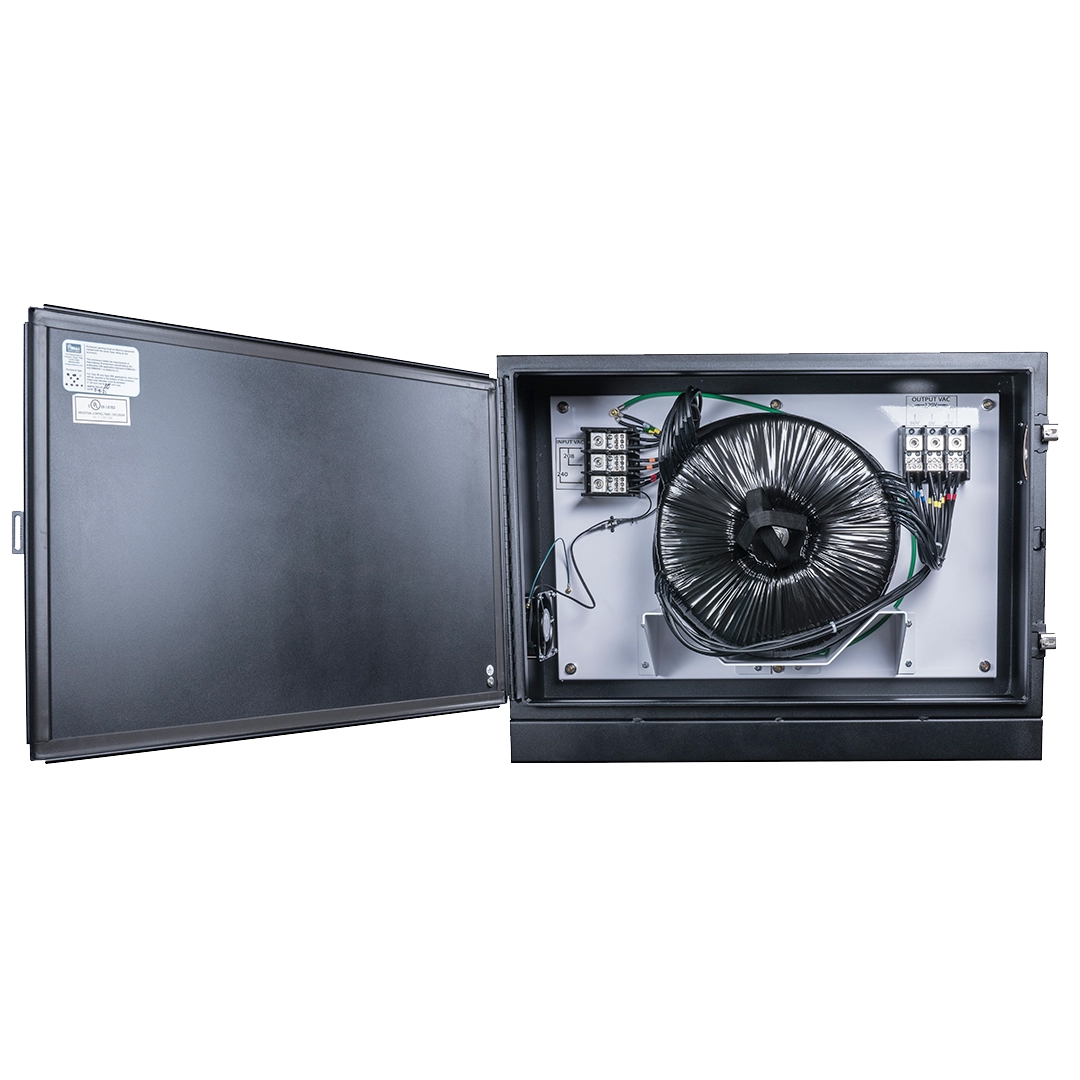

• 20 kVA Toroidal Balanced Isolation: A massive toroidal balanced isolation transformer housed in a dedicated lower cabinet eliminates noise and distortion from incoming AC at the source—delivering phase-coherent balanced power to every circuit before it ever reaches connected equipment.
• 240V to 120V Wall-Mount System: Accepts 208/240V input and distributes 120V output across twenty circuits, built for large-scale multi-circuit environments where power quality must hold under sustained, heavy loads.
• Two-Cabinet Architecture: The toroidal transformer and 20-circuit distribution panel are housed in separate NEMA 12 steel cabinets, keeping the transformer mass isolated from the panel for clean, professional installation.

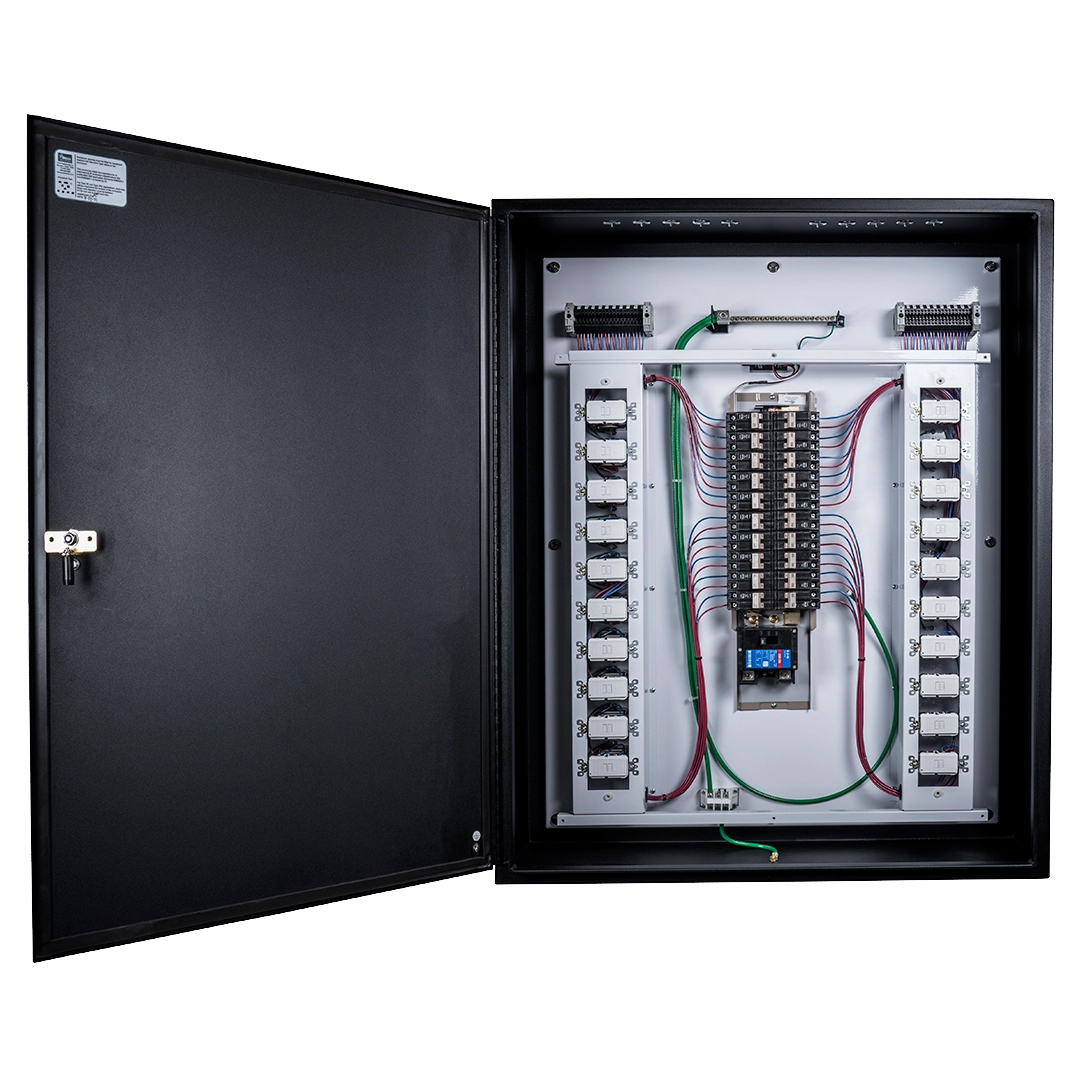

• Industrial-Grade 20-Circuit Distribution Panel: Rugged commercial-grade AC distribution panel with a 20-circuit breaker board (15 A or 20 A per circuit) in a black enclosure with chrome latches and a white interior.
• Optional EMF-Filtered Circuits: EMF-filtered circuit options are available for audio/visual components with DSP processing, reducing jitter by up to 60%.
• Optional Oxygen-Free Copper (OFC) Wiring: OFC wiring is available for reduced heat transference and improved signal integrity throughout the distribution system.

Specifications

• Format: Wall Panel (two-cabinet)
• Capacity: 20 kVA
• Input: 100 A
• Input Voltage: 208/240V
• Output: 200 A / 120 V / 60 Hz
• Continuous Output Current: 168 A
• Number of Circuits: 20
• Circuit Breakers: 15 A or 20 A (per circuit)
• Transformer Type: Toroidal Balanced Isolation
• Enclosure: NEMA 12 Steel Cabinet
• Dimensions — Upper (Panel): 48″ H × 36″ W × 10″ D
• Dimensions — Lower (Transformer): 24″ H × 36″ W × 10″ D
• Weight: 740 lbs
• Options: EMF-filtered circuits; oxygen-free copper (OFC) wiring
