Equitech 5WQ Balanced Power Wall System

The Equitech 5WQ is a 5 kVA balanced isolation power system engineered to deliver clean, phase-coherent 120V AC throughout a one- to two-room facility. Fed from a 208/240V source, the 5WQ employs a toroidal balanced isolation transformer to eliminate noise and distortion at the electrical source—not by conditioning or filtering after the fact, but by treating the current itself before it ever reaches your equipment. Housed in a rugged NEMA 12 steel wall cabinet with six independently breaker-protected circuits, the 5WQ provides a permanent, infrastructure-grade power foundation for recording studios, mix rooms, and post-production suites across Los Angeles and beyond.

Key Features

• True Balanced Isolation: A 5 kVA toroidal balanced isolation transformer eliminates noise, hum, and distortion from incoming AC power at the source—providing phase-coherent power that stays clean regardless of load.
• 240V to 120V Wall-Mount System: Accepts 208/240V input and distributes 120V output across six circuits, designed to blanket a small one- to two-room facility without compromising power quality as components are added.

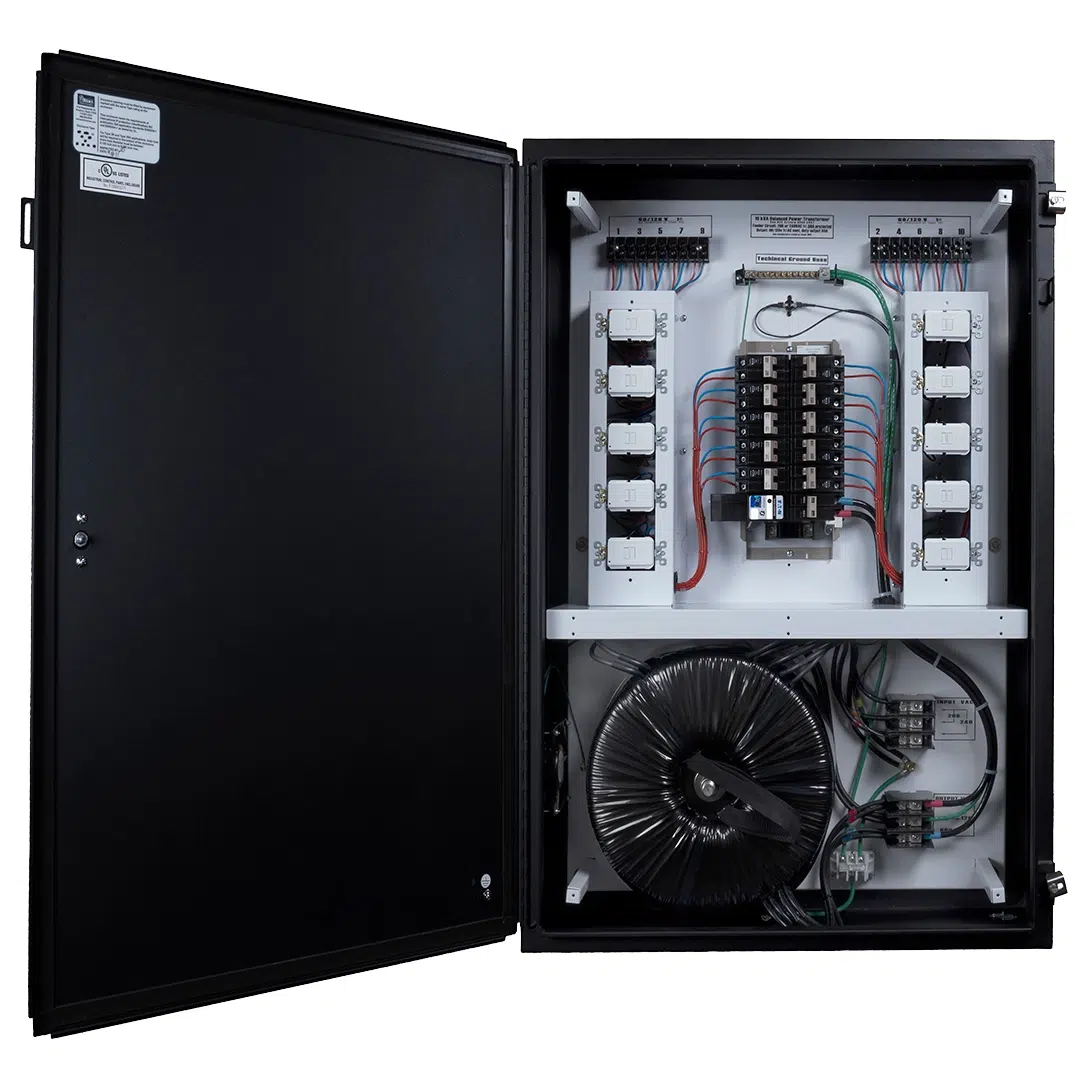

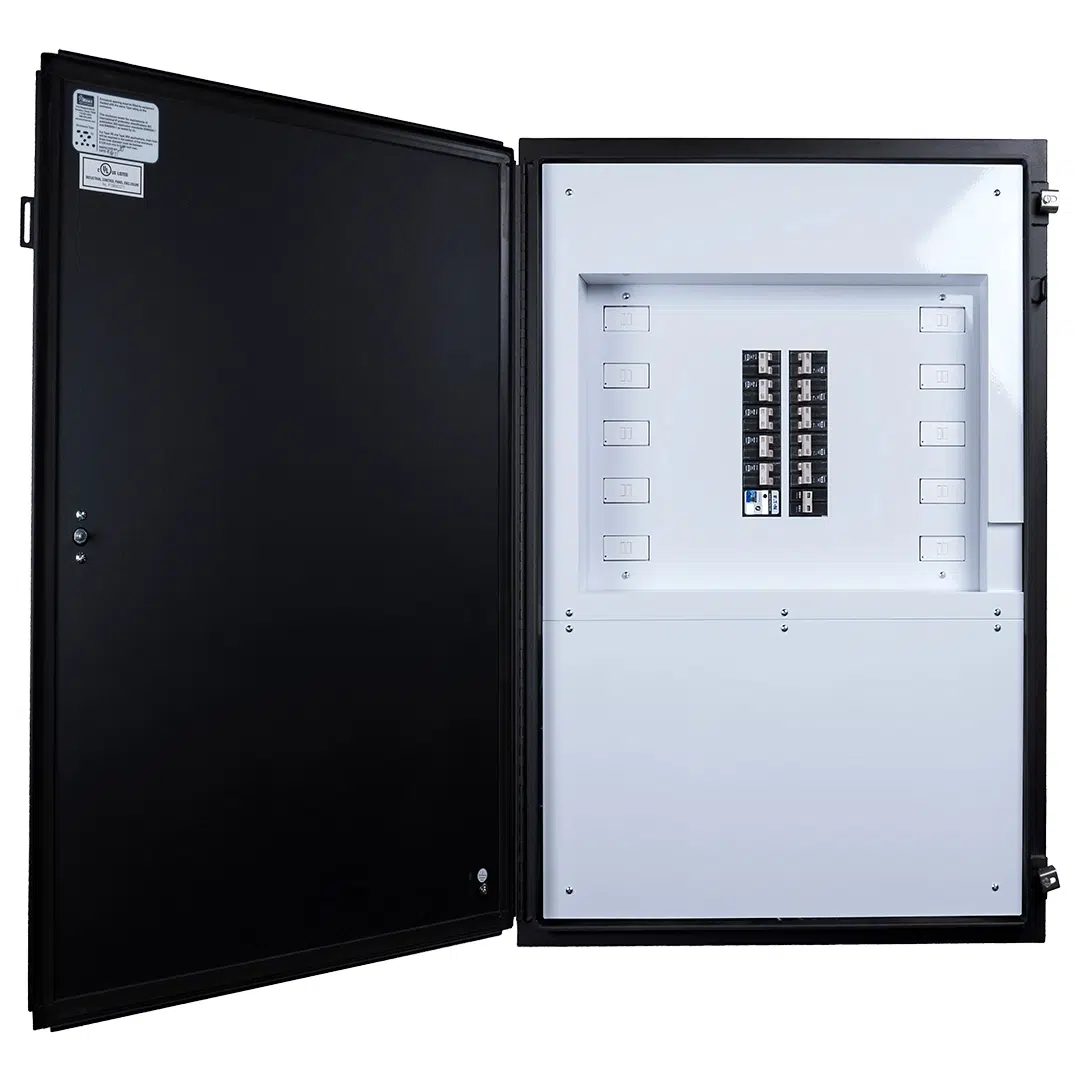

• Industrial-Grade Distribution Panel: Rugged commercial-grade AC distribution panel with 6-circuit breaker board (15 A or 20 A per circuit) housed in a sturdy NEMA 12 steel enclosure with chrome latches and a white interior.
• Optional EMF-Filtered Circuits: EMF-filtered circuit options are available for audio/visual components with DSP processing, reducing jitter by up to 60%.
• Optional Oxygen-Free Copper (OFC) Wiring: OFC is available for reduced heat transference and improved signal integrity throughout the distribution system.
• Permanent Infrastructure Solution: Wall-panel format is designed for fixed installation, making it a clean, professional power infrastructure choice for purpose-built studio spaces.

Specifications

• Format: Wall Panel
• Capacity: 5 kVA
• Input: 30 A
• Input Voltage: 208/240V
• Output: 50 A / 120 V / 60 Hz
• Continuous Output Current: 42 A
• Number of Circuits: 6
• Circuit Breakers: 15 A or 20 A (per circuit)
• Transformer Type: Toroidal Balanced Isolation
• Enclosure: NEMA 12 Steel Cabinet
• Dimensions: 42″ H × 30″ W × 8″ D
• Weight: 350 lbs
• Options: EMF-filtered circuits; oxygen-free copper (OFC) wiring
