Eventide MixingLink

$349.00

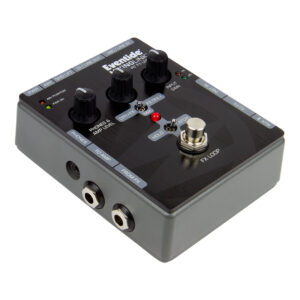

Eventide MixingLink

A stompbox-size audio toolkit for on-stage, in the studio, and everywhere in between. Includes a quiet high gain mic-pre, 48V phantom power, and enough I/O and control for applications such as FX Loop for microphone signal processing (vocals, horns, strings, etc), signal splitting, and combining, complete re-amp setup, impedance, and gain matching, mixing and more.

Features

  • Ultimate Versatility
  • Latching or momentary footswitch control of FX loop for performance effects
  • Works with a wide range of microphones including condenser and ribbon mics with up to 65dB of clean gain
  • Aux I/O connection supporting stereo input and send
  • Guitar amp output and headphone monitor output with separate master volume control
  • International universal power supply included
  • Operates on 9V battery (no phantom power when operating on a battery)
  • 48V phantom power for condenser mics

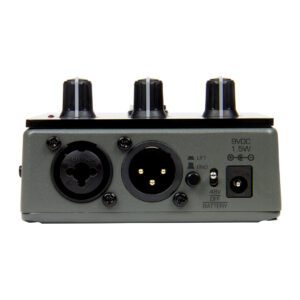

  • Balanced XLR output which supports DI and line levels
  • Instrument and balanced line level inputs
  • Versatile mix control supports 3 modes:
    • 100% Dry with FX blended in
    • Mic/FX balance control
    • 100% FX (no Dry)

A Swiss Army Knife for Every Application

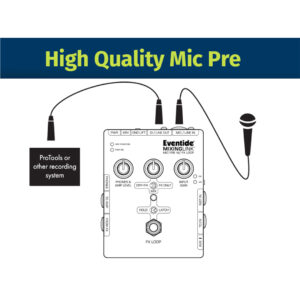

  • Use the MixingLink as a compact studio mic pre for recording with Pro Tools, Ableton, or any other D.A.W.

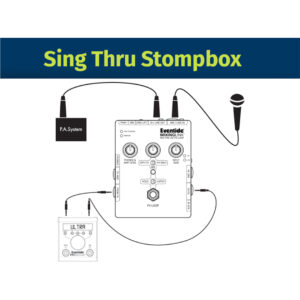

  • Use the MixingLink to connect a microphone to your favorite stompbox(es) to add effects to your vocals.

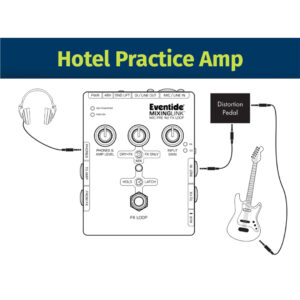

  • Use the MixingLink as a hotel practice amp.

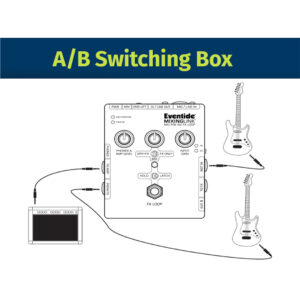

  • Use the MixingLink as an A/B Box to switch between two instruments.

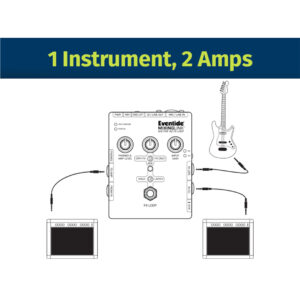

  • Use MixingLink to split and blend one instrument between two amplifiers.

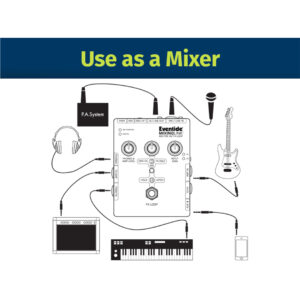

  • Use MixingLink as a mixer to connect multiple sources to an amp or headphones.

Input

  • Analog Input
    • MAX Input Levels, Input Impedance
      • INST IN: +10dBu, 500kΩ
      • 1/4″ Line IN: +24dBu, 22kΩ
      • Out 2: +4dBu, 2kΩ
      • EXP: +10dB, 200kΩ
      • AUX IN: +4dBu, 5.0kΩ

Output

  • Analog Output
    • MAX Output Levels, Output Impedance
      • TO FX: +10dBu, 400Ω
      • TO AMP: +10dBu, 250Ω
      • PHONES: 150mW per channel, min Load = 8 Ohms
      • DI/LINE OUT: (DI) -10dBu, (LINE) +18dBu, 200Ω
      • AUX OUT: 18mV, 200Ω (mobile mic level)

Specs

  • Power Supply: 9V DC @ 200mA / Center Negative (-), 5.5mm/2.1mm jack (BOSS standard)
  • Dimensions: 3.6” (H) x 2.65” (W) x 1.5” (D) / 91(H) x 67(W) x 38(D) mm
  • Weight: .96 lb / .43 kg
