Eventide PowerMini

$149.00

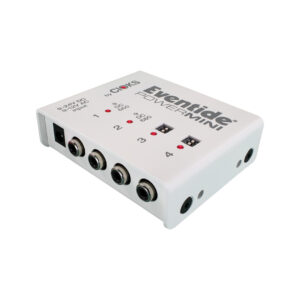

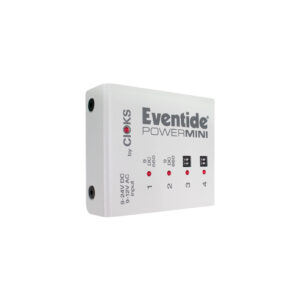

Eventide PowerMini

PowerMini is a super-compact, isolated power supply for smaller pedalboards that ensures your pedals will achieve maximum fidelity. PowerMini provides four outputs at 600 mA (with 2 outputs switchable to 9, 12, 15, or 18V). Also available is the PowerMini EXP, which is the perfect companion to PowerMax. Simply connect PowerMini EXP to your PowerMax via the courtesy 24V outlet and you are good to go. Each PowerMini comes with 7 flex cables compatible with most pedal brands.

Features

PowerMini Standalone

  • 18VDC, up to 2A, Center Pin Positive (+), 5.5/2.1mm plug
  • Mounting hardware (2 screws and a hex-key)
  • Product sheet (drill guide)
  • Flex & DC Link cable guide
  • 7 Flex Cables:
    • 2 x 1030 – black, 30cm, center negative, type 1 (Eventide Rose, MixingLink & BOSS type)
    • 2 x 1050 – black, 50cm, center negative, type 1 (Eventide Rose, MixingLink & BOSS type)
    • 2 x 4050 – green, 50cm, center positive, type 4 (Eventide all H9s, TimeFactor, ModFactor, PitchFactor & Space)
    • 1 x 1533 – 3-way daisy chain, black, 50-30-30cm, center negative, type 1 (BOSS type)

Connectors

  • Mains input: 9-24V DC, 9-12V AC
  • Outlets 1–2: 9V DC / 660mA
  • Outlets 3–4: 9, 12, 15, 18V DC / 660mA

Physical

  • Size: 2.9” x 3.5” x 1.0”
  • Weight: 0.507 lbs / 220.9g

Warranty

  • 5 years worldwide
