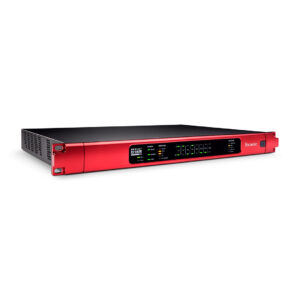

Focusrite RedNet D16R MkII – 16-Channel Digital Interface for Dante Networks

The Focusrite RedNet D16R MkII is a professional-grade 16-channel bi-directional digital interface designed for seamless integration into Dante® networks. This 1U rackmount device offers precise input and output channel level controls via RedNet Control software, making it an ideal solution for recording, live sound, broadcast, and post-production environments. Featuring redundant power supplies and Ethernet connectivity with auto switchover, the RedNet D16R MkII ensures reliable operation even in mission-critical setups.

Key Features:

• 16-Channel Digital Interface: Bi-directional AES3 interface for seamless integration into Dante networks.
• Precision Level Control: Individual input and output channel adjustments via RedNet Control software.
• Redundant Power and Network: Dual PSUs with locking IEC inlets and dual etherCON connectors for primary and secondary network connections.
• Flexible Connectivity: Two DB25 connectors with AES59 standard configuration; XLR connections for alternate AES3 I/O and DARS input; RCA connectors for S/PDIF I/O.
• Sample Rate Conversion: SRC on all input channels allows external devices to operate at different sample rates.
• Clocking Versatility: Word Clock I/O on BNC connectors for syncing to house clock or external devices.

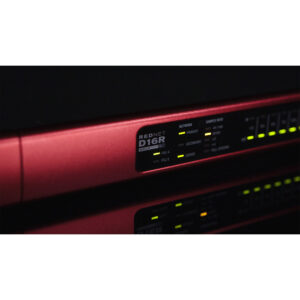

• Status Monitoring: Front-panel LED indicators for PSU, network, sample rate, signal presence, and clock source status.
• Compact Design: 1U rackmount form factor for maximum functionality in minimal rack space.
• Dante Compatibility: Fully operable with Focusrite RedNet and Red interfaces, plus all Dante-enabled devices from hundreds of manufacturers.
• Remote Control: Manage routing and control through RedNet Control and Dante Controller software.
• 3-Year Warranty: Designed for years of reliable performance with Focusrite’s commitment to quality.

Reliable Digital Audio Networking

The RedNet D16R MkII provides 16 channels of AES3 I/O with full Dante network compatibility, making it a vital component for professional audio systems. With built-in redundancy for power and network connectivity, this interface ensures fail-safe operation in the most demanding applications.

Flexible Connection Options

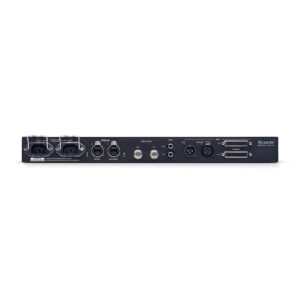

Connectivity options include two DB25 connectors for AES3 I/O, XLR connections for alternate AES3 I/O and DARS input, and RCA connectors for S/PDIF. Sample rate conversion on every input enables smooth operation with external devices running at different sample rates, while Word Clock I/O allows seamless synchronization with other digital systems.

Precision and Control

RedNet Control software enables precise calibration of input and output levels, while front-panel LED indicators provide clear monitoring of system status. The RedNet D16R MkII is designed for flexibility, allowing integration into any Audio-over-IP system with ease.

Focusrite Studio Console Plug-In

All Focusrite Pro products include the Brainworx bx_console plug-in, a faithful emulation of the legendary ISA 110 Equaliser and ISA 130 Dynamics Modules. Experience the warmth and clarity of the classic Focusrite Studio Console directly in your DAW.

Three-Year Warranty

Focusrite products are built to the highest standards and come with a 3-year warranty, ensuring reliable performance for years to come.
