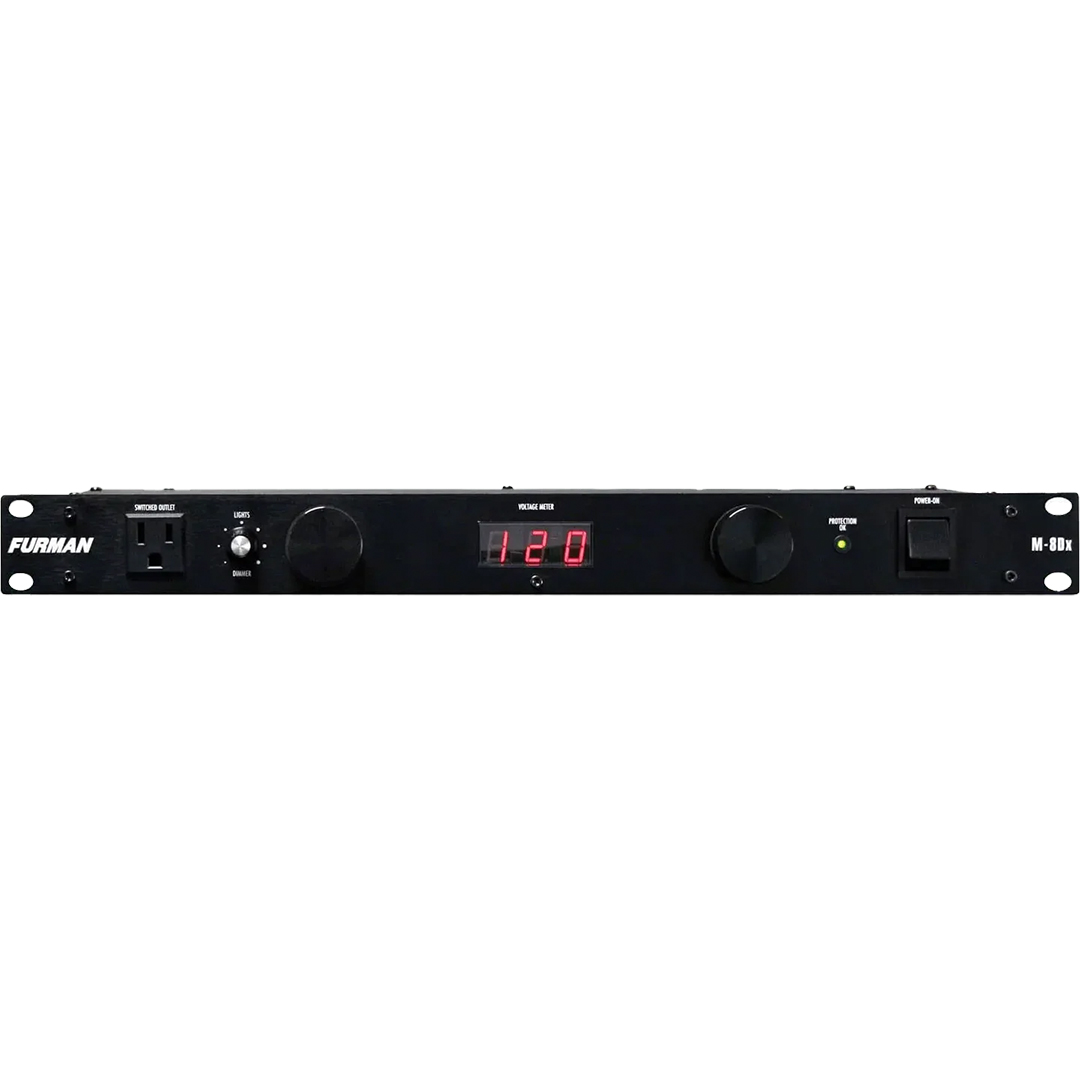

Furman M-8Dx Merit Series Power Conditioner with Digital Voltmeter – 15 Amp

The Furman M-8Dx is the flagship of the Merit Series, combining nine filtered and surge-protected outlets, standard RFI/EMI noise filtration, and a three-digit LED digital voltmeter in a 1U rackmount chassis. The voltmeter displays incoming AC line voltage in real time—an invaluable tool at bars, clubs, and venues where unreliable power can affect performance and equipment safety. Two retractable front-panel incandescent lights with a dimmer knob illuminate rack gear without turning on house lights, and a front-panel “Protection OK” LED confirms that surge protection is active. A 15-amp rating with integrated circuit breaker and widely spaced rear outlets make the M-8Dx a practical power management hub for instrument rigs, home studios, DJ setups, and mobile live sound applications.

Key Features

• 9 total outlets — 8 rear panel outlets and 1 front panel convenience outlet, all filtered and surge protected; rear outlets spaced to accommodate large wall warts and adapters
• Digital LED voltmeter — 3-digit display monitors incoming AC line voltage in real time for power quality awareness at any venue
• Standard surge and spike protection — 150 joules energy dissipation, 12,000A peak impulse current, 130V max continuous operating voltage; Line to Neutral spike protection mode
• Standard RFI/EMI filtration — greater than 26dB attenuation from 200kHz to 10MHz reduces noise floor caused by dirty AC power
• Two retractable front-panel lights — 120V incandescent bulbs (4W each) with dimmer knob for convenient rack illumination without disrupting ambient lighting
• “Protection OK” indicator LED — front panel light confirms surge protection is functioning
• 15A rating with circuit breaker — sufficient for full home studio or instrument rack loads; circuit breaker resets quickly if tripped
• 1U rackmount with included rack ears — installs in any standard 19-inch rack enclosure
• 6 ft. 14 AWG captive power cord — 3-conductor Edison plug

Specifications

• Series: Merit
• Line Voltage: 120V
• Maximum Current Rating: 15A
• Number of Outlets: 9 (8 rear + 1 front; all filtered and surge protected)
• Spike Protection Mode: Line to Neutral
• Energy Dissipation: 150 joules
• Peak Impulse Current: 12,000A
• Max Continuous Operating Voltage: 130 VAC RMS
• Filtration: Standard RFI/EMI — >26dB, 200kHz–10MHz
• Front Panel Meter: 3-digit digital voltmeter
• Front Panel Lights: Two retractable 120V incandescent bulbs, 4W each, with dimmer
• Control: Front panel on/off switch, light dimmer knob
• Power Cord: 6 ft. captive, 14 AWG, 3-conductor Edison plug
• Rack Mountable: Yes (1U); rack ears included
• Dimensions: 19 × 7.5 × 1.75 in.
• Weight: 6 lbs
• Construction: Steel chassis, black painted
• Compliance: cTUVus
