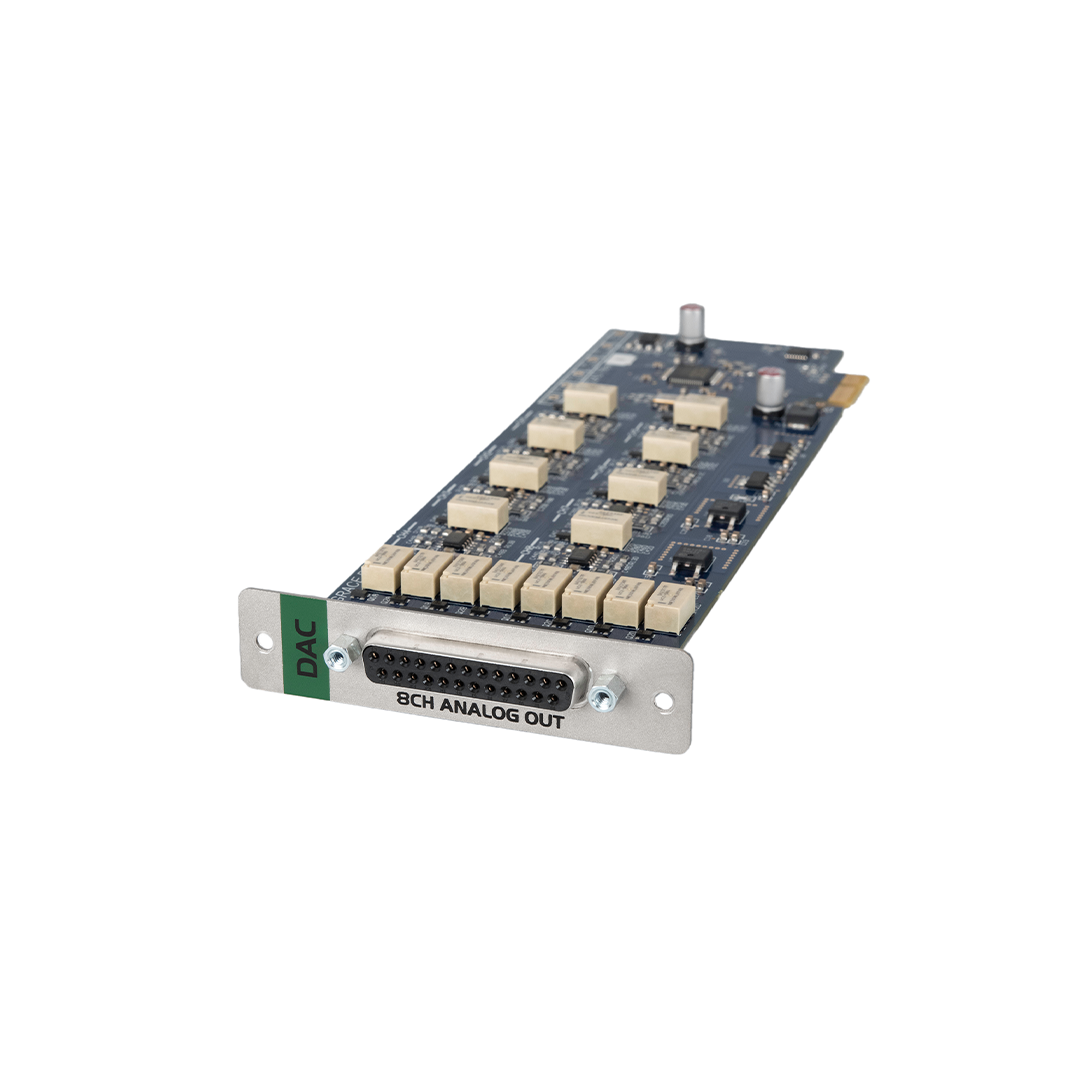

The Grace Design m701 DAC Option is a high-performance 8-channel analog output expansion module for the m701 modular audio interface. Installing into any of the m701’s eight AD/DA option slots, this field-installable module delivers the same reference-quality digital-to-analog conversion Grace Design is known for, in a single card. Per-channel output gain is adjustable ±20 dB in 0.1 dB steps, making it easy to calibrate for compatibility with outboard gear, and dynamic range exceeds 120 dB. The DAC module also supports multiple oversampling filter types — giving engineers precise control over the conversion character to suit different program material and monitoring needs. Up to eight DAC modules can be installed in a single m701, allowing studios to build out a fully analog output configuration for large-format mixing and monitoring environments.

Key Features:

• 8 channels of Grace Design reference-quality digital-to-analog conversion
• Installs in any of the m701’s eight AD/DA option slots
• Per-channel output gain adjustable ±20 dB in 0.1 dB steps for outboard calibration
• Dynamic range exceeding 120 dB
• Multiple selectable oversampling filter types
• Up to 8 DAC modules can be installed in a single m701 (64 channels total output)
• Field-installable for convenient in-studio expansion
• Controllable via front panel or GraceNet web browser interface
