Grace Design m801mk2

$4,417.00

Grace Design m801mk2

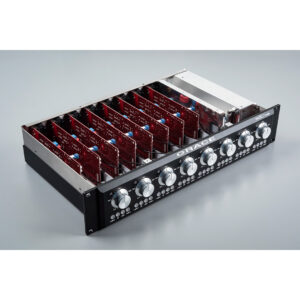

In 1994, Grace Design released the Model 801 microphone preamplifier, which was the first production model for Grace Design. It set a new standard of sonic quality and reliability for microphone preamplifiers, providing much better performance than the built-in circuits in the recording consoles of the day. It featured independent circuit boards for each channel, gold contact rotary gain controls wired with precision metal film resistors, a musical sounding transimpedance (current feedback) gain stage, gold contact sealed relay signal switching, and there were NO electrolytic capacitors in the signal path.

12 years later, Grace Design released the next generation of this preamplifier, renamed the m801, which refined the design features of the previous version, and added a fully differential signal path and Ribbon Mic mode, which optimized the signal path for low output ribbon microphones.

Now 20 years later, the next generation is here, now named the m801mk2. Newly designed amplifier circuitry adds to the features of the previous versions while significantly improving noise performance at low gains, increasing low frequency bandwidth for improved phase response, improving RFI/EMI immunity for today’s ever noisier world, and eliminating the external DC power supply for a cleaner, simpler design.

Today’s modern recording studio is invariably loaded with incredible sonic processing capability, making the opportunity to add great sounding color routine. But capturing the magic at the front end is still the job of skillfully designed analog hardware, for which there is no substitute. This makes Grace Design preamps more relevant than ever. If your source sounds great and your mic is plugged into the m801mk2, you’ll be rewarded with a recording of breathtaking depth and realism. If you choose to color it up from there, you’ll be starting with the best possible raw material you can get.

THE GRACE DESIGN EON AND STANDARD WARRANTIES

Grace Design backs up everything it makes with either the unrivaled 20-year EON limited warranty or the 5-year standard limited warranty. These represent the best coverage in the business and prove Grace Design’s commitment to the quality, serviceability, and long-term value of its products.

FREQUENCY RESPONSE

  • @ 20dB gain ± 3dB 150Ω source: 3.2Hz-530kHz
  • @ 20dB gain ± 0.2dB 150Ω source: 14.8Hz-109kHz
  • @ 40dB gain ± 3dB 150Ω source: 3.2Hz-500kHz
  • @ 40dB gain ± 0.2dB 150Ω source: 15.4Hz-103kHz

THD+N 22-22KHZ

  • @ 20dB gain +20dBu out, 1kHz: <.0004%
  • @ 40dB gain +20dBu out, 1kHz: <.0008%
  • @ 60dB gain +20dBu out, 1kHz: <.0070%

INTERMODULATION DISTORTION

  • @40dB gain +20dBu out
    • SMPTE/DIN 1:1 (50Hz, 7kHz): <.0015%
    • SMPTE/DIN 4:1 (50Hz, 7kHz): <.0020%

NOISE – REFERRED TO INPUT

  • @60dB gain 50Ω source: -130dB
  • @60dB gain 150Ω source: -127dB
  • @60dB gain 600Ω source: -123dB

PHASE DEVIATION

  • 100-20KHz @40dB gain: <3°

CROSSTALK ANY CHANNEL

  • Any Channel @40dB gain 1kHz: -140dB
  • Any Channel @40dB gain 10kHz: -130dB

CMRR

  • @60dB gain, 3.5Vcm, 1KHz: >85dB
  • @60dB gain, 3.5Vcm, 10KHz: >75dB

PHANTOM POWER

  • Voltage +48V: +0.9/ -0.0
  • 6.8kΩ resistor match tolerance: +/- 0.1%

MAXIMUM OUTPUT LEVEL

  • 1kHz, 100KΩ load: +28dBu

IMPEDENCE

  • Input: 8100Ω
  • Input, Ribbon Mode: 20kΩ
  • Input, Pad Engaged: 1.3KΩ
  • Output: 150KΩ

DIMENSIONS

  • Weight: 13lbs (5.9kg)
  • Height: 2U
  • Width: 19″
  • Depth: 10″

POWER CONSUMPTION

  • 100-240VAC 50/60Hz: 40 Watts max
