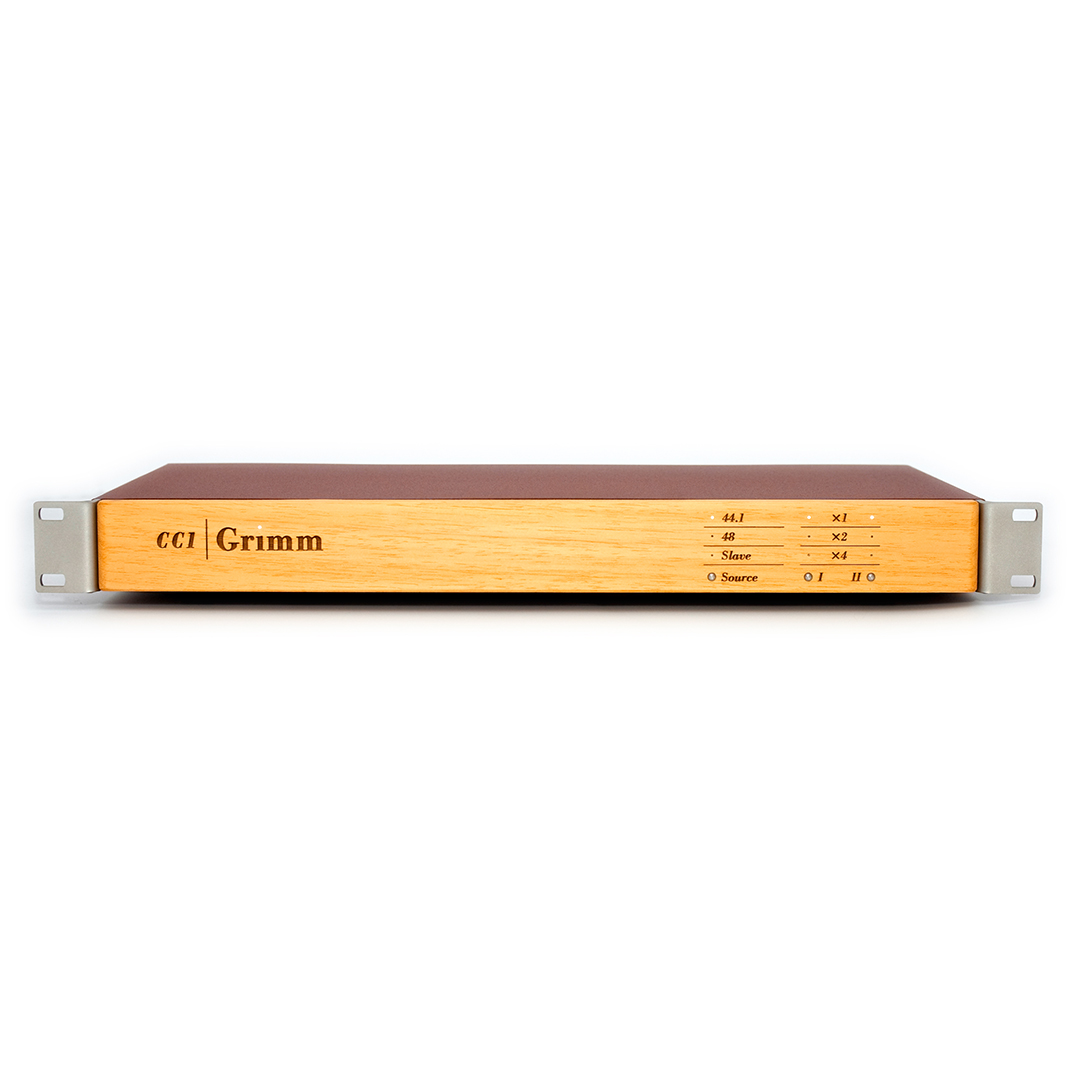

Grimm Audio CC1v2 Master-Slave Clock

The Grimm Audio CC1v2 is a master-slave clocking system designed to deliver world-class timing stability and ultra-low jitter performance to every device in your studio. Capable of operating as a master clock or slaving to external word clock and AES3 inputs, the CC1v2 distributes pristine sync signals across up to 16 outputs. By leveraging Grimm’s radically redesigned discrete crystal oscillator, the CC1v2 achieves stability surpassing even the best laboratory-grade test equipment, ensuring digital audio systems gain the ultimate in musical timing, tonal stability, and imaging precision.

Developed from extensive research into the effects of jitter on sound quality and emotional perception, the CC1v2 focuses on achieving maximum stability rather than simply reducing jitter figures. A powerful PLL circuit provides an astounding 90 dB of jitter suppression at 10 Hz, with further improvements at 60 dB/decade. Supporting base rates of 44.1 kHz and 48 kHz with 1/2/4 multiples in separately selectable groups, the CC1v2 also includes an AES/EBU reclocker to clean digital signals before conversion. Built with Grimm Audio’s characteristic attention to detail and solid design, the CC1v2 is an indispensable tool for mastering, mixing, and high-end digital playback systems.

Key Features

• Operates in master mode or slaves to word clock and AES3 inputs

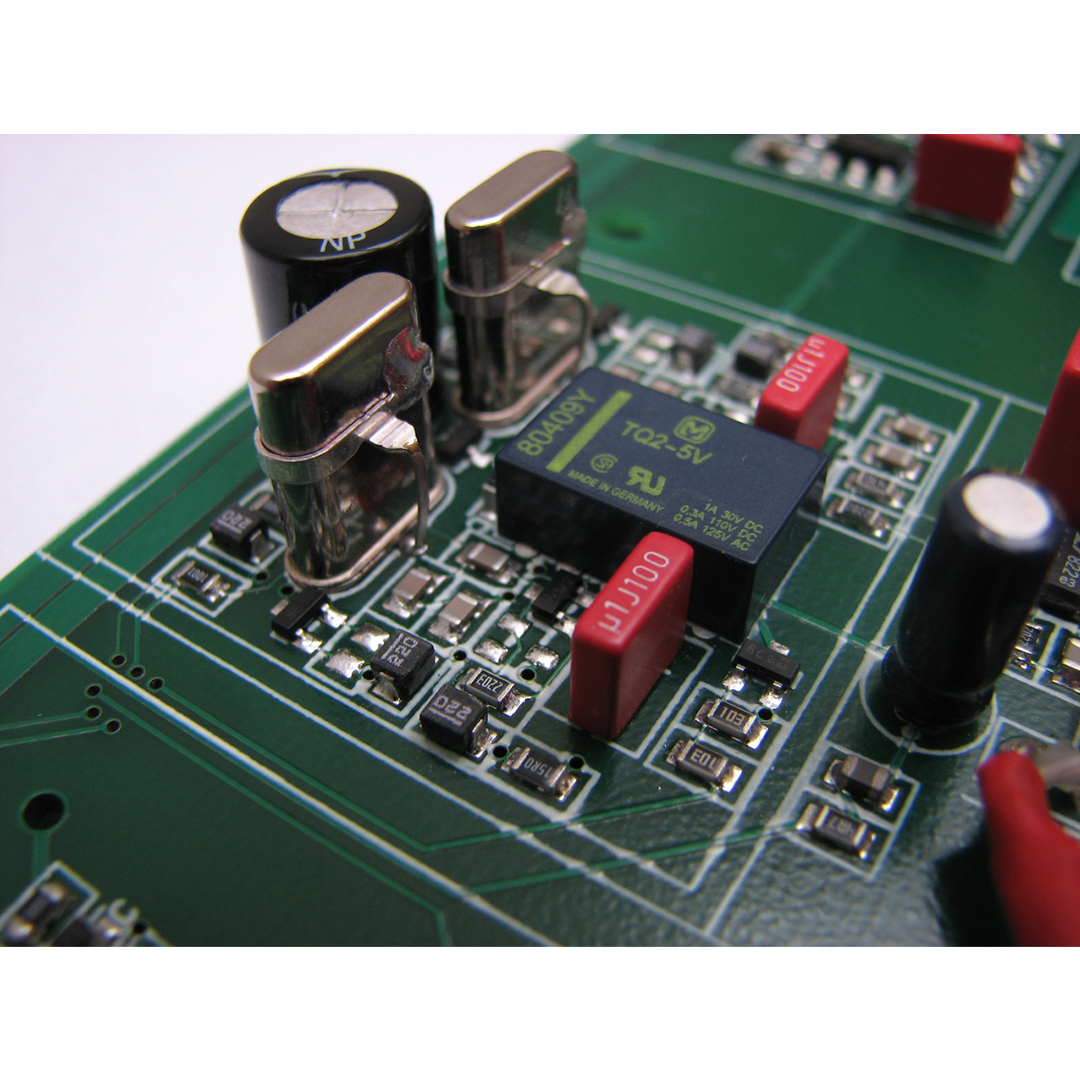

• Ultra-low jitter performance with redesigned discrete crystal oscillator

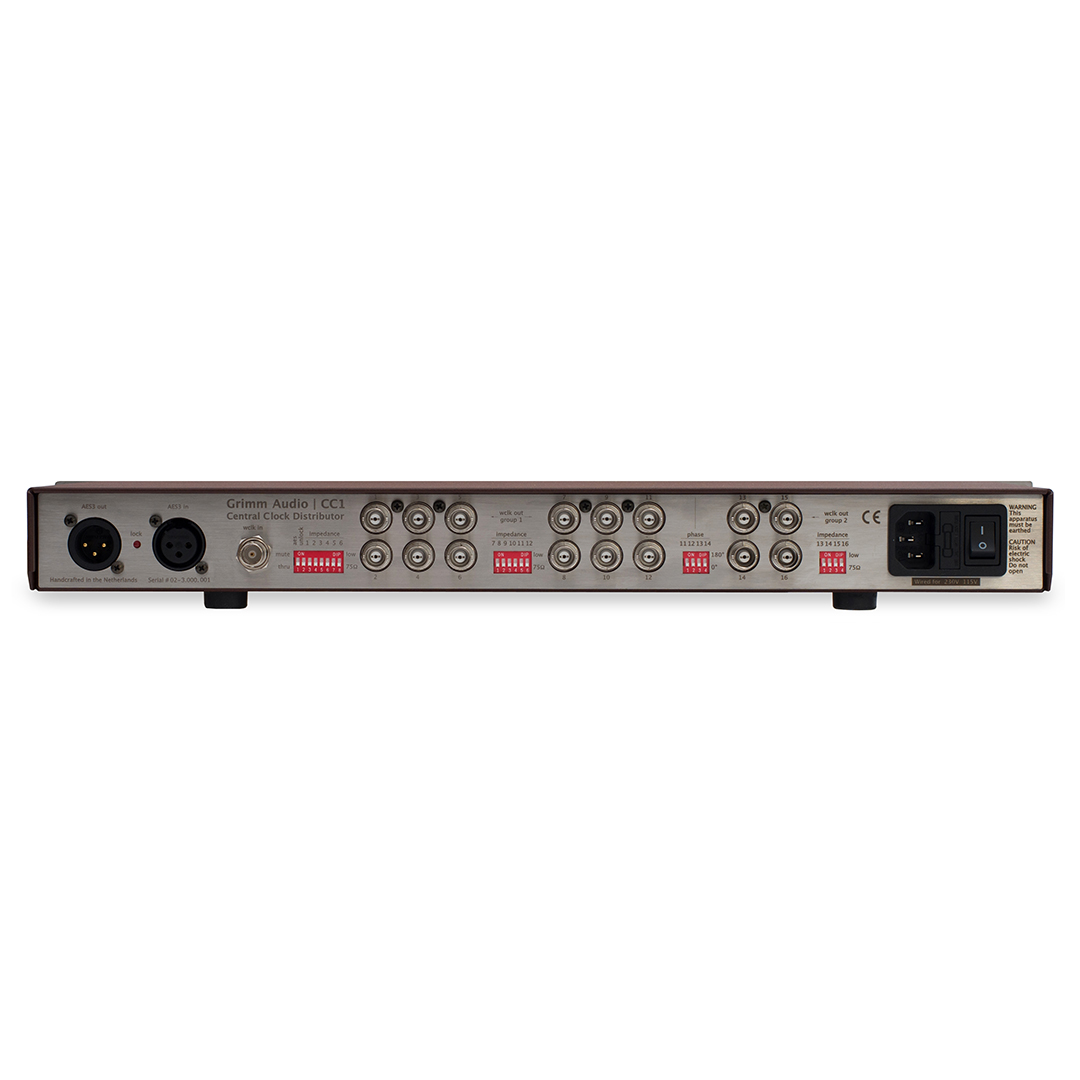

• 16 word clock outputs for flexible distribution
• Sample rates from 44.1 kHz to 192 kHz with selectable 1/2/4 multiples
• AES/EBU reclocker for cleaning digital feeds to DA converters
• PLL offering 90 dB jitter suppression at 10 Hz, improving at 60 dB/decade

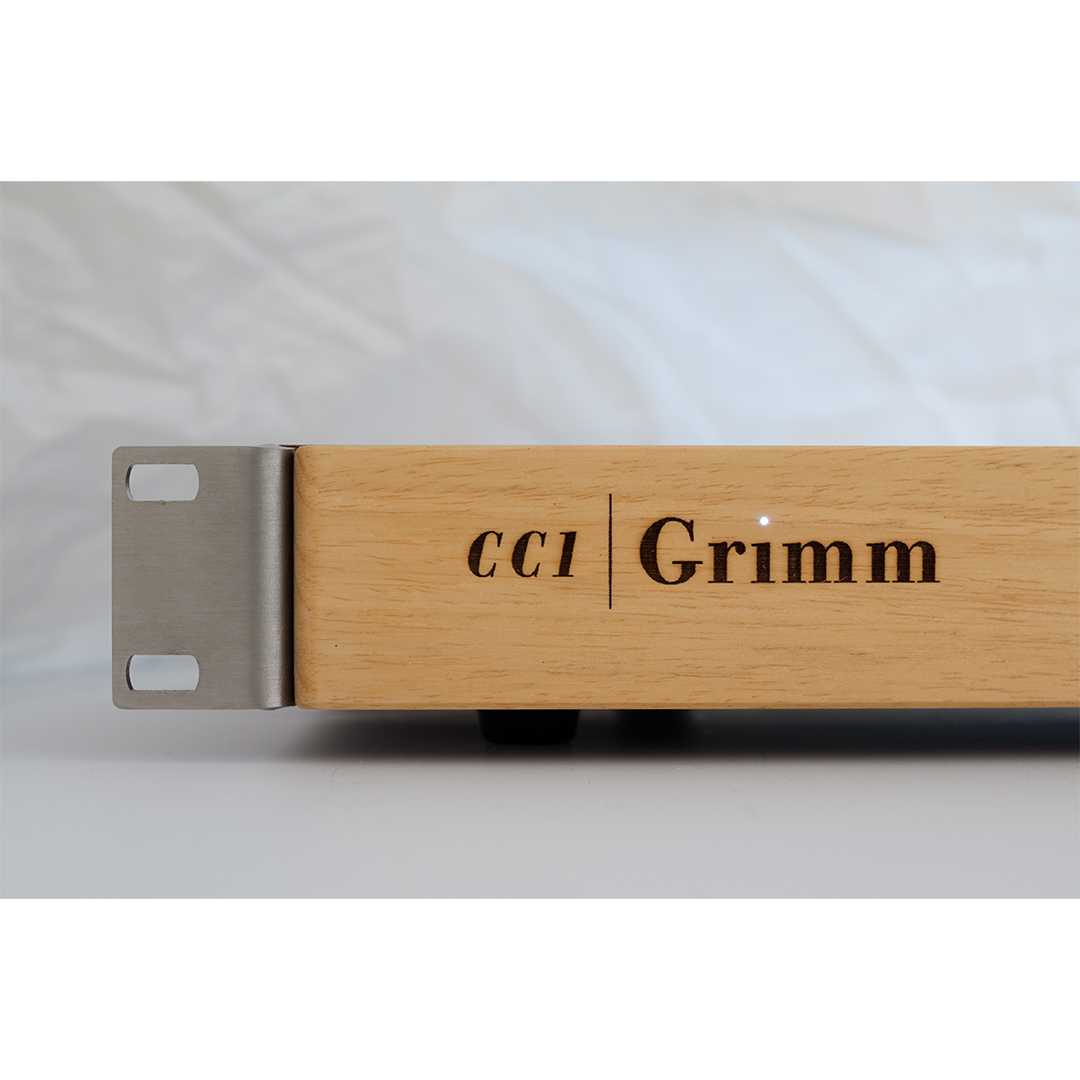

• Striking styling and robust build quality for professional environments
• Optional VCC module for video sync applications

Specifications

• Operating Modes: Master or slave to word clock/AES3 inputs
• Outputs: 16 × Word Clock
• Additional Functions: AES/EBU reclocking
• Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (1/2/4 multiples)
• Oscillator: Redesigned discrete crystal oscillator with superior stability
• PLL Performance: 90 dB jitter suppression at 10 Hz; improves 60 dB/decade
• Applications: Recording, mastering, broadcast, and digital playback systems
• Video Sync: Supported via optional Grimm VCC
