Grimm Audio LS1a Active Loudspeaker

The Grimm Audio LS1a delivers the acclaimed performance of the LS1 series at a more accessible price point, while retaining the core design philosophy of full-system integration. By combining DSP, conversion, amplification, and carefully engineered cabinet design into one system, the LS1a ensures extremely low distortion, linear phase and amplitude response, and reference-level accuracy across the frequency range. This approach allows Grimm Audio’s expertise in circuit design and component selection to be fully realized, resulting in a monitor that offers true transparency for critical listening, mixing, and mastering.

To achieve its lower cost, the LS1a uses a non-magnesium woofer, lighter foot plate, and lacquered cabinet, while omitting some labor-intensive modifications and individual acoustic calibration found in the flagship LS1. Even so, the LS1a maintains the essential qualities that define the LS1 series: precision, neutrality, and a design that minimizes wall reflection interference. Connections include analog and three digital AES/EBU inputs, with an optional USB interface for direct computer playback. Convenient system control is available via the LS1r remote or Grimm’s MU1 music player.

As a full-range two-way system, the LS1a performs at a true reference level. When paired with an LS1s or SB1 subwoofer, it extends into a low-distortion three-way configuration capable of handling all music styles and room sizes. The LS1a is an ideal solution for artists, engineers, and music lovers seeking uncompromising sound quality at a reduced cost of entry.

Key Features

• Affordable LS1-series active loudspeaker with core reference-level qualities
• Integrated DSP, conversion, amplification, and cabinet design for optimal transparency
• Non-magnesium woofer, lighter foot plate, and lacquered cabinet for reduced cost
• Unidirectional response down to 250 Hz with controlled off-axis behavior
• DSP-controlled frequency curve with low distortion and linear amplitude/phase response
• Analog and three digital AES/EBU inputs; optional USB audio interface
• Filtered analog subwoofer output for integration with LS1s or SB1 subwoofers
• Remote volume and source control via LS1r controller or MU1 music player
• Super low-distortion NCore Class-D power amplification
• 5-year limited warranty

Specifications

• System Type: Active two-way loudspeaker
• Drivers: Non-magnesium woofer, dome tweeter
• Directivity: Unidirectional to 250 Hz with smooth off-axis response
• Amplification: NCore Class-D power amplifiers
• DSP Functions: Frequency curve control, linear phase and amplitude correction via Computer Aided Calibration

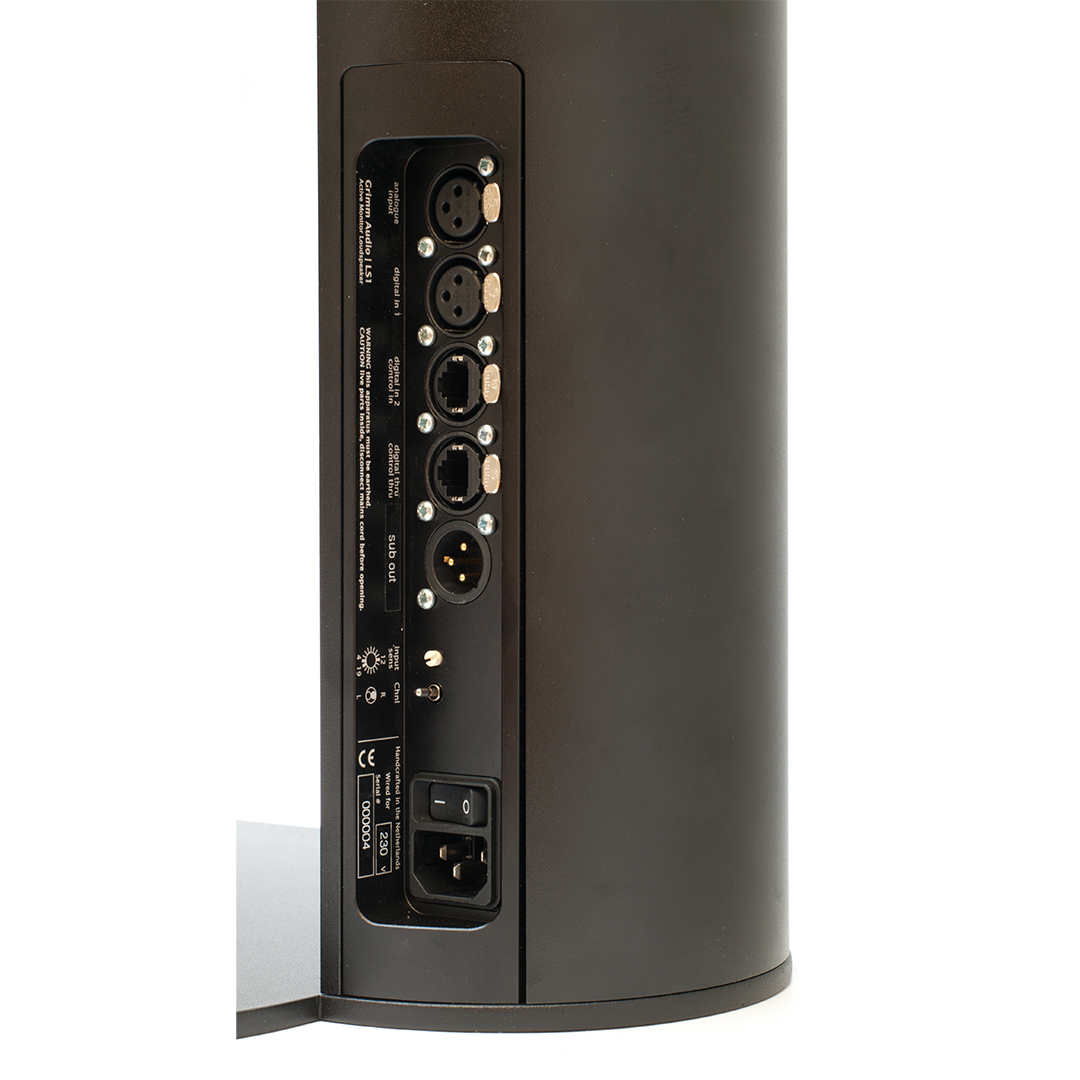

• Inputs: Analog line input, three digital AES/EBU inputs; optional USB audio interface
• Outputs: Filtered analog subwoofer output (compatible with LS1s or SB1)
• Control: Remote control via LS1r controller or MU1 music player
• Design: Compact form factor with lacquered cabinet and lighter foot plate; designed for close-to-wall placement
• Warranty: 5-year limited
