Harrison Audio 32Classic MS Mix Strip

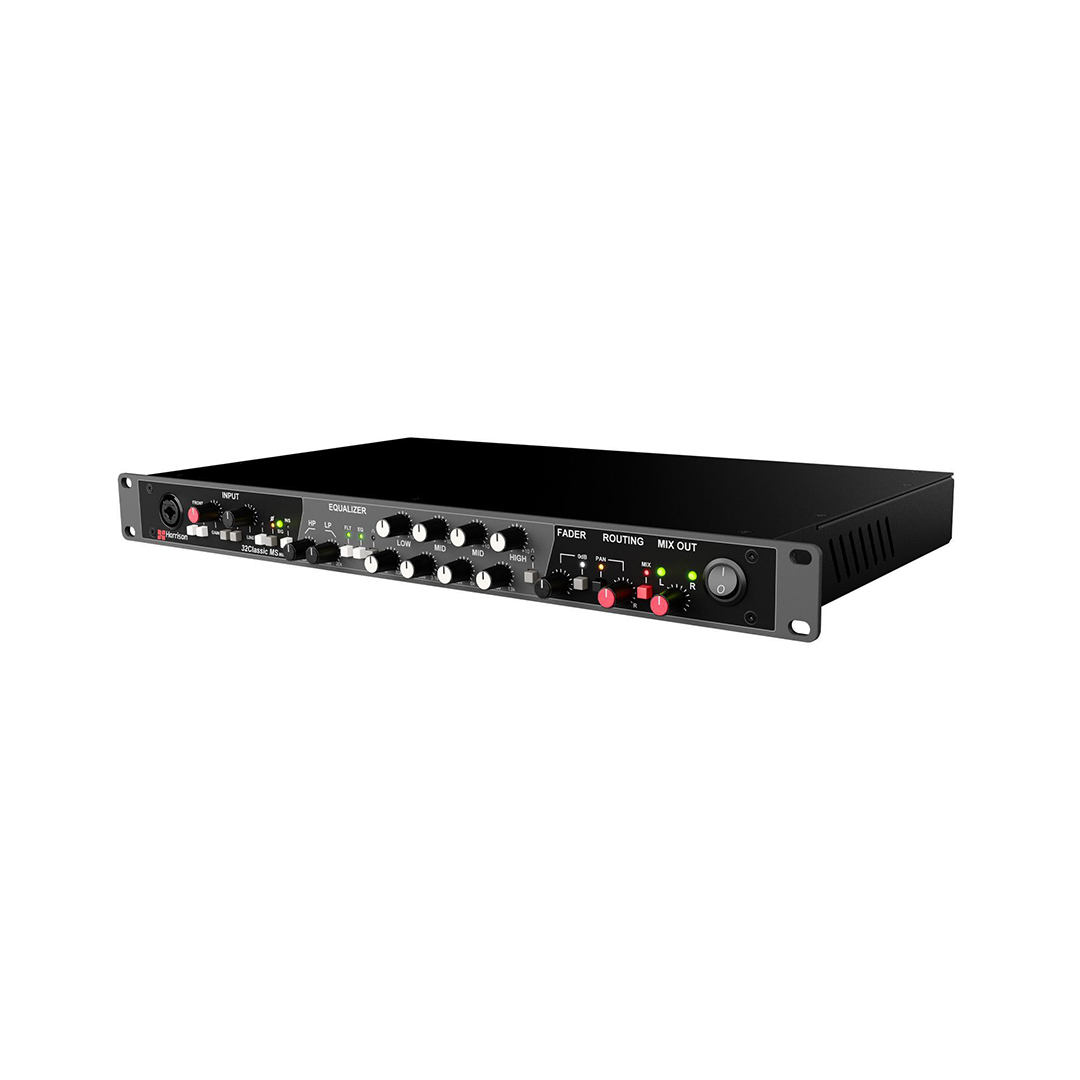

The Harrison Audio 32Classic MS is a premium 19” rackmount analog channel strip that delivers the legendary Harrison console sound in a compact format. Featuring a transformer-coupled mic preamp, musical high-pass and low-pass filters, and the iconic 4-band parametric EQ, the 32Classic MS brings the sonic character of the Harrison 3232 and 32Classic consoles to any studio setup. With a flexible input section, hybrid workflow capabilities, and an integrated stereo mixbus for cascading multiple units, the 32Classic MS is ideal for engineers looking to build out a tracking or mixing rig with authentic Harrison tone.

Key Features

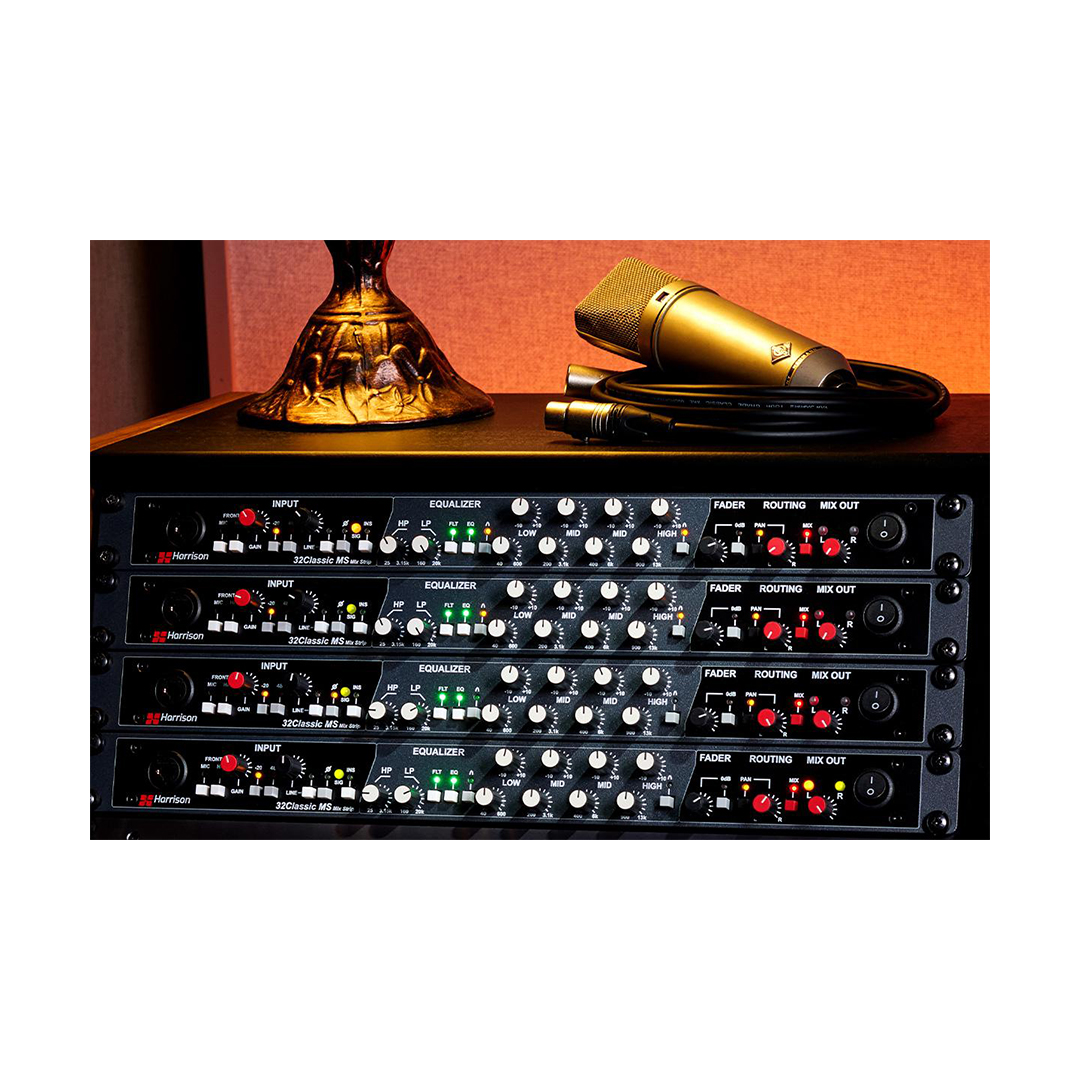

• Transformer-coupled mic preamp with Jensen JT-MB-CPCA transformer

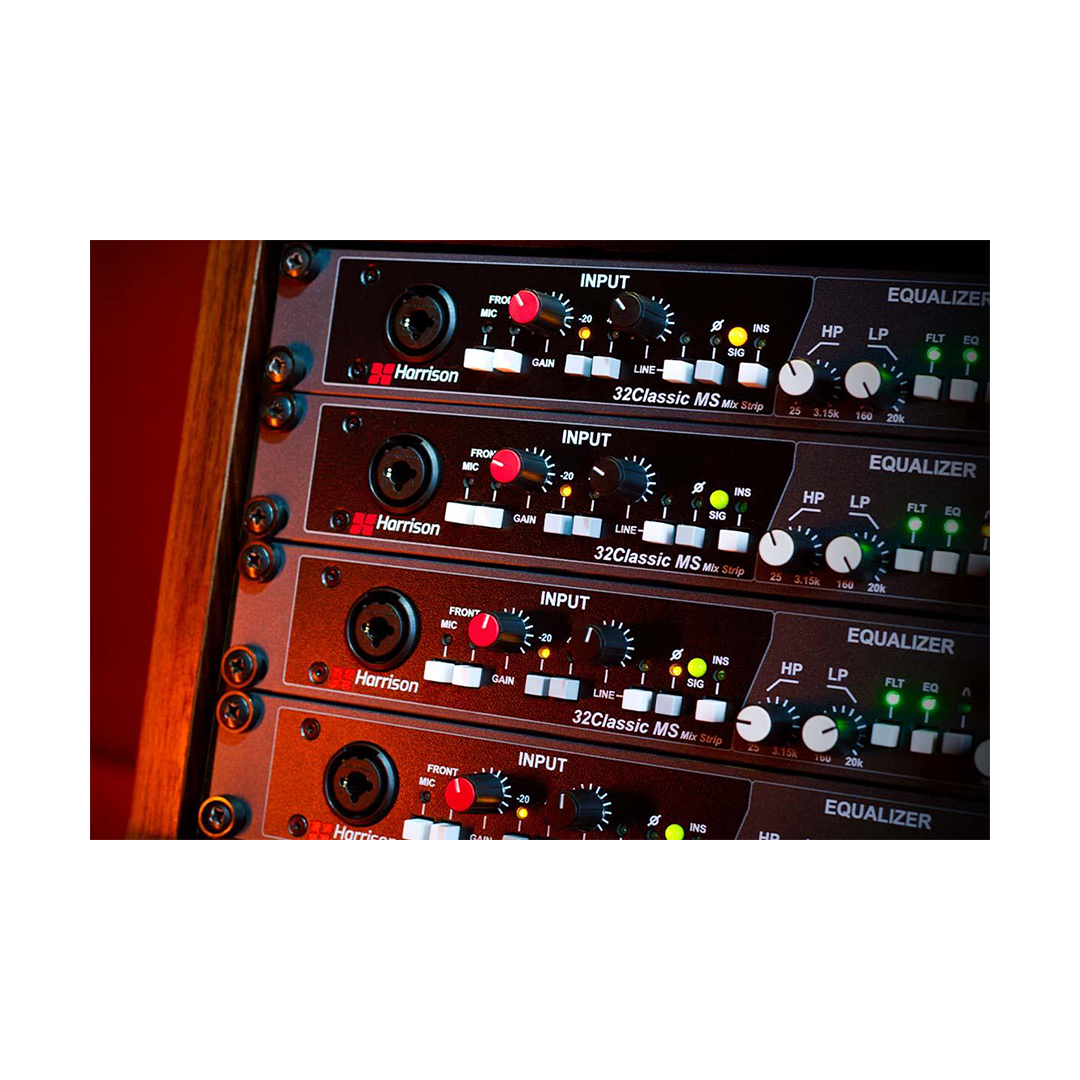

• Dedicated mic and line XLR inputs with front-panel Instrument/Hi-Z option
• 48V phantom power, -20 dB pad, phase reverse, and tri-color LED metering
• Legendary 4-band parametric EQ from the Harrison 32Classic console
• Characterful high-pass and low-pass filters with 3 dB resonant peak

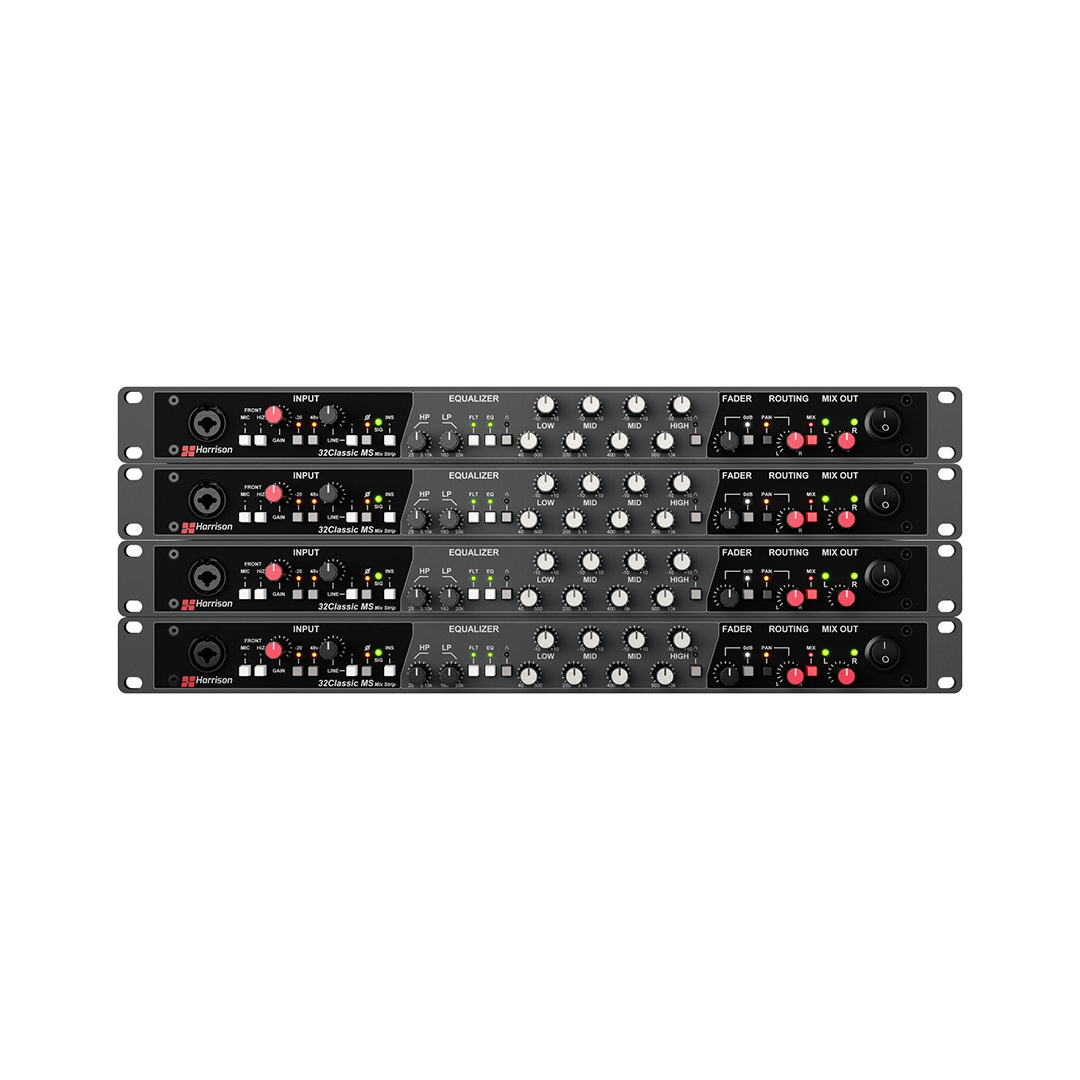

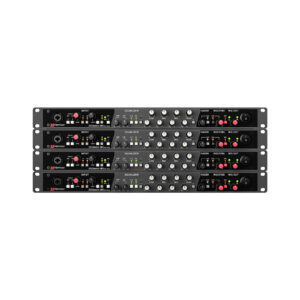

• Integrated stereo mixbus for summing multiple units

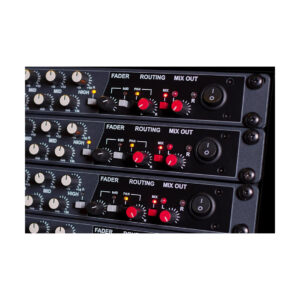

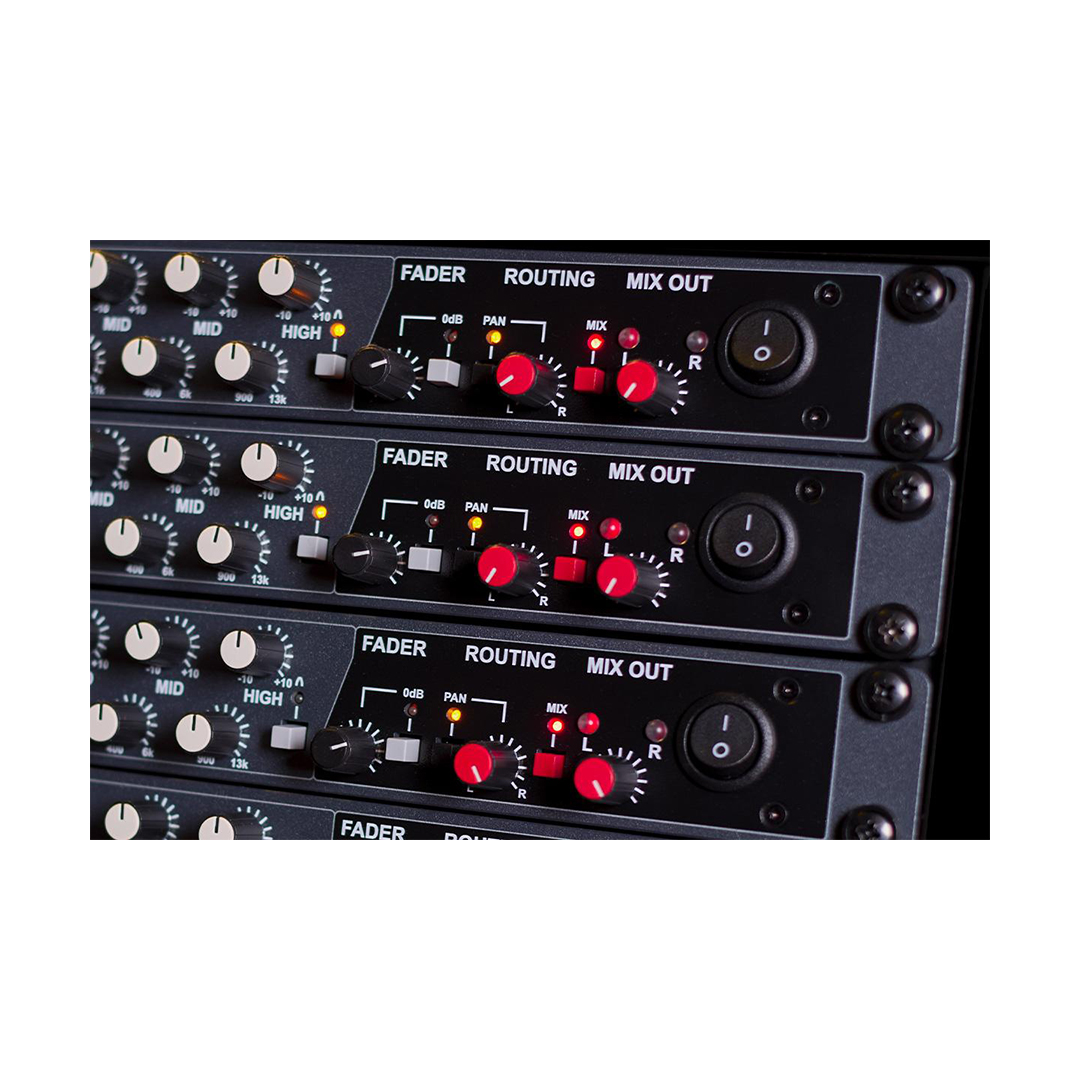

• Fader and pan controls with 0 dB Fader Bypass for hybrid setups
• Modular design ideal for sidecar configurations and mobile rigs

Specifications

• Mic Preamp Gain: Up to 70 dB
• High-Pass Filter: 25 Hz to 3.1 kHz with 3 dB peak
• Low-Pass Filter: 160 Hz to 20 kHz
• EQ: 4-band parametric with proportional Q design

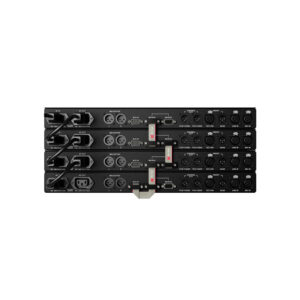

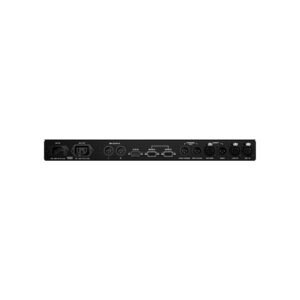

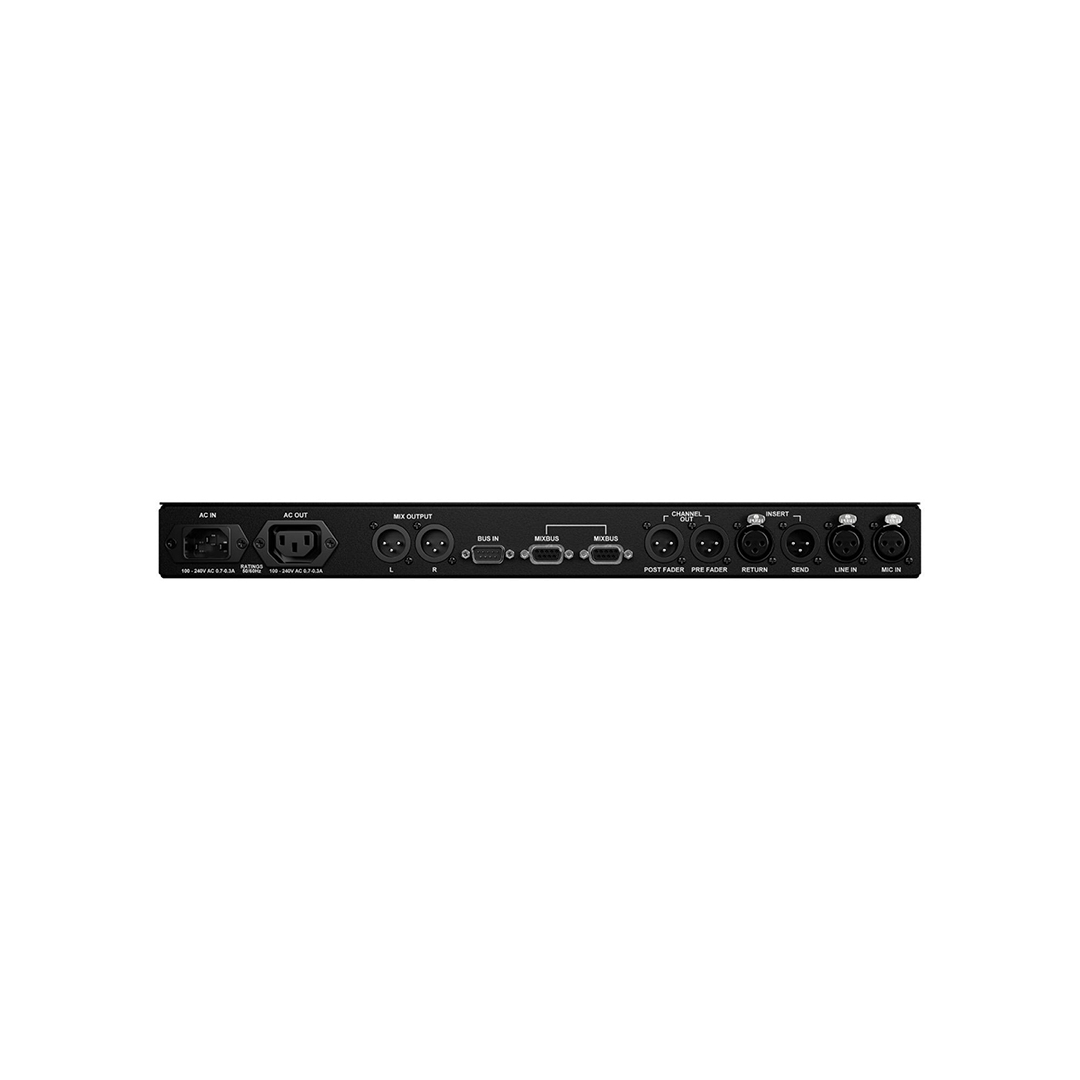

• Inputs: Rear-panel XLR (Mic & Line), Front-panel combo (Hi-Z & Mic)
• Mixbus: Rear-panel summing connectors with Fader/Pan control
• Format: 19″ rackmount
