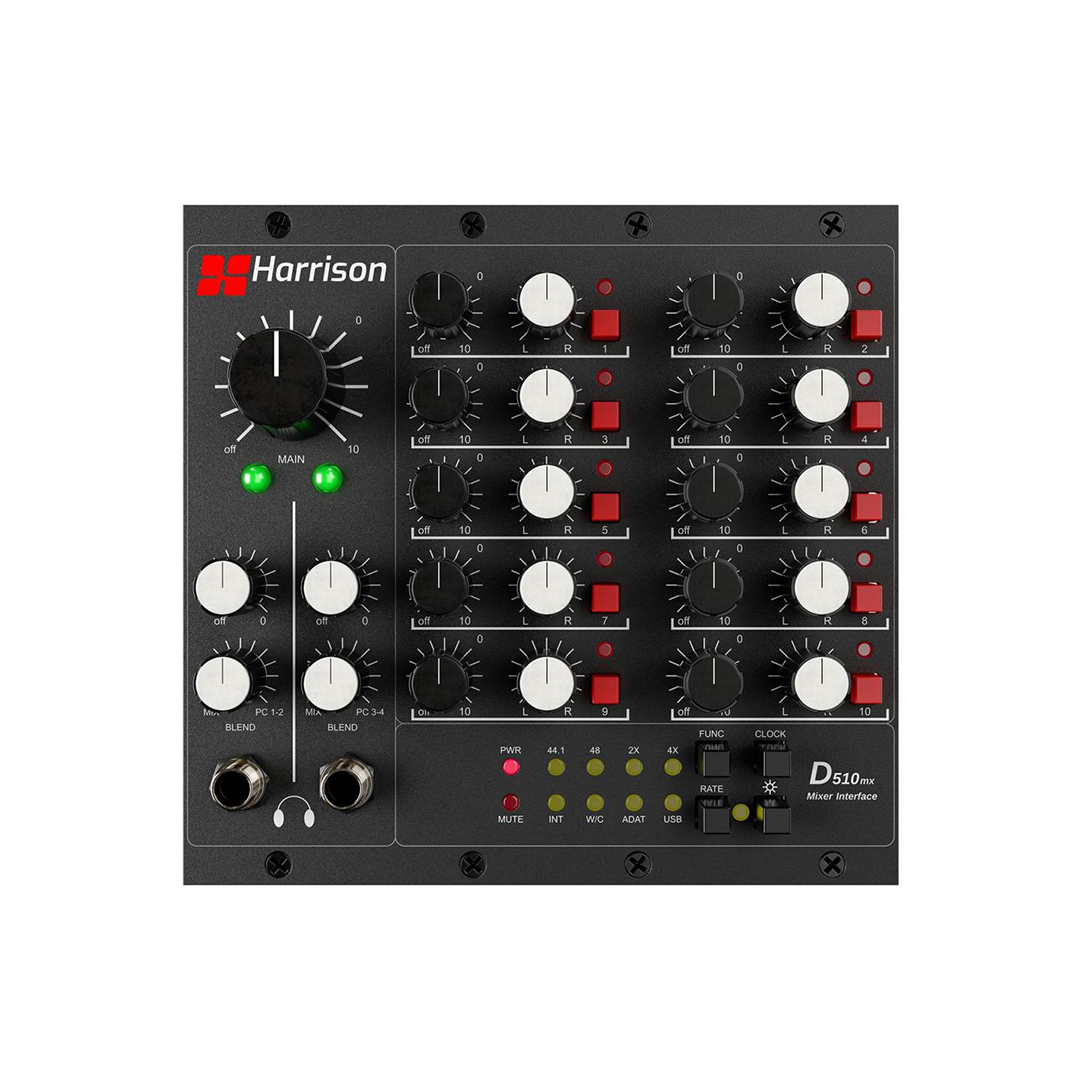

Harrison Audio D510mx Mixer Module

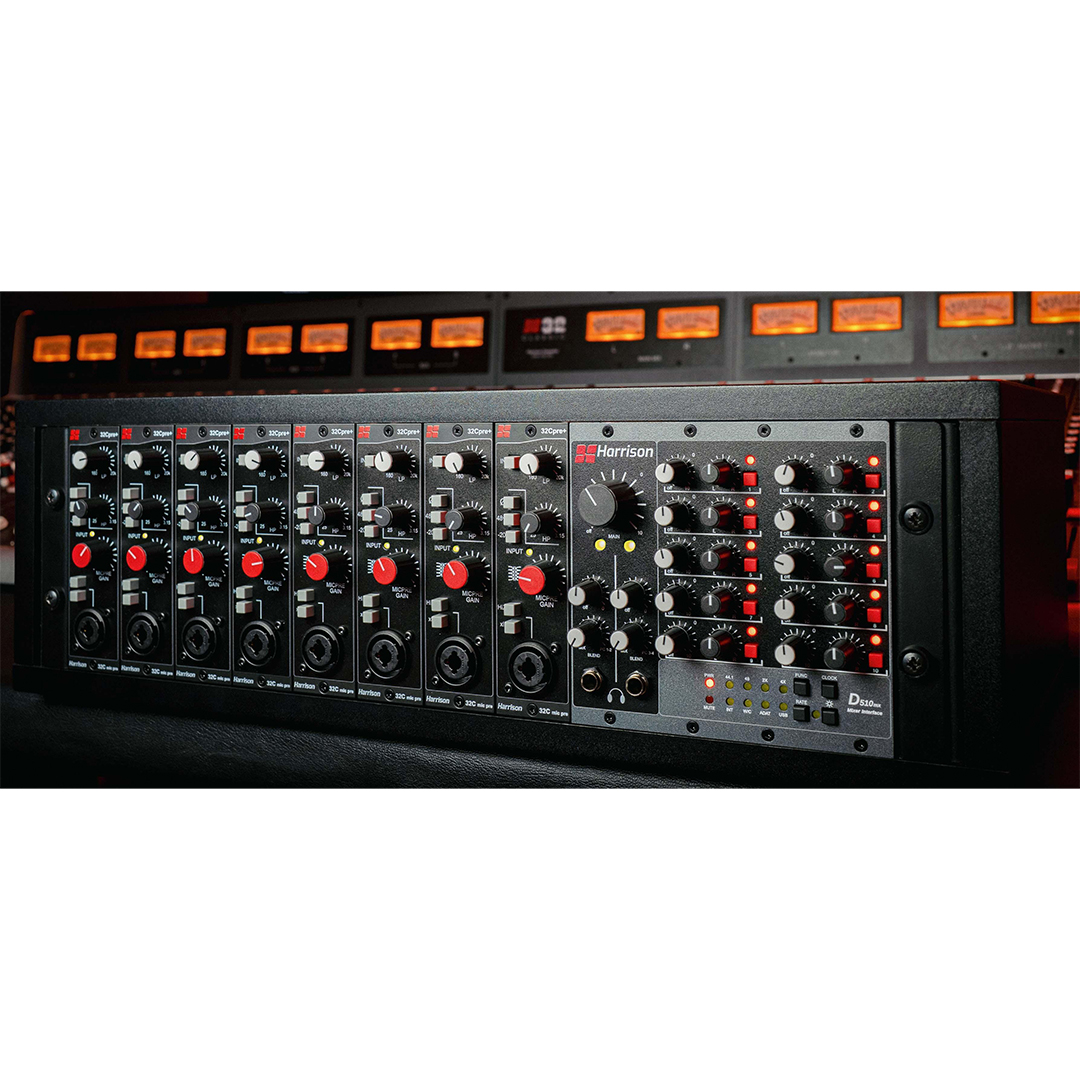

The Harrison Audio D510mx is a 10×2 analog mixer module designed to transform the Harrison D510r 500 Series rack into a powerful and flexible summing mixer. Occupying two slots in the D510r, the D510mx provides stereo mixdown capabilities from the remaining eight module slots, plus two additional analog inputs. With level and pan controls on each channel, dual headphone outputs, and compatibility with optional Dante and USB interface cards, the D510mx brings the iconic Harrison summing sound to portable and hybrid studio workflows.

Key Features

• 10×2 analog summing mixer module for Harrison D510r 500 Series rack
• Level and pan controls for each of the 8 assignable 500 Series slots
• Supports analog inputs from slots 9 and 10 for full 10-channel mixing
• Dual independent headphone outputs with mix-to-PC blend control
• Dedicated main stereo mix output level control
• Compatible with optional D510dante and D510usb interface cards for hybrid workflows
• Delivers the legendary depth and musicality of Harrison analog summing
• Ideal for studio summing, mobile rigs, or compact analog mixing setups

Specifications

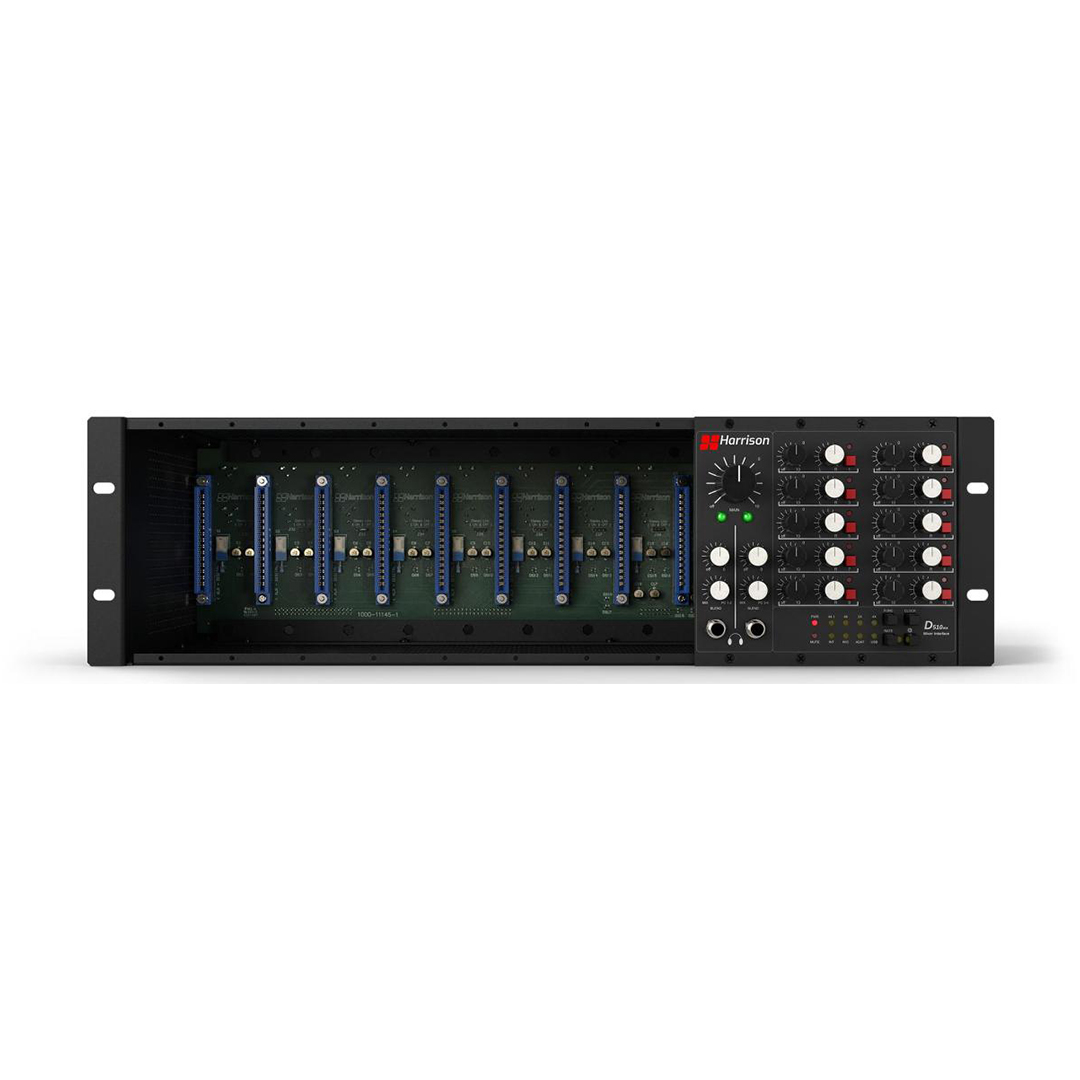

• Module Format: 500 Series (occupies 2 slots in D510r)
• Mix Channels: 10 total (8 from 500 Series modules + 2 analog inputs)
• Controls: Level, Pan, Headphone Blend, Main Mix Out
• Headphone Outputs: 2 x independent, with analog and PC blend capability
• Compatibility: Harrison D510r rack, D510dante, D510usb
• Rack Size Requirement: 3U when paired with D510r rack
